PUBLIC VIEW MONITOR
MODEL: APVM121W
APVM127W
USER's MANUAL
© 2015 Atherton Electronics Corp. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APVM121W and is the answer not in the manual?

Questions and answers

Summary of Contents for Atherton APVM121W

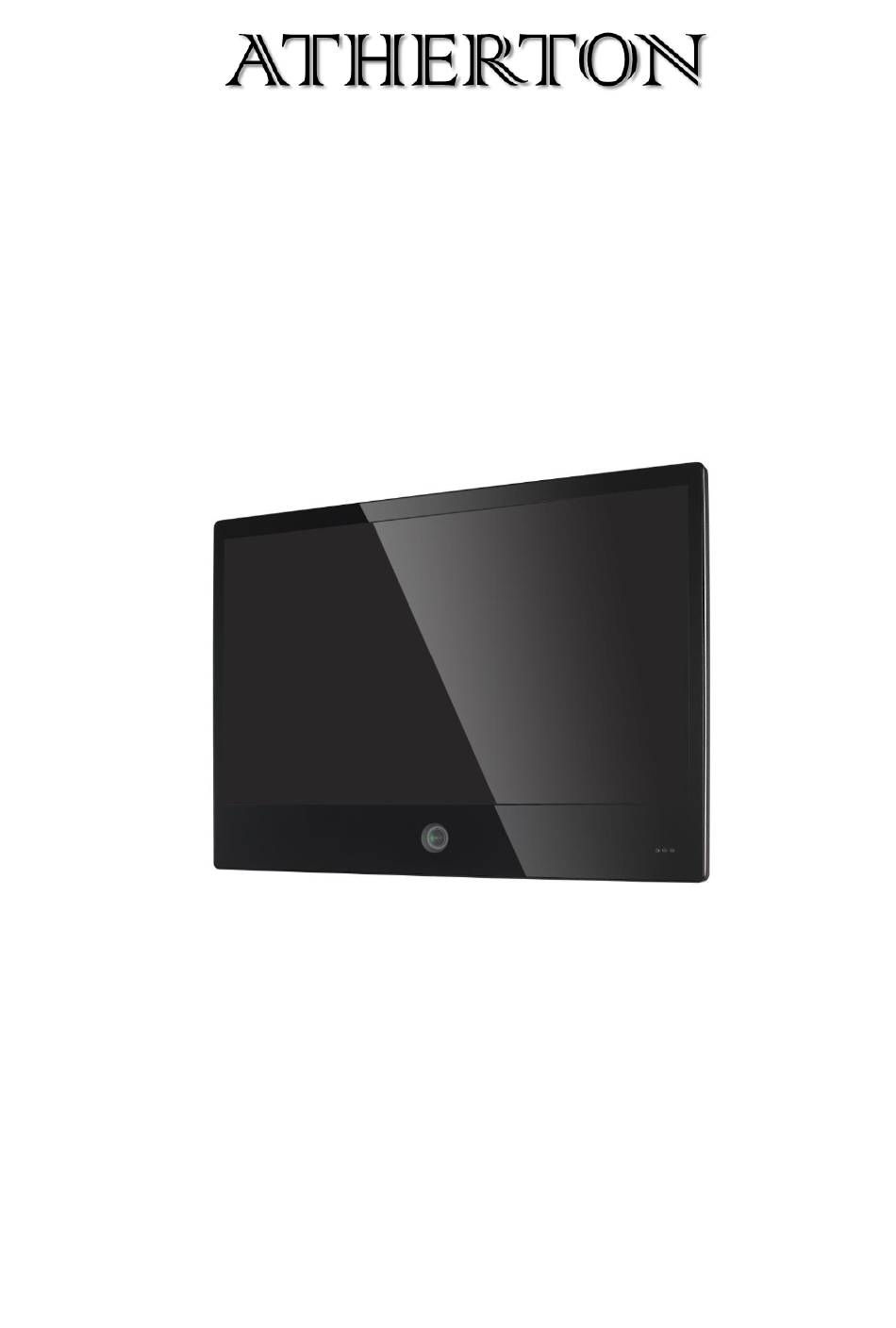

  • Page 1 PUBLIC VIEW MONITOR MODEL: APVM121W APVM127W USER’s MANUAL © 2015 Atherton Electronics Corp. All rights reserved.
  • Page 2: Table Of Contents

    Contents CE INFORMATION…………………………………………..……….d SAFETY PRECAUTIONS……………………………………..……..d BEFORE YOU BEGIN………………………..……………….……...e Scope……………………………………………………….…………..1 Functional Specification…………………………………………….2 Power Supply Video Characteristics D-SUB Input Controls: Back Push Buttons HDMI Inputs Audio Input Environmental EDID Controls and Indicators…………………………………..……...…3 Connectors Camera Lens Adjust Remote Control Accessories OSD Menu…………………………………………………..….….……7 HOT KEY MAIN MENU MAIN ADJUST COLOR ADJUST...
  • Page 3 Regulatory Agency…………………………………………………22 CE COMPLIANCE : EN55022 Class B/ EN55024 FCC Compliance: FCC Rules and Regulations Reliability………………………………………………….………….22 Mean Time Between Failure (MTBF) Mechanical……………………………………………………………23 VESA mounting...
  • Page 4: Ce Information

    CE INFORMATION The product must be installed according to the currently valid installation regulations for EMC to guarantee the designed use and to prevent EMC problems. The device supplied with this manual is according to the EC, EMC Directive, 2004/108/EC & LVD 2006/95/EC SAFETY PRECAUTIONS 1.
  • Page 5: Before You Begin

    BEFORE YOU BEGIN Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 6 All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive: 2011/65/EU, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 7: Scope

    Scope This document is used to define the performance of the LCD Public View Monitor (PVM) series. The system supports video and PC inputs, as well as from the built-in camera. In video mode, the display automatically detects NTSC and PAL signals. The On Screen Display (OSD) menu makes the system easy to operate.
  • Page 8: Functional Specification

    Functional Specifications Power Supply PVM Monitor Power Requirements: 21.5” Voltage: DC 12V-24V Wide Range Current: 2.6A max (12Vdc) or 1.3A max (24Vdc) 27” Voltage: DC 12V-24V Wide Range Current: 3.6A max (12Vdc) or 1.8A max (24Vdc) Use only a PSU rated at 12Vdc, with a minimum current rating of 2.6A/3.6A; or 24Vdc, with a minimum current rating of 1.3A/1.8A Video Characteristics Composite Video (CVBS): 1.0Vp-p (0.5 –...
  • Page 9: Controls And Indicators

    Controls and Indicators Connectors E F G H I DC In USB HDMI D-SUB BNC In BNC Out Camera Out Audio In SD Card Power Video – DC 12V-24V IN – HDMI – USB connector – D-SUB – BNC connector, CVBS input –...
  • Page 10: Camera Lens Adjust

    Camera Lens Adjust W: Adjust Camera zoom to Wide. T: Adjust Camera zoom to Tele. N: Adjust Camera Focus to Near. F: Adjust Camera Focus to Far. Control buttons (on the back)
  • Page 11 A. “ ”Source button  Press the button to show source menu. Select VGA , HDMI, CVBS, CAMERA, USB and SD-CARD input. B. “ ”Down buttons  Press the buttons to scrolling the cursor to desired function.  Press the buttons to decrease the value of selected function in sub OSD menu. C.
  • Page 12: Remote Control

    Remote Control Monitor and MMP Control: Power – Power On or Off the PVM monitor MUTE – Mute the audio CAM – Select Camera source VIDEO – Select Video source PC – Select VGA source HDMI – Select HDMI source MMP –...
  • Page 13: Osd Menu

    OSD Menu HOT KEY VOLUME:Press button to adjust the volume. KEY LOCK:Press remote control KEY LOCK to enable this function. KEY UN-LOCK:Press remote control KEY LOCK again to disable this function.
  • Page 14: Main Menu

    MAIN MENU Press MENU button to enter the sub-menu  Main Adjust  Color Adjust  Scan Setting  Image Adjust  Information  Language  Setup Menu  PVM Function  Recall  Audio Control  Exit Press button to select an icon, then press MENU button to confirm the selection.
  • Page 15: Main Adjust

    MAIN ADJUST Press MENU button to enter the sub-menu 1. Press button to select an icon 2. Press MENU button to confirm the selection. 3. Press button to adjust the value 4. Press MENU button to return VIVID MODE:Select Vivid mode BRIGHTNESS:Adjust the brightness value CONTRAST:Adjust the contrast value SHARPNESS: Adjust the sharpness...
  • Page 16: Color Adjust

    COLOR ADJUST Press MENU button to enter the sub-menu 1. Press button to select an icon 2. Press MENU button to confirm the selection. 3. Press button to adjust the value 4. Press MENU button to return. COLOR TEMP:Select the color temperature USER/ 6500K / 7500K / 9300K RED: Adjust the RED value under USER setting GREEN:Adjust the GREEN value under USER setting BLUE:Adjust the BLUE value under USER setting...
  • Page 17: Scan Setting

    SCAN SETTING Press MENU button to enter the sub-menu 1. Press button to select an icon 2. Press MENU button to confirm the selection. 3. Press button to adjust the value 4. Press MENU button to return. ASPECT RATIO:Select aspect ratio 4:3 or 16:9 UNDERSCAN:Select underscan ON/OFF/USER H.START:Adjust horizontal start value under USER setting H.SIZE:Adjust horizontal size value under USER setting...
  • Page 18: Image Adjust (Vga Only)

    IMAGE ADJUST (VGA ONLY) Press MENU button to enter the sub-menu 1. Press button to select an icon 2. Press MENU button to confirm the selection. 3. Press button to adjust the value 4. Press MENU button to return AUTO ADJUST:Press MENU buttons to auto adjust Image Settings H.
  • Page 19: Information

    INFORMATION Press MENU button to enter the sub-menu LANGUAGE Press MENU button to enter the sub-menu 1. Press button to select an icon. 2. Press MENU button to confirm the selection and return.
  • Page 20: Setup Menu

    SETUP MENU Press MENU button to enter the sub-menu 1. Press button to select an icon 2. Press MENU button to confirm the selection. 3. Press button to adjust the value 4. Press MENU button to return OSD TIMEOUT:Adjust the OSD timeout OSD BLENDING:Select OSD blending LOW/MIDDLE/HIGH/OFF BACKLIGHT CONTROL:Select backlight control TIMER/SENSOR/OFF BACKLIGHT TIMER:Set backlight timer 10min~120min, 10min increment/click...
  • Page 21: Pvm Function (Video Only)

    PVM FUNCTION (VIDEO ONLY) Press MENU button to enter the sub-menu 1. Press button to select an icon 2. Press MENU button to confirm the selection. 3. Press button to adjust the value 4. Press MENU button to return DISPLAY MESSAGE:Set the warning message ON or OFF WARNING MESSAGE:Select the warning message (0~5, USER).
  • Page 22: Recall

    4. Main source HDMI, Motion source (Camera) 5. Main source CVBS, Motion source (Camera) MOTION SENSITIVITY : In Motion mode, Motion sensitivity can select LOW, MIDDLE or HIGH. MOTION DURATION : In Motion mode, Motion duration can setting to 10, 20, 30, 40, 50 or 60sec.
  • Page 23: Multi Media Player Osd Menu

    Multi Media Player OSD Menu The Multi Media Player (MMP) allows viewing of digital photo, music, movie and text from USB or SD card. It is operated by Remote Control NOTE: When press on “MMP” button, the Multi Media Player to read external memory device on USB first, the USB icon will shows on left-top corner of screen;...
  • Page 24: Camera Osd Menu

    Camera OSD Menu The Camera OSD is controlled by Remote Controller. The definition of Remote Controller is defined as below. REMOTE CONTROL Camera Control: 1. Press Menu button to enter to Camera OSD 2. Press Enter button to confirm the selection 3.
  • Page 25 OSD MENU Press the remote control MENU button to display MENU. You can set the FOCUS ADJ, LENS, EXPOSURE, BACKLIGHT, DAY&NIGHT, WHITE BAL, IMAGE, DNR, SPECIAL and SYSTEM to ensure the image quality. LENS: According to the lens type, you can enter the submenu and setup the MODE.
  • Page 26 BACKLIGHT OFF (HLC, BLC, WDR, OFF) Press the MENU button into the submenu, and adjust each mode. DAY&NIGHT Press the MENU button into the submenu, and adjust the DAY&NIGHT, and adjust MODE, IR-LED, ANTI-SAT, AGC… etc. WHITE BALANCE AUTO (AUTOEXT, PRESET, MANUAL) Press the MENU button into the submenu to select desired mode.
  • Page 27 IMAGE: Press the MENU button into the IMAGE submenu, can adjust SHARPNESS, GAMMA, COLOR GAIN, MIRROR and FLIP. SPECIAL: Press the MENU button into the SPECIAL submenu to adjust D-ZOOM (1.0x (1.0x – 8.0x) ACE (OFF, LOW, MIDDLE, HIGH) DEFOG (OFF, ON (AUTO, MANUAL)) SHADING (OFF, ON) PRIVACY (OFF, ON) INTELLIGENT (MOTION, ALARM, QUICK ZOOM)
  • Page 28: Regulatory Agency

    Regulatory Agency Safety Approvals This series design shall meet the standards of the following domestic and foreign agencies: CE LVD : EN60950-1 EMI/EMS Emission Approvals This series design shall meet following EMI/EMS specifications: FCC Compliance: FCC Rules and Regulations, Part 15, subpart B, Class B. CE COMPLIANCE: EN55022 Class B.
  • Page 29: Mechanical

    Mechanical Cabinet Material: Metal. Finish: Black Dimensions of APVM121W (21.5” PVM) Unit: inch Net Weight: 5.95Kg /13.09 lb, Shipping Weight: 7.56Kg / 16.64b Packing Dimension (L x W x H): 598x125x466mm / 23.54 x 4.92x 18.35 inch...
  • Page 30 Dimensions of APVM127W (27” PVM) Unit: inch Net Weight: 7.95Kgs /17.49 lbs Gross Weight: 10.5Kgs / 23.10lbs Packing Dimension (L x W x H): 732 x 125 x 533mm / 28.82 x 4.92x 20.98 inch...
  • Page 31 VESA mounting Model VESA Spec. of screw hole APVM121W 100x100 mm M4 x 5mm 200x100 mm APVM127W 100x100 mm M4 x 5mm 200x100 mm  Use appropriate screws to mount VESA bracket (Screw hole: M4 x 5mm), failure to do so may cause serious injury.
  • Page 32 Atherton Electronics Corp. www.athertonelectronics.com 29350 Hunco Way Ste. A, Lake Elsinore, CA 92530 © 2015 Atherton Electronics Corp. All rights reserved.
