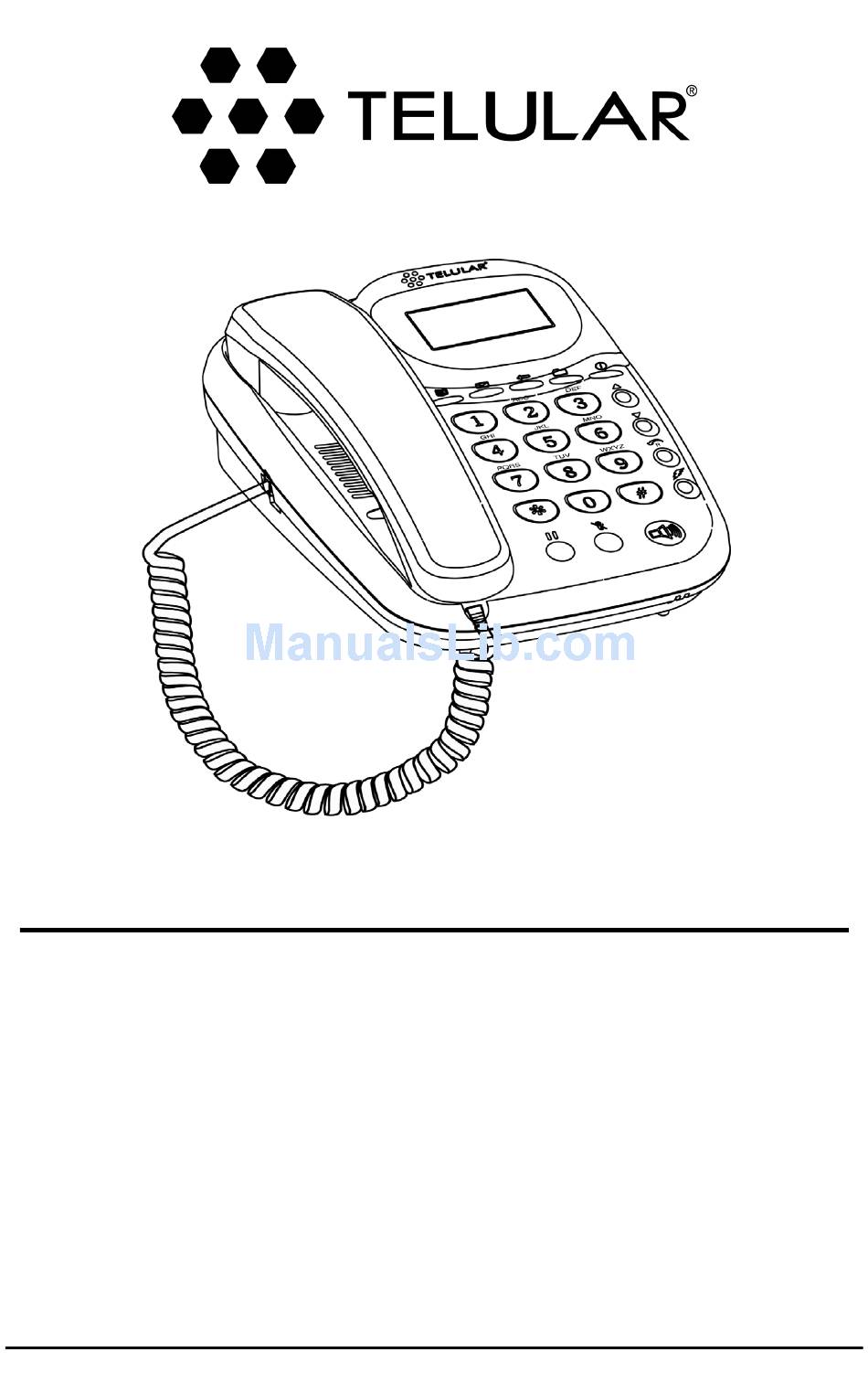

- Page 1 SX6P-200C CDMA ® HONECELL Fixed Cellular Phone ANUAL 02/21/05 Part Number 56033201...
-
Page 3: Quick Connection Guide
Spike Antenna LIST OF COMPONENTS Phonecell Desktop Phone Before installing your Phonecell check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately. Phonecell SX6P CDMA ® Phonecell SX6P-200C Fixed Cellular Phone SX6P ®... -
Page 4: Sx6P Menu Structure
SX6P MENU STRUCTURE Menu Phonecell SX6P CDMA ® 1. Phone Book View Edit Erase 3. Time/Alarm Alarm Time Format Date Format 5. Phone Settings Banner LCD Contrast DTMF Length Key Volume Auto Send Time Freq Dial Num Language Dial Tone Type Selftest Cycle 7. -
Page 5: Safe Operation Instructions
TERMS AND CONDITIONS FOR USE OF PHONECELL These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. -
Page 6: Table Of Contents
Quick Connection Guide ...i List of Components...i SX6P Menu Structure ...ii Safe Operation Instructions ...iii Important Notices ...iii SX6P Setup ...1 RUIM Card Installation (RUIM Model Only) ...1 Battery Installation ...2 Battery Operation ...2 Location and Setup...2 Connecting the Handset ...3 Wall Mounting ...3 Connecting the SX6P to AC Power ...4 RUIM Usage (RUIM Models Only) ...5... - Page 7 Phone Settings ...15 Banner ...15 LCD Contrast ...15 DTMF Length...15 Key Volume ...15 Auto Send Time ...15 Frequently Dialed Number...15 Change Language Displayed On LCD ...16 Dial Tone Type ...16 Self Test Cycle ...16 Phone Info ...16 My Phone # (display only) ...16 Software Version Information ...16 Tech Mode ...16 Security ...17...
-
Page 9: Sx6P Setup
SX6P Setup RUIM Card Installation (RUIM Model Only) Consult your service provider to determine if your unit requires the use of a RUIM (Removable User Identity Module). If it is a RUIM model, your SX6P will only be able to place emergency calls until you install a RUIM card. -
Page 10: Battery Installation
- see Figure 3 . Press the battery access door tabs and remove the battery access door. Install the Telular rechargeable battery pack into the battery pack area and connect wires. Reinstall the battery access door using the screw - see Figure 4 . -
Page 11: Connecting The Handset
Connecting the Handset Before you use can use the SX6P, you must connect the handset cable. Connect the handset cable to the phone jack - see Figure 7 . Connect the handset cable to the handset - see Figure 7 . Phone jack Handset cable Figure 7 –... -
Page 12: Connecting The Sx6P To Ac Power
Install the screws (not supplied) into the wall, leaving a gap of approximately 3 mm (1/8 inches) between the screw head and the wall. Align the mounting holes with the screws and mount the SX6P onto the screws - see Figures 10 and 11 . -
Page 13: Ruim Usage (Ruim Models Only)
RUIM Usage (RUIM Models Only) Your service provider may require you to install a RUIM (Removable User Identity Module) in your SX6P for it to operate normally (see RUIM Card Installation on page 1 for details). Without a RUIM, these SX6P models will reject incoming calls and allow only emergency outgoing calls. Once a RUIM-using SX6P is operating normally, you can use it to set its RUIM to require a PIN (Personal Identification Number, also called Cardholder Verification, or CHV), not require a PIN, or change the existing PIN. -
Page 14: Getting To Know Your Sx6P
Getting to Know Your SX6P Function Keys Message - To access voicemail or to send an SMS (text message). Menu - Used to access phone settings and features. Asterisk/Star Key - Used as a backspace key when entering text. Hold - Used to put the active call on hold or to reactivate an on-hold call. -
Page 15: Lcd Screen Icons
LCD Screen Icons Icons displayed on the LCD screen indicate the features that are in use, the status of the phone, signal strength and battery status - see Figure 14 . Alarm - Indicates that Message - Displays when the alarm feature has a new text or voicemail been set. -
Page 16: Call Functions
Correcting Dialing Errors • To erase one digit, press • To erase all digits, press and hold down Redialing the Last Telephone Number Dialed Pick up the handset or press Press [Redial]. Receiving Calls When there is an incoming call, the SX6P rings, an incoming call notification displays the call type and Caller ID information (if available). -
Page 17: Voicemail Access
Placing a Call on Hold During a call, press LCD display.) To reactivate the call, press 3-Way Calling Contact your service provider regarding the availability of 3-way calling. To perform a 3-way call: Place the first call and wait until it connects. After the first call is connected, dial the second number. -
Page 18: Sending A Text Message
Sending a Text Message Press [Message]. Select 3: Create Message . Select 1: New Message or 2: Sent Messages . Select 1: From Phonebook or 2: Enter Number . (If you select From Phonebook , your phone book entries will be displayed alphabetically. Select an entry and press (If you select Enter Number , use your keypad to enter a number and press Type the message using the keypad. -
Page 19: Phone Book
Phone Book The SX6P can be programmed to store frequently called numbers via an electronic phone book. The SX6P phone book can hold up to 99 entries. Speed Dialing by Location To speed dial a phone book entry: • For entries 1-9 – Lift the handset and hold down the location number until it dials. •... -
Page 20: Editing A Phone Book Entry
Editing a Phone Book Entry Press [Menu] to access the main menu. Select 1: Phone Book . Select 3: Edit . There are two options to locate an entry for editing: Name - View all entries sorted alphabetically. To narrow your search, use your keypad to enter the first letter of the entry you’re looking for (for example, press 5 once to display the “J”... -
Page 21: Viewing Last Call Time
Select 4: Erase History and use the up arrow ( Press [Store] to erase the Call History. Viewing Last Call Time To display the duration of the previous call: Press [Menu] to access the main menu. Select 2: Call History . Select 5: Last Call Time . -
Page 22: Ring / Alert
Ring / Alert The SX6P is capable of supporting multiple ring tones and types of alerts. To adjust these settings, follow these instructions. Ring Tone Press [Menu] to access the main menu. Select 4: Ring/Alert . Select 1: Ring Tone . Use the up/down arrows ( to save. -
Page 23: Phone Settings
Phone Settings Banner The banner is the text displayed on the screen when the phone is not in use. This can be used to personalize your phone. To set your phone’s banner display: Press [Menu] to access the main menu. Select 5: Phone Settings . -
Page 24: Change Language Displayed On Lcd
Change Language Displayed On LCD The SX6P is capable of displaying multiple languages on the LCD screen. Press [Menu] to access the main menu. Select 5: Phone Settings . Select 7: Language . Select the desired setting and press Dial Tone Type Your SX6P can produce the corresponding dial tones for phone systems in several countries. -
Page 25: Security
Security Change Code The lock code is a 4-digit password used to prevent unauthorized access to the phone. This setting allows you to change your phone’s lock code. The default lock code is 0000 . Note: The phone’s default lock code is 0000 . To change your phone’s lock code: Press [Menu] to access the main menu. -
Page 26: Reset Phone
Reset Phone This setting is used to reset the SX6P’s settings to the user default values. Press [Menu] to access the main menu. Select 7: Security . Enter the current lock code. Select 5: Reset Phone . Select RESET and press Hotline Press [Menu] to access the main menu. - Page 27 BONDING AN SX6P TO A RUIM You can bond an SX6P to the RUIM that is inserted in it. Once an SX6P has been bonded to a RUIM, the SX6P will not operate normally with any other RUIM installed in it. It will reject incoming calls and permit only emergency outgoing calls.
-
Page 28: Sx6P Troubleshooting
SX6P Troubleshooting Telephone Service is Not Working (Cannot place or receive calls) • Make sure the SX6P powered on properly. • Make sure any equipment that is externally connected to the SX6P is correctly connected. • Test any externally connected equipment on a known system to verify operation. -
Page 29: Conformance Statements
Part 15 of the FCC rules. Changes or modifications not expressly approved by Telular Corporation will void your authority to operate the equipment per FCC part 15 paragraph 15.21.These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 30: Potentially Explosive Atmospheres
Driving Check the laws and regulations on the use of cellular products in the areas where you drive. Some jurisdictions prohibit your using a cellular device while driving a vehicle. Even if your jurisdiction does not have such a law, we strongly suggest that, for safety reasons, the driver use extreme caution when operating the cellular device while the vehicle is in motion. - Page 31 Patents: Telular Corporation products are protected and manufactured under one or more of the following U.S. patents and related international patents and patents pending relating thereto: 4,658,096; 4,737,975; 4,775,997; 4,868,519; 4,922,517; 5,134,651; 5,361,297; 5,469,494; 5,046,085; 5,715,296. Trademarks: Telular Corporation owns the following registered trademarks: TELULAR and design, TELULAR, CELJACK, MAXJACK, TELCEL, HEXAGON LOGO, PHONECELL, CELSERV, TELGUARD, CPX, and AXCELL.
- Page 32 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Tel: 847-247-9400 • Fax: 847-247-0021 E-mail: support@telular.com http://www.telular.com Part Number 56033201 ©2005 Telular Corporation, all rights reserved.
