- Page 1 Instruction Model IB100 Manual Interface Box YOKOGAWA IM 12B06J09-01E-E 3rd edition...
- Page 2 свържете c най-близкия oфис или en su idioma local, deberá ponerse en contacto представителство на фирма Yokogawa. con la oficina o el representante de Yokogawa más cercano. (CZ) Všechny uživatelské příručky pro výrobky, na něž...
- Page 3 Ja vçlaties saòemt Ex ierîèu zgodnych z wymaganiami ATEX, dostępne dokumentâciju citâ valodâ, Jums ir jâsazinâs ar są w języku angielskim. Jeżeli wymagana firmas Jokogava (Yokogawa) tuvâko ofisu vai jest instrukcja obsługi w Państwa lokalnym ję pârstâvi. zyku, prosimy o kontakt z najbliższym biurem Yokogawy.
-
Page 4: Table Of Contents
2.6 Operation mode 3. Troubleshooting 4. Specifications 4.1 General specifications 4.2 Compliance with various standards 5. Model code 6. Outline dimensions Appendix 1: Safety precautions for associated intrinsically safe type (Model: IB100-CB) Appendix 2: Installation of SPS24 SENCOM PC software IM 12B06J09-01E-E... -
Page 5: Preface
PREFACE Thank you very much for purchasing the IB100 Interface Box (IB100). Please read this instruction manual and related documents below for proper use of this equipment. Be sure to read “Safety precautions” before use. Please store this instruction manual where you can read it any time. - Page 6 Notation of figures Warranty and service • Figures in this instruction manual may be • Yokogawa products and parts are emphasized, simplified and omitted a part guaranteed free from defects in of itself to explain.
-
Page 7: Introduction

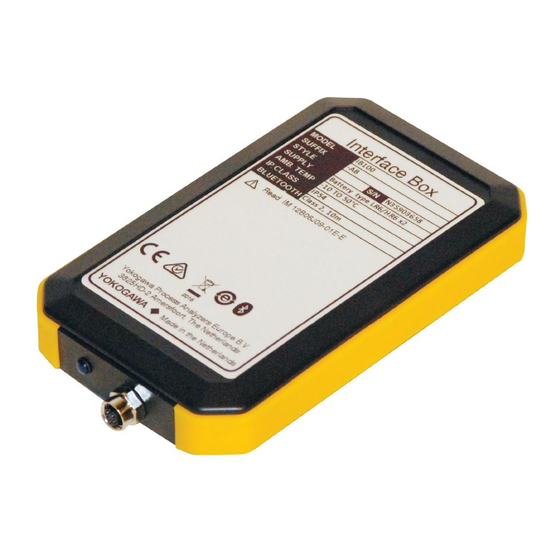

1.1 Features IB100 is an accessory device for connecting Yokogawa’s SENCOM products (parameter specific SA11, FU20F, FU24F, SC25F) to PC or tablet. This IB100 device is converting digital signal from SENCOM sensors/adapters to Bluetooth standard radio signal. By using dedicated software (FieldMate or SPS24 SENCOM PC software) it is possible to manage data such as calibration values and setting values of SENCOM sensors or SENCOM Smart Adapters. -
Page 8: Safety Precautions
SENCOM sensors meet the applicable standards of the area you use. • When displayed in instruction manual • AIS type IB100 cannot be used as an If there is a possibility that a minor injury explosion protected barrier. Connection accident of operators or damage to... - Page 9 CAUTION CAUTION For USA For Canada • FCC CAUTION • (English) Changes or modifications not expressly This device complies with Industry approved by the party responsible for Canada’s licence-exempt RSSs. compliance could void the user’s authority Operation is subject to the following two to operate the equipment.
- Page 10 • 본 기기는 통상 이용 상태의 경우 인체( Batteries to use 머리, 몸통)와 20cm 초과하는 거리에서 • Install batteries to IB100 in a dry place. 사용되어야 합니다. • Installing batteries, do not mistake the direction of + (plus) and – (minus). IB100 may be damaged.
-
Page 11: Disclaimer
Please confirm model name and serial number of IB100 are same as the product label and the delivery sheet. If you also bought options together, please confirm they are included properly. -
Page 12: Installation
2. Installation 2.1 Product details IB100 (BOX ASSY) Top view Screw Battery cover Status LED (Blue) Connector for cable assy (a rubber cap is 1 Data + attached for dust protection) 2 Data - 3 Supply + 4 Shield 5 Supply Gnd WU11 (CABLE ASSY) ※Option item... -
Page 13: Preparation
• FU20F/FU24F/SC25F does not support FieldMate. Please use SPS24 SENCOM PC software. 2.3 Installing batteries Remove the battery cover on the back of IB100 and install batteries. After batteries are installed properly, status LED starts lighting. After a while, status LED stop lighting but it is ready for operation. -
Page 14: Wiring Of Equipment
Smart Adapter can be accessed at the same time by using multiple IB100s, each with their own COM ports. Please do pairing with each IB100 and PC and note the COM port on the IB100 device for easy recognition. Be aware that if you replace a IB100 at a COM port, first remove device before pairing the new IB100. -
Page 15: Operation Mode
• Bluetooth paring has done properly. • To re-access the SENCOM sensor/SENCOM Smart Adapter. Do paring again. If IB100 cannot be detected from PC at the time of pairing, please stop using nearby 2.4GHz band wireless devices. Check Bluetooth communication of PC is working properly. -
Page 16: Specifications
4. Specifications 4.1 General specifications Operating conditions Ambient temperature : -10℃ to 50℃ Ambient humidity : 10% to 85%RH (No condensation) Installation altitude : 2000m or less Installation location : Indoor Storage condition Storage temperature : -30℃ to 70℃ Power supply Battery : 1.5V AA alkaline batteries (LR6) x 2 1.2V AA hydrogen nickel batteries (HR6) x 2... -
Page 17: Compliance With Various Standards
4.2 Compliance with various standards ● General purpose Type Country Laws and regulations Compliance standard EU* Note 1 RED (Article 3 2.) EN 300 328 V2.1.1 (RED Article 3 1.a) EN 61010-1: 2010 *Note 2 Pollution degree 2 installation category I EN 62311: 2008 (RED Article 3 1.b) EN 61326-1: 2013 Class A, Table2 (For use in industrial locations) EN 301 489-1 V2.1.1... - Page 18 ● Associated intrinsically safe Type Country Laws and regulations Compliance standard EU* Note 1 ATEX EN 60079-0:2012 +A11: 2013 EN 60079-11: 2012 RED (Article 3 2.) EN 300 328 V2.1.1 EN 62311: 2008 (RED Article 3 1.a) EN 61010-1: 2010 *Note 2 Pollution degree 2 installation category I EN 62311: 2008...
-
Page 19: Model Code
Only for “/CV2”, SPS24 SENCOM PC software install CD is included. For using with FU20F/FU24F/SC25F, be sure to use “WU11-M9-02-CN-V”. (Please select “/CV2”) For using with SA11, be sure to use “WU11-M9-02-CN-S”. (Please select “/CS2”) 6. Outline dimensions IB100 Interface Box Unit mm [inch] 146 [5.75”] M9 connector (5pin female) Mass: approx. -
Page 20: Appendix 1
Notes: - No revision to this drawing without prior approval of FM. - Warning: Do not either take IB100 into hazardous (classified) location or connect ot to any equipment located in a hazardous (classified) location - Warning: Substitution of components may impair intrinsic safty 2. - Page 21 7) Installation The installation of IB100 should be carried out by the engineers or other professional personnel of the related expertise. The installation should not be carried out by operators or other unprofessional personnel.
-
Page 22: Appendix 2
Appendix 2: Installation of SPS24 SENCOM PC software If you select and purchase the product with option code “/CV2”, SPS24 SENCOM PC software which is PC management software for FU20F is included in the package as installer CD-ROM. System requirements Operating system (OS) : Windows 7 SP1 (32 bit/64 bit) The operating system language and the software... - Page 23 IM 12B06J09-01E-E...
- Page 24 Yokogawa has an extensive sales and YOKOGAWA ELECTRIC ASIA Pte. LTD. YOKOGAWA ELECTRIC CORPORATION World Headquarters 5 Bedok South Road distribution network. Singapore 469270 9-32, Nakacho 2-chome, Musashino-shi Tokyo 180-8750 Singapore Please refer to the European website www.yokogawa.com/sg Japan www.yokogawa.com (www.yokogawa.com/eu) to contact your...
