PW24-2
2.4GHZ WIRELESS SYSTEM FOR
POLICE VIDEO RECORDING

USER GUIDE

Revision B
Page 1 of 8
10/11/06

Advertisement

Table of Contents
loading

  Related Manuals for Telex PW24-2

  Summary of Contents for Telex PW24-2

  • Page 1: User Guide

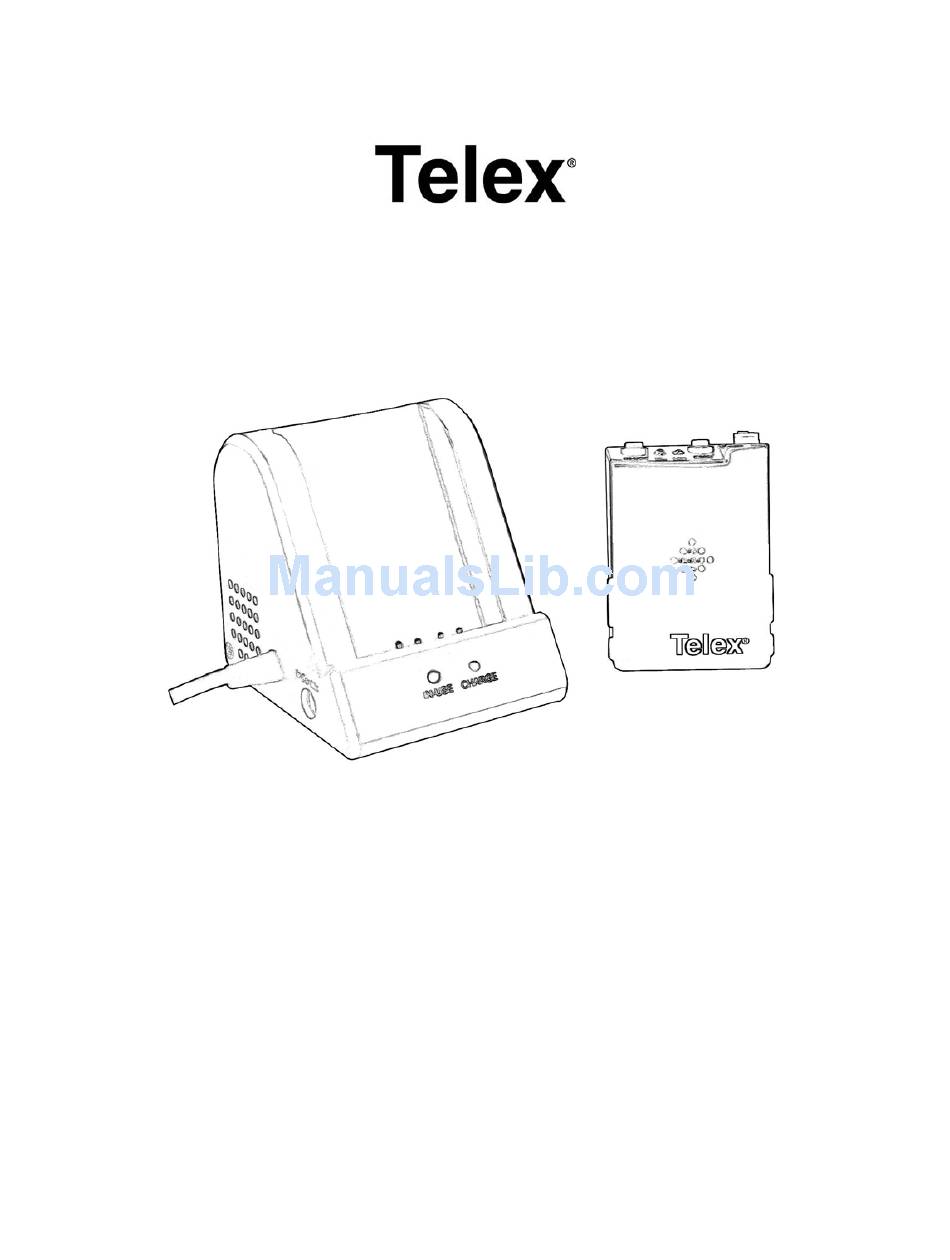

    PW24-2 2.4GHZ WIRELESS SYSTEM FOR POLICE VIDEO RECORDING USER GUIDE Revision B Page 1 of 8 10/11/06...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Quick Set Up and Operation ... 3 Installation... 4 Guidelines For Best Performance... 5 Troubleshooting Guide... 6 Technical Specifications ... 7 Service and Warranty ... 8 Components and Accessories ... 8 Revision B Page 2 of 8 10/11/06...
  • Page 3: Quick Set Up And Operation

    QUICK SET UP AND OPERATION Synching Up The Transmitter and Base 1) Turn the transmitter power switch to on and place the transmitter in the recharge cradle of the base. The transmitter goes in the base with the beltclip facing out. 2) The recharge LED will light (Green if fully charged, Red if charging) and the In-Use Green LED on the base and transmitter will flash 3 times.
  • Page 4: Installation

    microphone starts recording at the same time. The transmitter must be turned on and in standby mode. 19) A +5V signal on the Auto Talk line means the microphone is off. 20) 0V or ground on the Auto Talk line turns on the microphone INSTALLATION 1.
  • Page 5: Guidelines For Best Performance

    2. Plug the 3.5mm stereo plug into the audio input jack of the recording device. Description Position Inside Car Mic Audio Ring Transmitter Audio Sleeve Audio Ground 3. If it is to be used, plug in the in-car microphone into the In-Car Mic jack in the side of the receiver base.
  • Page 6: 5) Trouble Shooting Guide

    5) Trouble Shooting Guide Problem No audio and no In-Use LED light on the receiver when transmitter is on and In-Use No (or low) Audio with all In- Use LEDs solid green Interference Short range or drop-outs In-Use LED on beltpack flashes red and two tone beep sounds Revision B Possible Causes...
  • Page 7: Technical Specifications

    PR24 RECEIVER BASE STATION Indicators INUSE LED: GREEN CHARGE LED : CHARGING -> RED FULL CHARGED -> GREEN Connections In Car Mic 2.5mm Mono Plug Un-terminated Cord +12V DC Power BLUE Microphone Trigger (Ground or 12VDC = Transmitter On) BLACK AUX (Panic) Trigger (+12V when EMG is pushed) YELLOW Left Channel (Inside Mic)
  • Page 8: Service And Warranty

    Enclose a note describing the problem along with any other pertinent information and how to contact you. Warranty (Limited) Telex products are guaranteed against malfunction due to defects in materials or workmanship for a specified period, as noted in the individual product-line statement(s) below, or in the individual product data sheet or owner's manual, beginning with the date of original purchase.
