Summary of Contents for Telex IP-223 iDen Interface NI-223 Plus

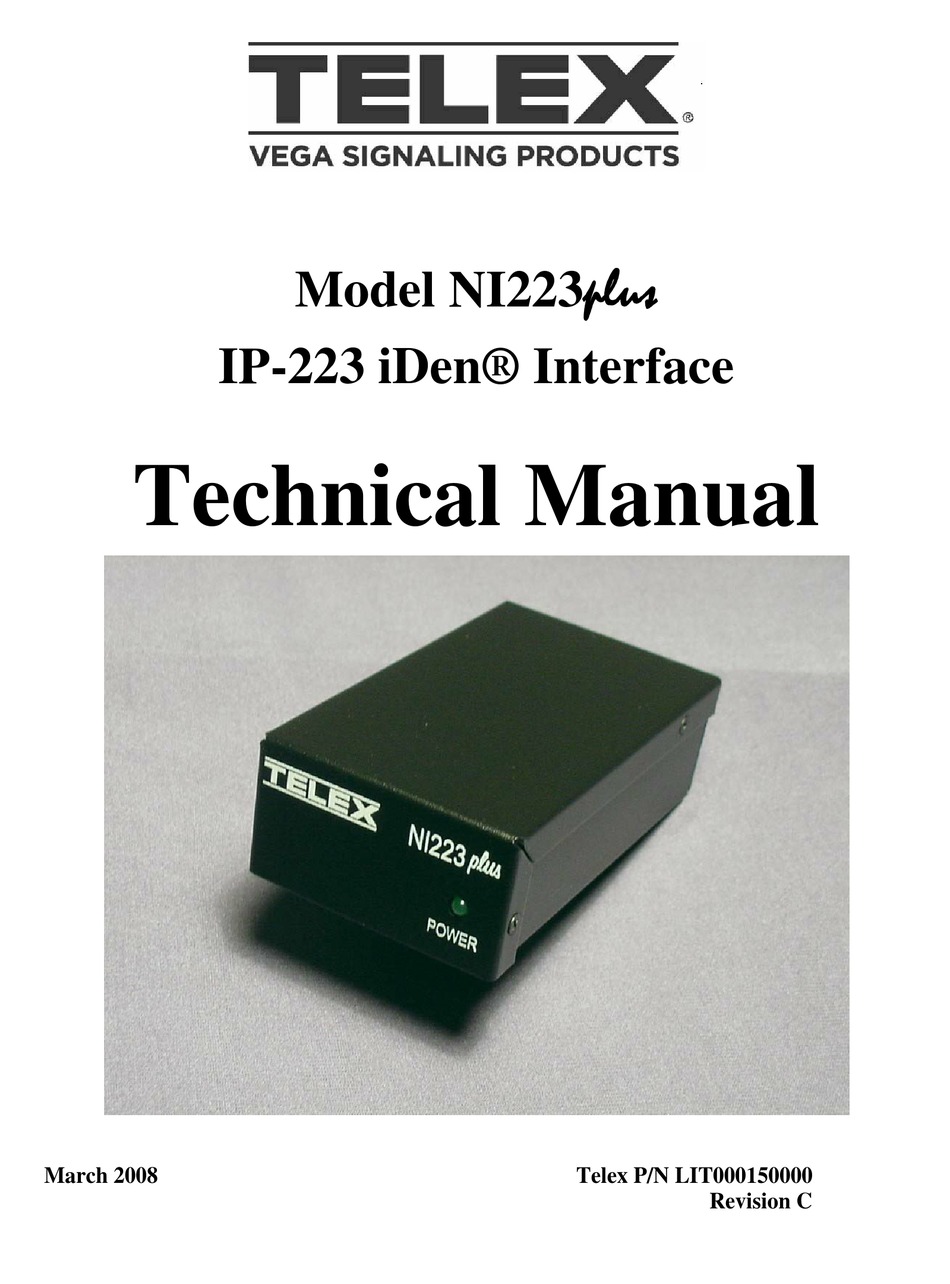

- Page 1 Model NI223 IP-223 iDen® Interface Technical Manual March 2008 Telex P/N LIT000150000 Revision C...
-
Page 2: Table Of Contents
NI223Plus Table of Contents 1 General ... 4 2 Front and Rear Panel Connections and Indicators ... 4 Front Panel LED ... 4 Rear Panel Connectors... 4 3 IP-223/NI223plus Setup... 5 IP-223 Setup... 5 3.1.1 Jumper Settings... 5 3.1.2 Web Page Configuration... 5 Connecting the IP-223 and the NI223plus ... -
Page 3: General
Group calls over the iDen® network. The IP-223 and the NI223plus makes the Nextel network an IP asset to any Telex/Vega IP base consoles (C-Soft, C-6200, IP-1616 or IP-2002). 2 Front and Rear Panel Connections and Indicators Front Panel LED POWER: Green LED indicates power to the NI223plus. -
Page 4: Ip-223/Ni223Plus Setup
NI223Plus 3 IP-223/NI223plus Setup IP-223 Setup 3.1.1 Jumper Settings Jumper Position “A” Line 1: J3, J9, J11, J16, J21 Line 2: J19, J20, J25, J28, J29 “A” Line 1: J14 Line 2: J24 “B” Line 1: J35 Line 2: J26 “B”... -
Page 5: Figure 2 Iden® Radio Setup Page
- 6 - NI223Plus listening consoles. Configuration of the ring multicast and port numbers must be unique and consistent with the IP-223 and any listening console. For console configurations, please refer to the specific User Manual for that product. After the iDen® Radio Mode has been set, the IP-223 must be reset. -
Page 6: Connecting The Ip-223 And The Ni223Plus
IP-223 Radio 1. Radio 1, Radio 2 or both radio ports on the IP-223 may be used. If both ports are used, a DB9 splitter cable (Telex P/N 301953) is required to route serial channel one and two to the respective NI223plus devices. -
Page 7: C-Soft Setup
- 8 - C-Soft Setup This example shows a basic setup for C-Soft. Please refer to the User manual for other 3.4.1 Setup IP Multicast List Figure 4 Setup IP Multicast List – iDen® Radio in Phone Mode operation Figure 4 shows an example of setting two lines in Phone mode. In this example, the Line Type is selected as Phone mode. -
Page 8: C-Soft Phone Control Buttons
NI223Plus 3.4.3 C-Soft Phone Control Buttons Figure 6 shows a few of the basic C-Soft Phone Control buttons. Any button can be configured for a task by Right-Clicking on the button, then using the UI Element Function pull down menu. In this case, Phone –... -
Page 9: A-Key, Alert
- 10 - 4.2.1 A-Key, Alert The ‘A’ key is used to send an Alert function over the iDen® system. Using the standard dialing keys, enter the ID of the radio. Press the “A” key to send the alert. 4.2.2 B-Key, Send The “B”... -
Page 10: Receive Audio Alignment
To access the VU meter Press and Hold the line button, then press the IC button three times. A general talk test is still the best mechanism for ensuring a quality connection. The system can be tested with a handset from the front panel as well. To purchase the handset, contact the Telex Vega Sales department. -
Page 11: Cable Assembly
- 12 - NI223Plus 6 Cable Assembly... -
Page 12: Warranty, Service, Repair, And Comments
If such a malfunction occurs, the product will be repaired or replaced (at our option) without charge during the three-year period, if delivered to the Telex factory. Warranty does not extend to damage due to improper repairs, finish or appearance items, or malfunction due to abuse or operation under other than the specified conditions, nor does it extend to incidental or consequential damages. -
Page 13: Ni223Plus Specifications
Accessories: • DB9 Splitter Cable Assembly, Telex PN 301953 • 19” Rack Mount Kit Telex P/N DSP223RACK (holds up to 4 NI223Plus boxes) 8601 East Cornhusker Highway, Lincoln, Nebraska, 68507 Phone: (402) 465-7026 / (800) 752-7560 Fax: (402) 467-3279 E-mail: vega@telex.com, Web: Front Panel Indicators: •...
