Telex PH-100 Specifications

Single-sided headset with flexible dynamic boom mic
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual

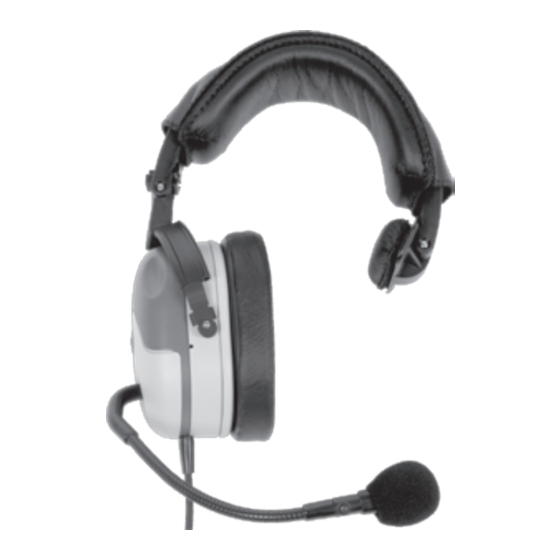

Single-Sided Headset with Flexible Dynamic Boom Mic
The PH-100 is a premium medium-weight noise reduction headset with dynamic microphone. The PH-100
features a unique, comfortable headband design that distributes pressure evenly. This headset comes with
high quality moleskin cushions and offers a 21 dB noise reduction rating. The PH-100 is portable and able
to fold into an extremely compact shape. Available in 4- or 5-pin XLR connectors (male or female) and
pigtail termination.
Features
Boom Microphone
Headband Pressure Adjustments
Wiring Diagram
PH-100

Advertisement

loading
Need help?

Need help?

Do you have a question about the PH-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Telex PH-100

Summary of Contents for Telex PH-100

  • Page 1 This headset comes with high quality moleskin cushions and offers a 21 dB noise reduction rating. The PH-100 is portable and able to fold into an extremely compact shape. Available in 4- or 5-pin XLR connectors (male or female) and pigtail termination.
  • Page 2 Connector Termination PH-100: XLR 4-pin Female PH-100A5: XLR 5-pin Female PH-100PT: Stripped Wire PH-100R: XLR 4-pin Male PH-100R5: XLR 5-pin Male Type Single Sided Mic Type Dynamic Noise-Canceling Mic Sensitivity -65dBV/Pa @1cm Mic Frequency Range 150Hz - 8kHz Mic Impedance 200Ω...
