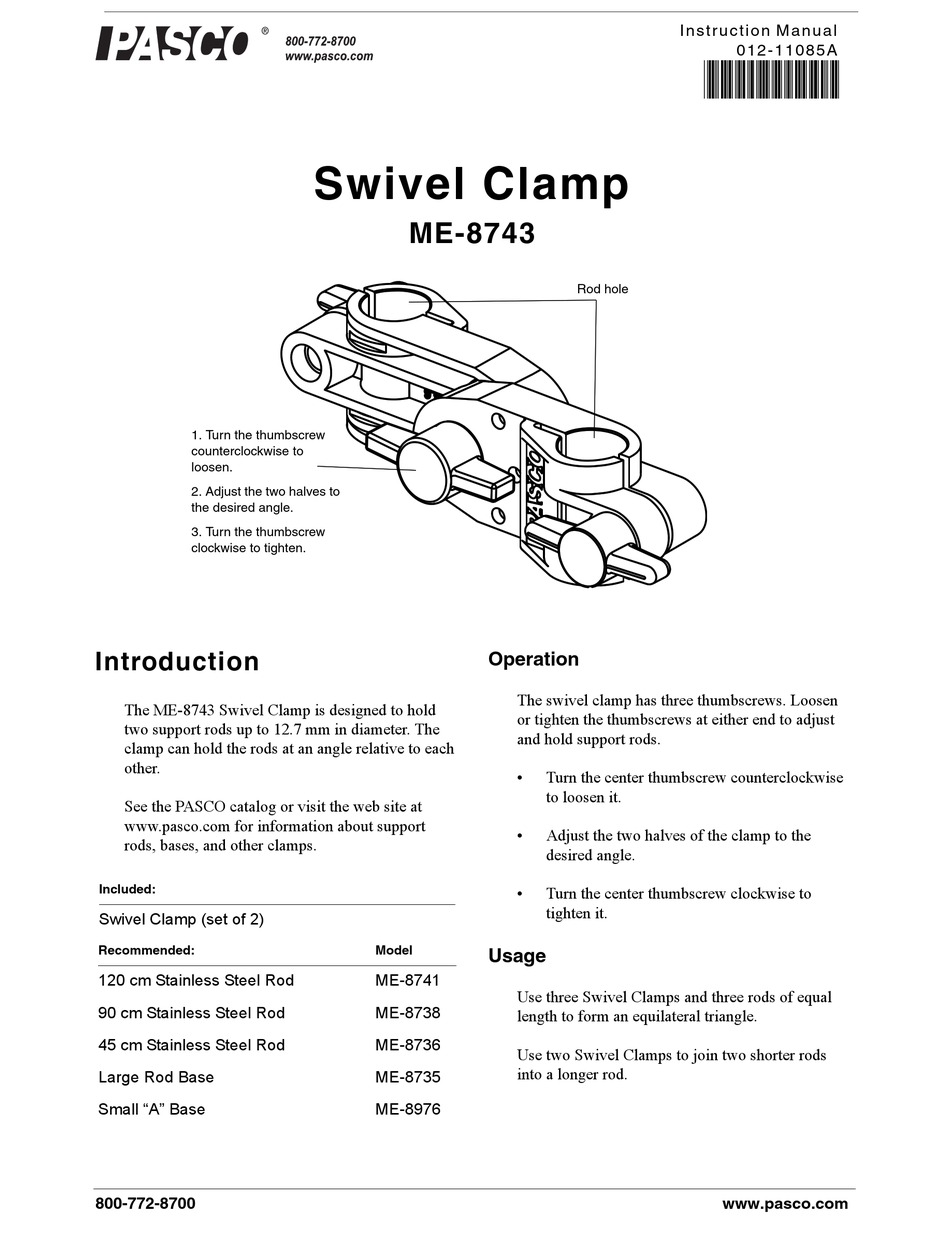

PASCO ME-8743 Instruction Manual

®
1. Turn the thumbscrew
counterclockwise to
loosen.
2. Adjust the two halves to
the desired angle.
3. Turn the thumbscrew
clockwise to tighten.

Introduction

The ME-8743 Swivel Clamp is designed to hold
two support rods up to 12.7 mm in diameter. The
clamp can hold the rods at an angle relative to each
other.
See the PASCO catalog or visit the web site at
www.pasco.com for information about support
rods, bases, and other clamps.

Included:

Swivel Clamp (set of 2)
Recommended:
120 cm Stainless Steel Rod
90 cm Stainless Steel Rod
45 cm Stainless Steel Rod
Large Rod Base
Small "A" Base
800-772-8700
Swivel Clamp
ME-8743

Operation

Model
Usage
ME-8741
ME-8738
ME-8736
ME-8735
ME-8976
I n s t r u c t i o n M a n u a l
Rod hole
The swivel clamp has three thumbscrews. Loosen
or tighten the thumbscrews at either end to adjust
and hold support rods.
• Turn the center thumbscrew counterclockwise
to loosen it.
• Adjust the two halves of the clamp to the
desired angle.
• Turn the center thumbscrew clockwise to
tighten it.
Use three Swivel Clamps and three rods of equal
length to form an equilateral triangle.
Use two Swivel Clamps to join two shorter rods
into a longer rod.
012-11085A
