Summary of Contents for Harley Benton StreetBox-60

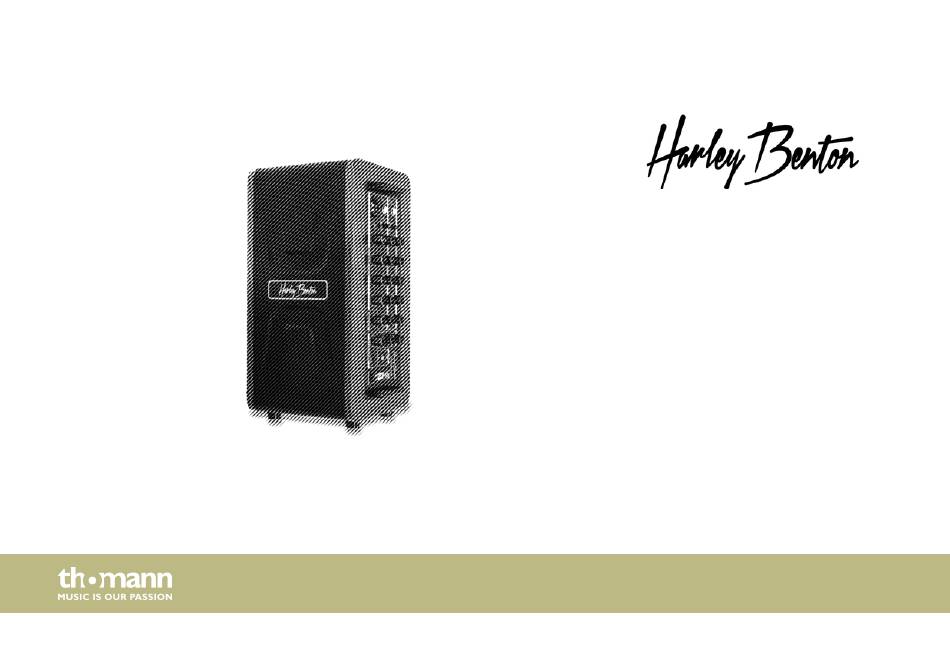

- Page 1 StreetBox-60 mobile PA system user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.09.2019, ID: 469240...
-
Page 3: Table Of Contents
1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 16 Installation and starting up........................ 17 4.1 Battery operation..........................18 4.2 Connection options......................... 19 Connections and controls........................20 Technical specifications........................25 Plug and connection assignment....................28 Protecting the environment......................32 StreetBox-60... -
Page 4: General Information
General information General information This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. -
Page 5: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. StreetBox-60... -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... - Page 7 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. StreetBox-60...
- Page 8 General information Warning signs Type of danger Warning – danger zone. mobile PA system...
-
Page 9: Safety Instructions
This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. StreetBox-60... - Page 10 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 11 Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. StreetBox-60...
- Page 12 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 13 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. StreetBox-60...
- Page 14 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
- Page 15 Store the equipment at a tempera‐ ture between 10 °C and 32 °C in as dry an environment as possible. During extended storage periods, charge the batteries to 50 % approximately every three months. StreetBox-60...
-
Page 16: Features
Features Features Compact portable battery-powered amplifier with great features for playing and singing along with streamed music via the built-in Bluetooth function; ideal for electric guitar, acoustic guitar, ukulele, vocals and music. Special features of the device: Built-in Bluetooth function 60 watt RMS 2 ×... -
Page 17: Installation And Starting Up
Take care when running the cables to prevent tripping hazards. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. StreetBox-60... -
Page 18: Battery Operation
Installation and starting up 4.1 Battery operation You can also operate the device independently of the mains power supply via the built-in rechargeable lithium battery (lithium-ion accumulator 18.5 V, 2.2 Ah). mobile PA system... -
Page 19: Connection Options
Installation and starting up 4.2 Connection options StreetBox-60... -
Page 20: Connections And Controls
Connections and controls Connections and controls mobile PA system... - Page 21 Tone controls for the instrument input [BASS]: Bass control [MIDDLE]: Mids control [TREBLE]: Treble control [VOLUME]: Volume control [REVERB]: Control for reverb effect intensity 4 [NOTCH] Control for setting the anti-feedback filter [FREQ.]: Filter centre frequency [DEPTH]: Filter quality StreetBox-60...
- Page 22 Connections and controls 5 [AMP] Connections for another device of the same type. When two devices are connected together, the second device will automatically adjust the volume, tone, and effects of the first device. [IN]: Input, designed as 3.5 mm jack socket (stereo) [OUT]: Output, designed as 3.5 mm jack socket (stereo) 6 Connector for the supplied plug-in power supply.
- Page 23 The LED lights up solid blue. 10 [MASTER] Overall volume control 11 Instrument / microphone input, designed as 1/4" jack socket (mono) 12 [Mode Select] Switch for the sensitivity of the instrument /microphone input. Pressed: Instrument Not pressed: Microphone StreetBox-60...
- Page 24 Connections and controls 13 [MIC / ACOUSTIC GUITAR] Tone controls for the instrument / microphone input [BASS]: Bass control [MIDDLE]: Mids control [TREBLE]: Treble control [VOLUME]: Volume control [REVERB]: Control for echo and reverb effect intensity 14 Microphone input, designed as XLR / 1/4" jack combo socket 15 [MICROPHONE] Tone controls for the microphone input [BASS]: Bass control...
-
Page 25: Technical Specifications
Frequency range 80 Hz … 20 kHz Sound pressure level (SPL) –111 dB (@ 1 kHz) Voltage supply Plug-in power supply (24 V / 1500 mA , centre positive) Battery / rechargeable battery Battery type Lithium-ion Voltage 18.5 V StreetBox-60... - Page 26 Technical specifications Capacity 2.200 mAh Operating time Charging time in the device Dimensions (W × H × D) 375 mm × 195 mm × 185 mm Weight 4.0 kg Ambient conditions Temperature range -20 °C…60 °C Relative humidity 60 %, ±25 % mobile PA system...
- Page 27 Technical specifications Further information Channels Reverb Effects processor External effects loop Line input Headphone connection StreetBox-60...
-
Page 28: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 29 180°. Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding StreetBox-60...
- Page 30 Plug and connection assignment 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding mobile PA system...
- Page 31 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) StreetBox-60...
-
Page 32: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. -
Page 33: Streetbox
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. StreetBox-60... - Page 34 Notes mobile PA system...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
