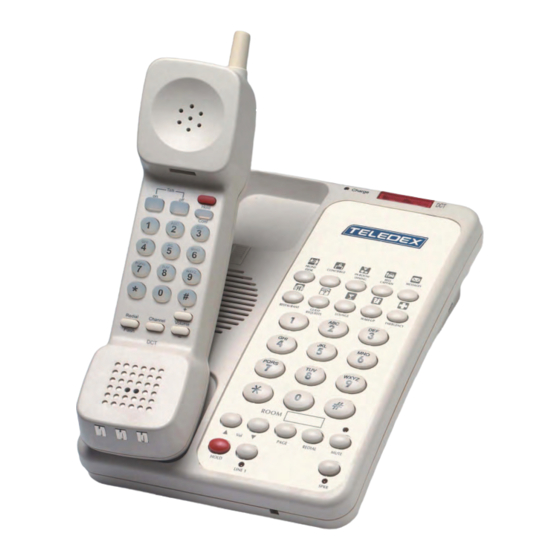

Teledex DCT1900 User Manual

DCT1800 SERIES DIAGRAM
CONTACTING TELEDEX
Telephone Internet
+1.408.363.3100 www.teledex.com
Part Number 600-0480-72 Copyright © 2006 Teledex LLC. ALL RIGHTS RESERVED.
Email Mailing Address
sales@teledex.com 6311 San Ignacio Avenue
San Jose, CA 95119 USA
DCT1800 SERIES USERS GUIDE
1.8 GHz DECT Single-Line Digital Cordless Telephone

INCLUDED IN YOUR PACKAGE

Cordless Handset AC Adapter
Base Unit User Guide
Battery Pack RJ-11 Line Cord
Rubber Battery Screw Cover RJ-45 Cable
Phillips Screw Clear Plastic Overlay

PREPARING TO USE THE DCT1800 SERIES

1. Prepare to install the battery into the cordless handset by
firmly pressing down on the top of the battery cover and
sliding it off. If cover is secured with a screw, remove the
screw first.
2. Locate the lightly embossed numbers "1" and "2" on the
battery's plastic connector.
3. Insert the battery connector into the handset's connector
with the embossed numbers facing up.
Note: The handset may "beep" when the battery is connected. This is not
an indication that the telephone is ready to use. To obtain optimal perform-
ance of the telephone, be sure to charge the battery for 15 to 20 hours
4
. Replace the battery compartment cover and retaining screw.
5. Insert the provided rubber screw cover.
6. Turn the telephone base so the back panel is facing you.
Insert either end of the RJ-45 cable into the jack on the back
of the telephone labeled LINE.
7. Insert the other end of the cable into the jack on the AC
adapter labeled PHONE.
8. Insert one end of the RJ-11 line cord into the jack on the AC
adapter labeled LINE.
9. Insert the other end of this line cord into a telephone jack.
10. Plug the AC adapter into an unswitched electrical outlet.
11. Once your telephone is connected, remove the plastic
overlay and place the paper faceplate over the keys. Replace
the plastic overlay by hooking the tabs on the overlay into
the recessed slots located on both sides. The overlay is
easiest to insert when the left or right side tabs are inserted
first, and the middle of the overlay is slightly bowed to allow
for insertion of the other tabs.
12. Place the cordless handset on the base unit.

CHARGING THE BATTERY

The rechargeable battery must be fully charged before using the
phone for the first time. It is recommended that that battery pack
be charged for approximately 15 to 20 hours, without interruption,
before use. To charge the battery, place the handset, keypad down,
in the base unit. Make sure the CHARGE LED on the base lights.
If the LED does not light:
1. Ensure that the AC adapter is plugged in.
2. Ensure that the AC adapter is not plugged into a switched
electrical outlet.
3. Ensure that the handset charging contacts at the bottom of
the handset are making good contact with the base unit's
charging contacts.

CLEANING THE BATTERY CONTACTS

To maintain a good charge, it is important to clean all charging
contacts on the handset and base unit. Use a pencil eraser or
other contact cleaner. Do not use any liquids or solvents.

BATTERY SAFETY INSTRUCTIONS

1. Use only Teledex-approved battery replacements.
2. Dispose of used batteries according to local codes pertaining
to rechargeable batteries.
3. Do not dispose of batteries in fire, as they may explode
4. Charge the telephone's batteries only while in the telephone
handset, and only by using the telephone base unit to charge.
Do not attempt to remove the batteries and charge them in
a separate charging unit.
.
5. Do not short-circuit the battery pack, as this may cause it to
explode or catch fire.

HANDSET/BASE REGISTRATION PROCEDURE

This procedure establishes an exclusive link between a specific
handset and base, thereby allowing no other access to this
specific base. To accomplish this procedure, place the handset
on the base in the charging position. The LINE indicator will
blink while the process is occuring. This process occurs each
time the handset is placed on the base in the charging cradle.

ADJUSTING THE RING VOLUME

The up and down volume keys will adjust the ringer volume of
the telephone. Additionally, the DCT1800 series telephone has
an optional "courtesy" ring mode, wherein the ring volume
begins at the lowest setting, then automatically rings louder
with each successive ring during an incoming call. To select the
courtesy ring mode, follow these steps:
Press the FLASH key; then the 4 key; then the STORE key; then
the 1 key.
To return to regular ring mode: Press the FLASH key; then the 1
key; then the STORE key; then the 1 key.

ADJUSTING SPEAKERPHONE VOLUME

The speakerphone has eight (8) levels. To adjust speakerphone
volume, locate the volume up/down keys, located on the front
surface of the phone below the keypad. With the speaker active,
press the "down" arrow key to decrease the volume level, and
press the "up" arrow key to increase it.
