Teledex Diamond L2S-6 User Manual

CONNECTING THE DIAMOND+L2S
Included with the Diamond+L2S are (one each):
• Line cord • Coiled handset cord
• Handset • Clear plastic overlay
Contact your supplier or Teledex for information on ordering
custom designed and printed faceplates to enhance the look of your
Teledex telephone.
1) Located on the left side of the Diamond+L2S is a modular jack
TO HANDSET.
labeled Insert one end of the coiled handset cord
into this jack. It is inserted properly when you hear a click.
2) Insert the other end of the coiled handset cord into the handset.
3) Turn the telephone so the back panel is facing you. Insert either
end of the line cord into the jack on the back of the telephone
TO TEL.
labeled
4) Insert the other end of the line cord into a telephone wall jack.
5) Once your telephone is connected, place the paper faceplate over
the keys. The plastic overlay slips into place by hooking the tabs
on the overlay into the recessed slots located on both sides. The
overlay is easiest to insert when the left or right side tabs are
inserted first, and the middle part of the overlay is slightly bowed
to allow for insertion of the other tabs.
SELECTING LINE 1 AND LINE 2
Line 1 or Line 2 can be activated by pressing one of the latching line
LINE 1 LINE 2.
keys labeled or
hold while connecting to the other line.
RECEIVING A CALL ON THE HANDSET
Select the active line, if not previously selected (as above.) Lift the
handset to answer incoming call. To end the call, hang up by
replacing the handset.
RECEIVING A CALL ON THE SPEAKERPHONE
Select the active line, if not previously selected (as above.) Press the
SPEAKERPHONE
key to answer the call. When call is completed,
SPEAKERPHONE
press the key again to end call.
PLACING A CALL ON THE HANDSET
1) Select the desired line.
2) Lift the handset – the LED for the activated line will turn green.
3) Listen for dial tone, dial the desired number, or press an autodial
key to automatically dial a number.
4) To end the call, hang up by replacing the handset.
PLACING A CALL ON THE SPEAKERPHONE
1) Select the desired line.
SPEAKERPHONE
2) Press the
will turn green.
3) Listen for dial tone, dial the desired number, or press an autodial
key to automatically dial a number.
SPEAKERPHONE
4) To end the call, press the
ADJUSTING SPEAKERPHONE VOLUME
Locate the slide control labeled
telephone. To increase the volume of the speakerphone, slide the
control towards the rear of the telephone. To decrease speakerphone
volume, slide the control towards the front of the telephone.
USING THE MUTE KEY
To mute the microphone on either the handset or speakerphone, press
MUTE
the key while a call is active. The
indicating that the party on the other end cannot hear you. Press the
MUTE
key again to restore normal operation.
USING THE HOLD KEY
Place a call on either line by pressing the
HOLD
active. The LED illuminates, indicating the call is on hold. You
may replace the handset without hanging up the call while on hold. To
HOLD
resume the call, press the
MESSAGE WAITING LIGHT
The raised red lens is a message waiting light. Many telephone systems
turn on the red message waiting light to alert the user that there is a
• User guide
HOLD
Use the key to place caller son
key – the LED for the activated line
key again.
SPKR VOL
on the right side of the
MUTE
LED illuminates,
HOLD
key while a call is
key again.

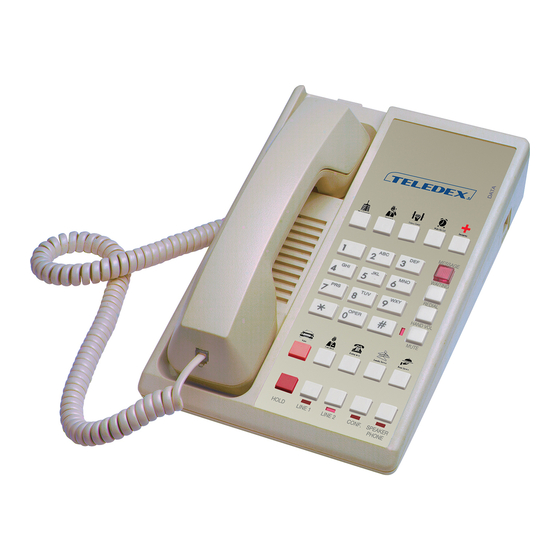

DIAMOND+L2S
GUESTROOM TELEPHONE

USERS GUIDE

message waiting. Additionally, the message waiting light will act as a
visual ring indicator, flashing when the telephone is ringing.
USING THE DATA PORT
The data port is a modular jack, located on the right side of the
DATA
telephone, labeled . You can connect a fax machine, computer
modem, answering machine and other similar devices to the telephone
line through this port. To use the data port, insert the line cord from
the device you wish to connect into the jack labeled
ADJUSTING THE RING VOLUME
The Diamond+L2S has ring volume settings for each line. To change
the ring volume, locate the adjustment control for the desired line on
the back of the telephone labeled
to the desired volume. The ring volume can be changed at any time.
HANDSET VOLUME KEY
HANDSET VOLUME
Pressing the
the handset volume by 40%. Pressing the key again returns the
handset volume to the normal level. Handset volume is reset to the
normal volume once a call is ended.
AUTO DIAL / ONE TOUCH FEATURE KEYS
The Diamond+L2S has eleven (11) programmable auto dial keys.
These keys can be programmed to automatically dial telephone numbers,
or to activate telephone system features, when connected to a
compatible PBX. To store auto dial information:
The telephone must be connected to a working telephone line.
1) Lift the handset.
STORE
2) Press the key and release it (see diagram.)
3) Enter the telephone number (including PAUSE as required - see
diagram.) The dialing sequence can be up to 15 digits long.
4) Press the auto dial key where the number is to be stored.
5) Replace the handset.
REDIAL
To redial the last telephone number dialed:
1) Select the desired line.
2) Lift the handset or press the
3) Listen for dial tone, and press the
will dial the last number dialed.
NOTE: Some PBX's require a pause after the first digit to access an outside
line. The redial function will automatically incorporate a pause if the dialed
number is 7 digits or more. The inserted pause will be of the same duration
as set in the pause timing (see below.)
FLASH KEY
FLASH
The key, when programmed behind an auto dial key, provides
a timed line interrupt typically used for accessing PBX/CO features
such as transfer and conference. The timing of the hookflash is
programmable, with the factory default timing set to 600 milliseconds.
Some PBXs may require you to change the hookflash timing from
the default 600ms. To change hookflash timing:
1) Lift the handset.
STORE
2) Press the key (see diagram.)
FLASH
3) Press the programming key (see diagram.)
4) Select 1 - 9 on the dial pad. The number selected will be the
new Flash timing in hundreds of milliseconds; ie: "3" = 300 ms.
STORE
5) Press the key.
PAUSE KEY
PAUSE
The key can be used to provide a timed pause between dialed
digits within an auto dial key. The timing of the pause is programmable,
with the factory default set to zero (0) seconds. To change pause timing:
1) Lift the handset.
STORE
2) Press the key (see diagram.)
PAUSE
3) Press the key (see diagram.)
4) Select 1 - 9 on the dial pad. The number selected will be the
new Pause timing in seconds; ie: "3" = seconds.
STORE
5) Press the key.
WALL MOUNTING
The Diamond+L2S telephone can be wall mounted. It is easiest to do
the conversion when the handset and line cords are not connected.
DATA.
RINGER LOW/HI.
Slide the switch
key while a call is active increases
SPEAKERPHONE
key.
REDIAL
key. The telephone
