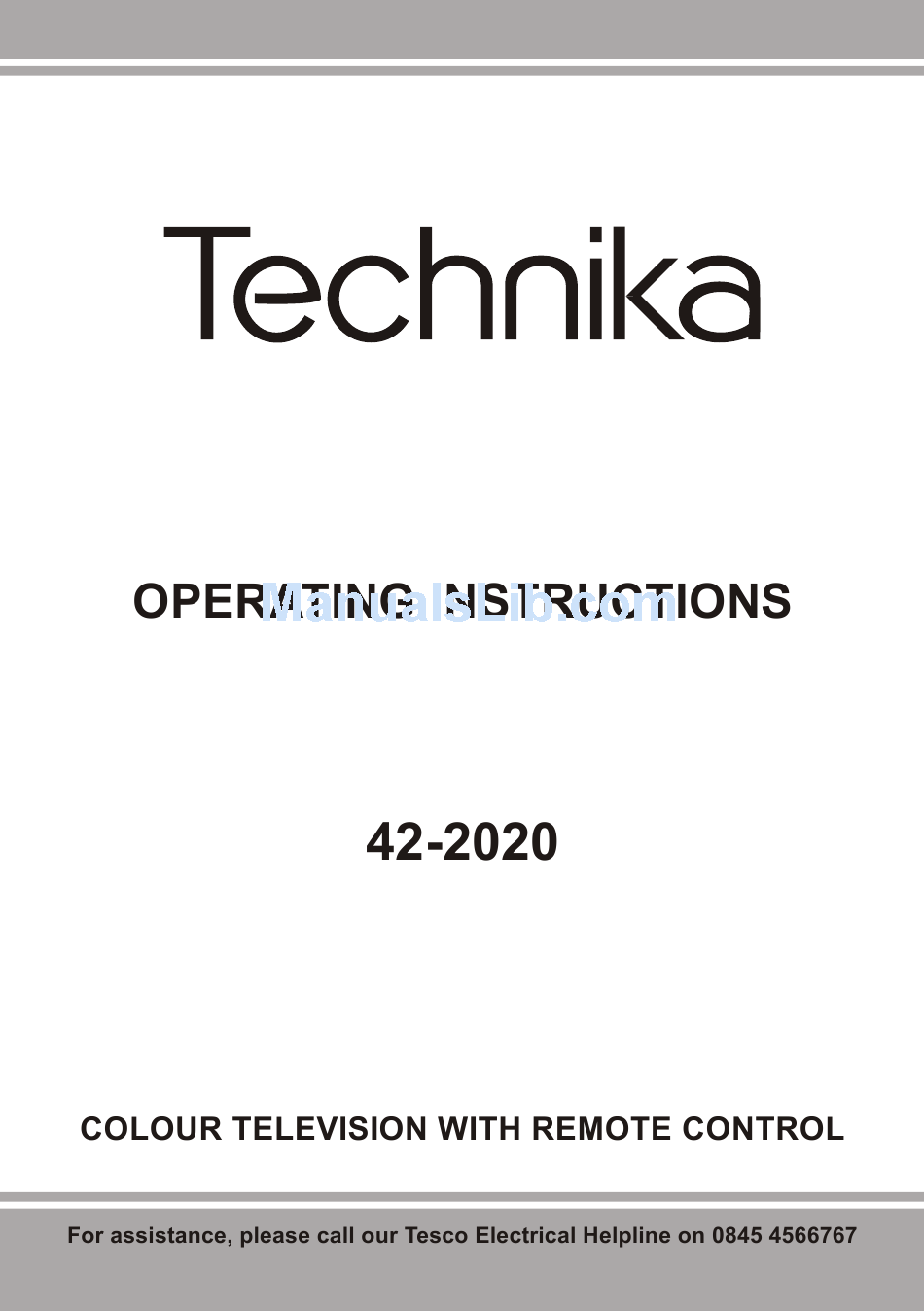

Summary of Contents for Technika 42-2020
-
Page 2: Table Of Contents
Contents Features ... 2 Accessories ... 2 Introduction ... 2 Preparation ... 2 Safety Precautions ... 3 Power Source ... 3 Power Cord ... 3 Moisture and Water ... 3 Cleaning... 3 Ventilation ... 3 Heat and Flames ... 3 Lightning ... -
Page 3: Features
Features • Remote controlled colour LCD TV. • Fully integrated digital TV (DVB-T). • HDMI connectors for digital video and audio. This connection is also designed to accept high defi nition signals. • USB input. • 200 programmes from VHF, UHF(analogue). •... -
Page 4: Safety Precautions
Safety Precautions Please read the following recommended safety precautions carefully for your safety. Power Source The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience. Power Cord Do not place the set, a piece of furniture, etc. -
Page 5: Headphone Volume
Headphone Volume Excessive sound pressure from earphones and headphones can cause hearing loss. Installation To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available). LCD Screen The LCD panel is a very high technology product with about a million thin fi... -
Page 6: Environmental Information
Environmental Information • This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy effi ciency feauture of this TV. To reduce energy consumption, you should take the following steps: •... -
Page 7: Overview Of The Remote Control
Overview of the Remote Control Standby Yellow / Feature menu / Current language (*) (in DTV mode) Blue / Install menu / Favourite mode (*) (in DTV mode) PIP / PAP mode Guide (in DTV mode) Sleep timer Subtitle on-off / TXT subtitle Numeric buttons TV –... -
Page 8: Lcd Tv And Operating Buttons
LCD TV and Operating Buttons Viewing the Connections- Back Connectors 1. S/PDIF Digital Out outputs digital audio signals of the currently watched source. Use a digital optic cable to transfer audio signals to a device that has S/PDIF input. 2. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass effect. - Page 9 4. SCART 2 inputs or outputs for external devices. 5. SCART 1 inputs or outputs for external devices. Connect the SCART cable between SCART sockets on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player). Note: If an external device is connected via the SCART sockets, the TV will automatically switch to AV mode.
-
Page 10: Viewing The Connections - Side Connectors
Viewing the Connections - Side Connectors CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see “Conditional Access” section. Side USB input . Note: Codec update cannot be performed. -
Page 11: Using Digital Multimedia Connectors
Using Digital Multimedia Connectors • You can connect USB devices to your TV by using the USB input of the TV. This feature allows you to display/play JPG and MP3 fi les stored in a USB stick. • It is possible that certain types of USB devices (e.g. MP3 Players) may not be compatible with this TV. -
Page 12: Using Side Av Connectors
Using Side AV Connectors You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied. • For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. -
Page 13: Switching The Tv On/Off
Switching the TV On/Off To Switch the TV On • Connect the power cord to the 220-240V AC, 50 • Press STANDBY switch. Then the standby LED lights up. • To switch on the TV from standby mode either: • Press the “ ”... -
Page 14: Initial Settings
Initial Settings When the TV is turned on for the fi rst time, the menu for the language selection appears on the screen. The message “Welcome please select your language!” is displayed in all language options sequentially in the On Screen Display (OSD). By pressing the “... -
Page 15: General Operation
General Operation Pressing the “TV/DTV” button at any time while watching television programmes will switch the TV set between the digital terrestrial television broadcasting and its normal analogue broadcasting. Information Banner • Whenever you change channel, using the P- / P+ button or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen (available only in DTV... -
Page 16: Digital Teletext (** For Uk Only)
Digital Teletext (** for UK only) • Press the TELETEXT ( ) button. • The digital teletext information appears. • Operate it with the coloured buttons, cursor buttons and OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen. -
Page 17: Deleting The Channels In The Channel List
• Press “ ” or “ ” buttons to select the “ Move ” item on Channel List menu. Note: If you enter the same programme number of the channel that you want to move, “... channel services will be replaced. Do you want to continue?” On Screen Display (OSD) will be displayed. -
Page 18: Timers
How to Add a Channel to a Favourites List • By pressing “ ” or “ ” buttons, highlight the channel that you want to add to the favourite list. • By pressing OK button, the highlighted channel is added to the Favourite List. •... -
Page 19: Tv Setup
• To see the viewing contract information: enter IDTV; press the “ M ” button, then highlight Conditional Access and press the OK button. • When no module is inserted, “No Conditional Access module detected” message appears on the screen. •... -
Page 20: Time Settings
channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search. Use “ ” or “ ” button to select Scan Encrypted and then press “ ” or “ ” button to set this setting as On or Off. -
Page 21: Standby Search
screen. Current Time,Time Zone Setting and Time Zone will be available. Use “ ” or “ ” buttons to highlight the Time Zone Setting. Time Zone Setting is set using “ ” or “ ” buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Current Time and Time Zone options will not be available to be set. - Page 22 In the confi guration menu, highlight the Language Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen: Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “...
-
Page 23: Media Browser
First Time Installation The user can use this item to load default settings, which were loaded to the receiver at the factory. To install factory settings, highlight “First Time Installation” menu item and press OK button, then you will be asked whether or not to delete the settings. Selecting “Yes”... -
Page 24: Viewing Jpg Files
Viewing JPG Files Jump (Numeric buttons) : jump to selected fi le using the numeric buttons. OK : views the selected picture in full screen. Play / Slideshow (Green button) : starts the slideshow with all pictures in the folder. Slideshow Options Pause (Yellow button) : Pause the slideshow. -
Page 25: Sound Menu
Noise Reduction If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Press “ ” or “ ” button to select Noise Reduction. Press “ ” or “ ” to choose from one of these options: Low , Medium , High or Off . -
Page 26: Feature Menu
Press “ ” or “ ” button to select Balance. Press “ ” or “ ” button to change the level of the balance. Balance level can be adjusted between -32 and + Headphone Press “ ” or “ ” button to select Headphone . Press “... -
Page 27: Blue Background
PIP Position This setting is used for moving the sub picture. Select PIP Position item by using “ “ ” button. Use “ ” or “ ” button to adjust PIP position. Positions available are: Bottom Right,Bottom Left, Top Left and Top Right. Source PIP Source setting enables you to select the source of the sub picture. -
Page 28: Install Menu
Full Mode (optional) If you connect a device via HDMI or YPbPr connectors and set 1080i/1080P resolutions, Full Mode item will be visible.You can set Full Mode as 1:1 or Normal by using “ ” or “ ”.If you select 1:1, screen ratio will be adjusted correctly. -
Page 29: Source Menu
AV modes). By cursor action, programme selection is done automatically. Name To change the name of a programme, select the programme and press the RED button. The fi rst letter of the selected name will be highlighted. Press “ ” or “ ” button to change that letter and “ ” or “... -
Page 30: Displaying Tv Information
Autoposition If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display. Select Autoposition item by using “ ” or “ ” buttons. Press OK or “... -
Page 31: Zoom Modes
Zoom Modes You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press “SCREEN” button to directly change the zoom mode. Available zoom modes are listed below. Note: In YPbPr and HDMI modes, while in 720p-1080i resolutions, only 16:9 mode is available. -
Page 32: Tips
“SCREEN” Expand Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size. “ ” Reveal Shows hidden information (e.g. solutions of games). “OK” Hold Holds a text page when convenient. -
Page 33: Appendix A: Pc Input Typical Display Modes
Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1920 x 1200 . The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning On Screen Display (OSD) will appear on the screen. -
Page 34: Appendix C: Supported Dvi Resolutions
Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. Appendix D: PIP/PAP Mode Combinations MAIN DTV/USB Scart1 (RGB) Scart2 HDMI1 HDMI2 YPbPr PC-VGA ( RGB ): This indicates that, selection is possible only if Scart-1 has a RGB signal. -
Page 35: Appendix E: Supported File Formats For Usb Mode
Appendix E: Supported File Formats for USB Mode File Media Video Extension MPEG1 .mpg/ .dat/ MPEG2 .vob XviD/ 3ivx MPEG4 Movie MS ISO MPEG4 .avi MJPEG Music .mp3 Baseline JPEG .jpg Photo Progressive JPEG .gif .bmp bit map .srt External .smi Subtitles .sub... -
Page 36: Specifi Cations
Specifi cations TV BROADCASTING PAL/SECAM B/G D/K K’ I/I’ L/L’ RECEIVING CHANNELS VHF (BAND I/III) UHF (BAND U) HYPERBAND MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profi le 1 for UK Object carousel support compliant with ISO/IEC 135818-6 and UK DTT profi le Frequency range: 474-850 MHz for UK models 170-862 MHz for EU models Digital... -
Page 37: Important Instruction
Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. The wires in the mains lead are coloured in accordance with the following code : GREEN & YELLOW (Earth) (if there is earth cable) BLUE (Neutral) IMPORTANT...
