Operating Instructions

LCD Projector

PT-AE2000E
Model No.
Before operating this product, please read the instructions carefully and save this manual for future use.
TQBJ0234
E
NGLISH

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic PT-AE2000E

  • Page 1: Operating Instructions

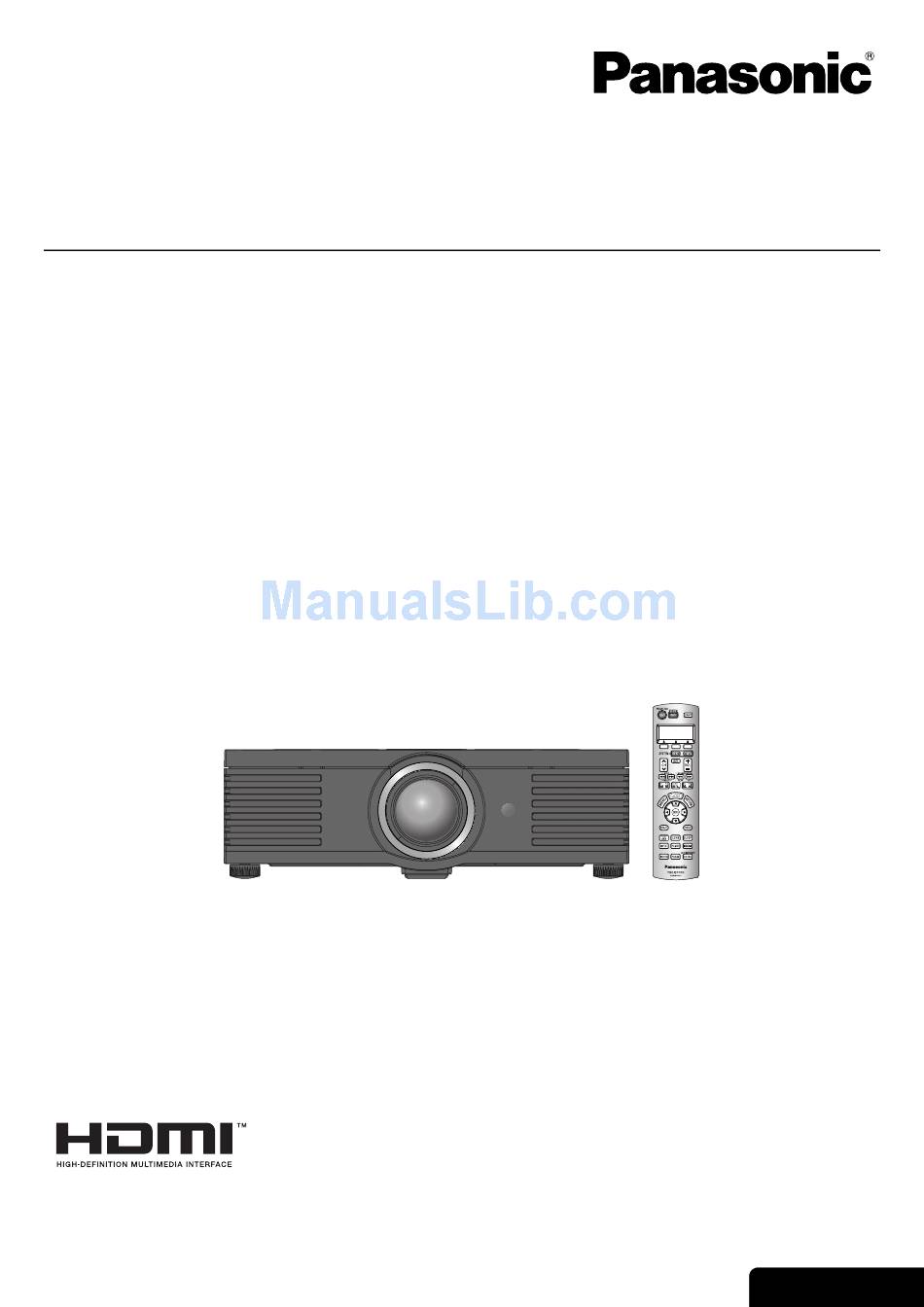

    Operating Instructions LCD Projector PT-AE2000E Model No. Before operating this product, please read the instructions carefully and save this manual for future use. TQBJ0234 NGLISH...
  • Page 2: Important Safety Notice

    Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. NGLISH PT-AE2000E...
  • Page 3: Important Safety Notice

    IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
  • Page 4: Table Of Contents

    Contents Quick steps 1. Set up your projector See “Setting up” on page 14. 2. Connect with other devices See “Connections” on page 18. 3. Prepare the remote control See “Remote control” on page 11. 4. Start projecting See “Switching the projector on/off” on page 19.
  • Page 5 Settings Menu Navigation ...28 Main menu and sub-menu ... 28 Navigating through the MENU ... 30 PICTURE menu...31 PICTURE MODE... 31 CONTRAST ... 31 BRIGHTNESS... 31 COLOUR ... 31 TINT ... 31 SHARPNESS ... 31 COLOUR TEMPERATURE... 32 DYNAMIC IRIS... 32 WAVEFORM MONITOR ...
  • Page 6: Precautions With Regard To Safety

    Precautions with regard to safety WARNINGS If you notice smoke, strange smells or noise coming from the projector, disconnect the mains plug from the mains socket. Do not continue to use the projector in such cases, otherwise fire or electric shocks could result. Check that no more smoke is coming out, and then contact an Authorised Service Centre for repairs.
  • Page 7 Do not use the projector in a bath or shower. Fire or electric shocks can result. Do not place your skin into the light beam while the projector is being used. Strong light is emitted from the projector’s lens. If you place directly into this light, it can hurt or damage your skin.
  • Page 8: Cautions

    Precautions with regard to safety CAUTIONS Do not cover the air inlet port or the air outlet port. Doing so may cause the projector to overheat, which can cause fire or damage to the projector. Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.
  • Page 9: Cautions When Transporting

    Ask an Authorised Service Centre to clean inside the projector at least once a year. If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation. It is a good idea to clean the inside of the projector before the season for humid weather arrives.
  • Page 10: Cautions On Use

    LCD. Accessories Make sure the following accessories are provided with your projector. Remote control for AA batteries for remote PT-AE2000E (x1) control (x2) EUR7914Z60 Mains lead for continental Europe (x1) K2CM3FZ00003 3 m (9'10")
  • Page 11: About Your Projector

    About Your Projector Remote control POWER button While the MAIN POWER button is on, switch between stand-by mode and projection mode. (page 19) Display the main menu or return to the previous menu. (page 30) Navigate through the menus with FGIH, and activate the menu item with ENTER.
  • Page 12: Projector Body

    About Your Projector Projector body Top and front view Air exhaust port Heated air comes out of this opening. Projection lens Lens cover Protects the projection lens from dust or dirt. Navigate through the menus with F G H I, and activate the menu item with ENTER.
  • Page 13 Back and bottom view Security lock Attach the commercial shackle lock Air intake port which is provided with the projector. Compatible with the Kensington MicroSaver Security System. (page 51) Front leg adjusters Screw up/down to adjust the projection angle. (page 15) COMPUTER IN Connect an RGB signal cable from your PC.
  • Page 14: Setting Up

    Setting up Screen size and throw distance You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows. Projected image Projection size (16 : 9) Screen Diagonal Screen height (SH) (SD) 1.01 m (40") 0.50 m 1.27 m...
  • Page 15: Projection Method

    Projection method You can use the projector with any of the following 4 projection methods. To set the desired method in the projector, See “INSTALLATION” on page 41. Setting on a desk/floor and projecting from front INSTALLATION: FRONT/DESK Mounting in the ceiling and projecting from front INSTALLATION: FRONT/CEILING NOTE:...
  • Page 16: Lens Shift And Positioning

    Setting up Lens shift and positioning If the projector is not positioned right in front of the centre of the screen, you can adjust the projected image position by moving the lens shift dials within the shift range of the lens. Adjusting the lens shift dials Horizontal shift You can place the projector where the projector lens is up to 40% horizontally off-centre from the screen and...
  • Page 17 Projector location range You can determine where to locate the screen and the projector by considering the lens shift possibilities. See “Positioning the image” on page 21. When the screen position is fixed Vertical centre of screen Screen When the projector position is fixed 100% 100% NOTE:...
  • Page 18: Connections

    Connections Before connecting to the projector Read and follow the operating and connecting instructions of each peripheral device. The peripheral devices must be turned off. Use cables that match each peripheral device to be connected. Confirm the type of video signals. See “List of compatible signals” on page 47. Audio cables must be connected from each peripheral device directly to the audio reproduction system.
  • Page 19: Switching The Projector On/Off

    Switching the projector on/off Mains lead Connecting 1. Make sure the shape of the mains plug and the AC IN connector on the back of the projector match, then push the plug all the way in. 2. Connect the mains lead to a mains socket. NOTE: •...
  • Page 20: Switching On The Projector

    Switching the projector on/off Switching on the projector POWER indicator 1. Switch the MAIN POWER button on. The power indicator lights up in red. 2. Remove the lens cover from the lens. NOTE: • When starting up the projector, some small rattling or tinkling sound may be heard, or the display may flicker for the characteristics of the lamp.
  • Page 21: Projecting An Image

    Projecting an image Selecting the input signal 1. Switch on the connected devices. Press the play button of the required device. 2. Press the INPUT button to select the required input method if needed. See “Switching the input signal” on page 23. The image will be projected on the screen.
  • Page 22: Remote Control Operation

    Remote control operation Operating range Turning on the button backlight In a dark room, you can turn on the button backlight to operate the remote control. Press the LIGHT button on the upper right corner of the unit to turn on the backlight and enter the light-on mode.
  • Page 23: Switching The Input Signal

    Switching the input signal You can switch the input method manually by pressing the INPUT button. Press the button several times or press I H to cycle through the input methods as follows. The actual projected image will be changed in a while.
  • Page 24: Adjusting The Signal Condition With A Waveform

    Remote control operation Adjusting the signal condition with a waveform You can display the image brightness and contrast level of the input signal with a waveform. See “WAVEFORM MONITOR” on page 32. 100% ENTER ENTER Displaying the waveform 1. Press the WAVEFORM button and display the waveform monitor.
  • Page 25: Adjusting The Focus And Zoom

    Adjusting with RGB options 1. Press the ENTER button until the required option is displayed. 2. Press the PIC. ADJUST twice to display the GAMMA of the ADVANCED MENU menu. 3. Press G several times to display the required brightness option. 4.
  • Page 26: Setting Your Own Colour Profile

    Remote control operation Setting your own colour profile You can adjust a selected colour individually and save and retrieve under the PICTURE MODE setting. Press the COLOR M. button to open the menu. PROFILE CURSOR PROFILE SAVE PROFILE DELETE PROFILE NAME CHANGE Create a new profile Adjusting the selected colour Select a colour and adjust COLOUR, TINT and...
  • Page 27 Saving a log setting as a profile Return to the COLOUR MANAGEMENT menu and save the stored log as a profile. Make sure that the PICTURE MODE is not switched. 1. Select the PROFILE SAVE menu and press ENTER The PROFILE SAVE menu is displayed. You can save the profile as USER1, USER2 and USER3.
  • Page 28: Menu Navigation

    Menu Navigation The menu system allows you to access functions which do not have their own dedicated buttons on the remote control. The menu options are structured and categorised. You can navigate through the menu with F G H I buttons.
  • Page 29: Menu Navigation

    Main menu Sub-menu POSITION H-POSITION V-POSITION DOT CLOCK CLOCK PHASE ASPECT OVER SCAN KEYSTONE AUTO SETUP LENS CONTROL ZOOM/FOCUS BUTTON1 FUNCTION BUTTON BUTTON2 BUTTON3 LANGUAGE OPTION INPUT GUIDE OSD DESIGN OSD POSITION BACK COLOUR STARTUP LOGO AUTO SEARCH HDMI SIGNAL LEVEL FRAME RESPONSE INSTALLATION SLEEP...
  • Page 30: Navigating Through The Menu

    Menu Navigation Navigating through the MENU Displaying the main menu Press the MENU button to display the main menu and the operating guidance. Main menu Sub-menu PICTURE PICTURE MODE CONTRAST POSITION BRIGHTNESS LANGUAGE COLOUR TINT LENS CONTROL SHARPNESS FUNCTION BUTTON COLOUR TEMPERATURE OPTION DYNAMIC IRIS...
  • Page 31: Picture Menu

    PICTURE menu Remote control Control panel See “Navigating through the MENU” on page 30. See “Main menu and sub-menu” on page 28. PICTURE MODE Depending on the projection environment, you can use these preset parameter settings to optimise image projection. Press I H to cycle through the options. NORMAL DYNAMIC COLOUR1...
  • Page 32: Colour Temperature

    PICTURE menu COLOUR TEMPERATURE You can adjust the white balance of the projected image. Less bluish Setting range: -6 to +6 DYNAMIC IRIS You can switch automatic adjustment of the lamp and the lens iris on/off. Automatic adjustment OFF: No adjustment WAVEFORM MONITOR You can monitor whether or not the luminance level of the input signal is in the recommended range by...
  • Page 33: Advanced Menu

    Adjusting the image in a split window 1. Select AREA SELECT and press the ENTER button. The image will be frozen and the area cursor will be displayed. MOVE AREA ENTER GO TO SPLIT ADJUST ENTER 2. Press I H to move the area cursor to select the required area and press the ENTER The selected frozen image will be displayed in a split window.
  • Page 34: Memory Save

    PICTURE menu COLOUR MANAGEMENT You can manage your own defined colour settings. See “Setting your own colour profile” on page 26. xvYCC You can switch on/off the automatic adjustment system for signals which complied with xvYCC. Active OFF: Deactive NOTE: •...
  • Page 35: Memory Edit

    MEMORY EDIT You can edit the named memory settings. Deleting a memory setting 1. Select MEMORY DEL and press the ENTER button. 2. Select the required memory setting and press the ENTER button. If you select ALL DELETE, you can delete all of the saved memory settings.
  • Page 36: Position Menu

    POSITION menu Remote control Control panel See “Navigating through the MENU” on page 30. See “Main menu and sub-menu” on page 28. H-POSITION You can move the projected image horizontally for fine adjustment. Move left V-POSITION You can move the projected image vertically for fine adjustment.
  • Page 37: Position Menu

    Aspect ratio options and projection example If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ due to the input signals. See “Switching the aspect ratio” on page 23. VIDEO/S-VIDEO/COMPONENT Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/ 24p, 750 (720)/50p and 750 (720)/60p signals.
  • Page 38: Wss

    POSITION menu WSS (Wide Screen Signalling) detects if a PAL/ 625p (576p)/625i (576i) signal is input and that signal has an identification signal, and switch the aspect ratio to required setting automatically. You can switch the system off manually. OVER SCAN If the 4 edges of an image is partly dropped, you can use this function to adjust and project it properly.
  • Page 39: Lens Control

    LENS CONTROL Remote control Control panel See “Navigating through the MENU” on page 30. See “Main menu and sub-menu” on page 28. ZOOM/FOCUS You can use the 2 different test patterns to adjust the focus and zoom of the image. See “Lens shift and positioning”...
  • Page 40: Option Menu

    OPTION menu Remote control Control panel See “Navigating through the MENU” on page 30. See “Main menu and sub-menu” on page 28. INPUT GUIDE When you change the input method, the guidance appears in the upper right corner of the screen. The following display methods are available.
  • Page 41: Installation

    INSTALLATION When installing the projector, select the projection method according to the projector position. Press I H to cycle through the options. See “Projection method” on page 15. Setting on a desk/floor and FRONT/DESK projecting from front Mounting in the ceiling and FRONT/CEILING projecting from front Setting on a desk/floor and...
  • Page 42: Temp And Lamp Indicators

    TEMP and LAMP Indicators Managing the indicated problems If a problem should occur with the projector, the LAMP and/or TEMP indicators will inform you. Manage the indicated problems as follow. 1. Confirm the status of all indicators and projector, and switch off the projector in proper way.
  • Page 43: Care And Replacement

    Care and Replacement Cleaning the projector Before cleaning the projector Switch off the MAIN POWER switch in proper way and disconnect the mains plug from the mains socket. Unplug all the cables from the projector. Cleaning the outer surface of the projector Wipe off dirt and dust gently with a soft cloth.
  • Page 44: Replacing The Lamp Unit

    Care and Replacement Replacing the lamp unit Before replacing the lamp unit Switch off the MAIN POWER button in proper way and disconnect the mains plug from the mains socket. Make sure the lamp unit and the surroundings are cooled enough. Unplug all the cables from the projector.
  • Page 45: Resetting The Lamp Runtime

    Removing and replacing the lamp unit 1. Use a Phillips screw driver to loosen the 3 lamp unit fixing screws until the screws turn freely. 2. Hold the handle of the lamp unit and release the lamp unit lock. 3. Pull out the lamp unit gently from the projector. 4.
  • Page 46: Troubleshooting

    Troubleshooting Should any problem persist, contact your dealer. Problem Power does not turn on. No picture appears. The picture is fuzzy. The colour is pale or greyish. The Remote control does not operate. The picture does not display correctly. Picture from a computer does not appear.
  • Page 47: Technical Information

    Technical Information List of compatible signals Mode Display NTSC/NTSC 4.43/ PAL-M/PAL60 PAL/PAL-N/SECAM 525i (480i) 525i 625i (576i) 625i 525p (480p) 525p 625p (576p) 625p 1 125 (1 080)/60i 1 125/60i 1 125 (1 080)/50i 1 125/50i 1 125 (1 080)/24p 1 125/24p 1 125 (1 080)/60p 1 125/60p...
  • Page 48: Serial Terminal

    Technical Information Serial terminal The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connecter. Connection NOTE: •...
  • Page 49: Communication Settings

    Communication settings Signal level RS-232C Sync. method Asynchronous Baud rate 9 600 bps Parity None Control commands Command Control contents POWER ON POWER OFF INPUT MAIN ENTER RETURN OCU/OCD/ Navigation buttons OCL/OCR LENS DEFAULT FREEZE SLEEP BLANK PICTURE WAVEFORM ASPECT PICTURE MODE Character length Stop bit...
  • Page 50: Inquiry Commands

    Technical Information Inquiry commands Command Control contents Power status FREEZE status INPUT signal status SLEEP status PICTURE MODE status BLANK status WAVEFORM status 50 - NGLISH Parameter 000 = OFF 0 = OFF CP1 = COMPONENT1 IN SVD = S-VIDEO IN HD1 = HDMI1 IN HD3 = HDMI3 IN 0 = OFF...
  • Page 51: Ceiling Mount Bracket Safeguards

    Ceiling mount bracket safeguards The projector and the ceiling mount bracket are designed sufficiently safety though, make sure the safety cable provided with the projector is installed and attached to the bottom of the projector when mounting in the ceiling for safety and security.
  • Page 52: Specifications

    Technical Information Specifications Power supply Power consumption Amps Panel size (diagonal) Aspect ratio LCD panel Display method Drive method Pixels Lens Lamp Luminosity Operating environment Horizontal scanning frequency Scanning Vertical scanning frequency frequency (for RGB signal) Dot clock frequency COMPONENT (YP ) signals Colour system Projection size...
  • Page 53 S-VIDEO IN VIDEO IN COMPUTER IN Terminals COMPONENT IN HDMI IN SERIAL Cabinet Dimensions Weight Certifications Power supply Operating range Weight Remote control Dimensions Cable cover Ceiling bracket Options Projection screen Cables Single - line, Mini DIN 4p Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Single - line, RCA pin jack1.0 V [p-p], 75 Single - line, D - sub HD 15-pin (female) Selectable for input and output by menu operation.
  • Page 54: Dimensions

    Technical Information Dimensions Unit: mm 300 (11-23/32) 15 (19/6) 147 (5 -25/32) 60 (2 -5/16) 230 (9 -1/32) 17 (-21/32) 460 (18 -3/32) 54 - NGLISH...
  • Page 55: Trademark Acknowledgements

    Technical Information Trademark acknowledgements VGA and XGA are trademarks of International Business Machines Corporation. S-VGA is a registered trademark of the Video Electronics Standards Association. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh Company, Ltd.
  • Page 56: Index

    Index ...13 AC IN ...10 Accessories ...33 ADVANCED MENU ...12 Air exhaust port ...12 Air filter ...43 Replacing ...13 Air intake port ...41 ALTITUDE ...36 ASPECT ...11 Remote control button ...23 Remote control function ...40 AUTO SEARCH ...38 AUTO SETUP ...40 BACK COLOUR Batteries...
  • Page 57 ...12 MAIN POWER Mains lead ...10 Accessory ...19 Connecting MEM.LOAD ...11 Remote control button ...23 Remote control function ...35 MEMORY EDIT ...34 MEMORY LOAD ...11 Remote control button ...23 Remote control function ...34 MEMORY SAVE MENU ...12 Control panel button ...11 Remote control button ...30...
  • Page 58 Matsushita Electric Industrial Co., Ltd. Web Site: http://panasonic.net Printed in Japan © 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. S0807-1087B...
