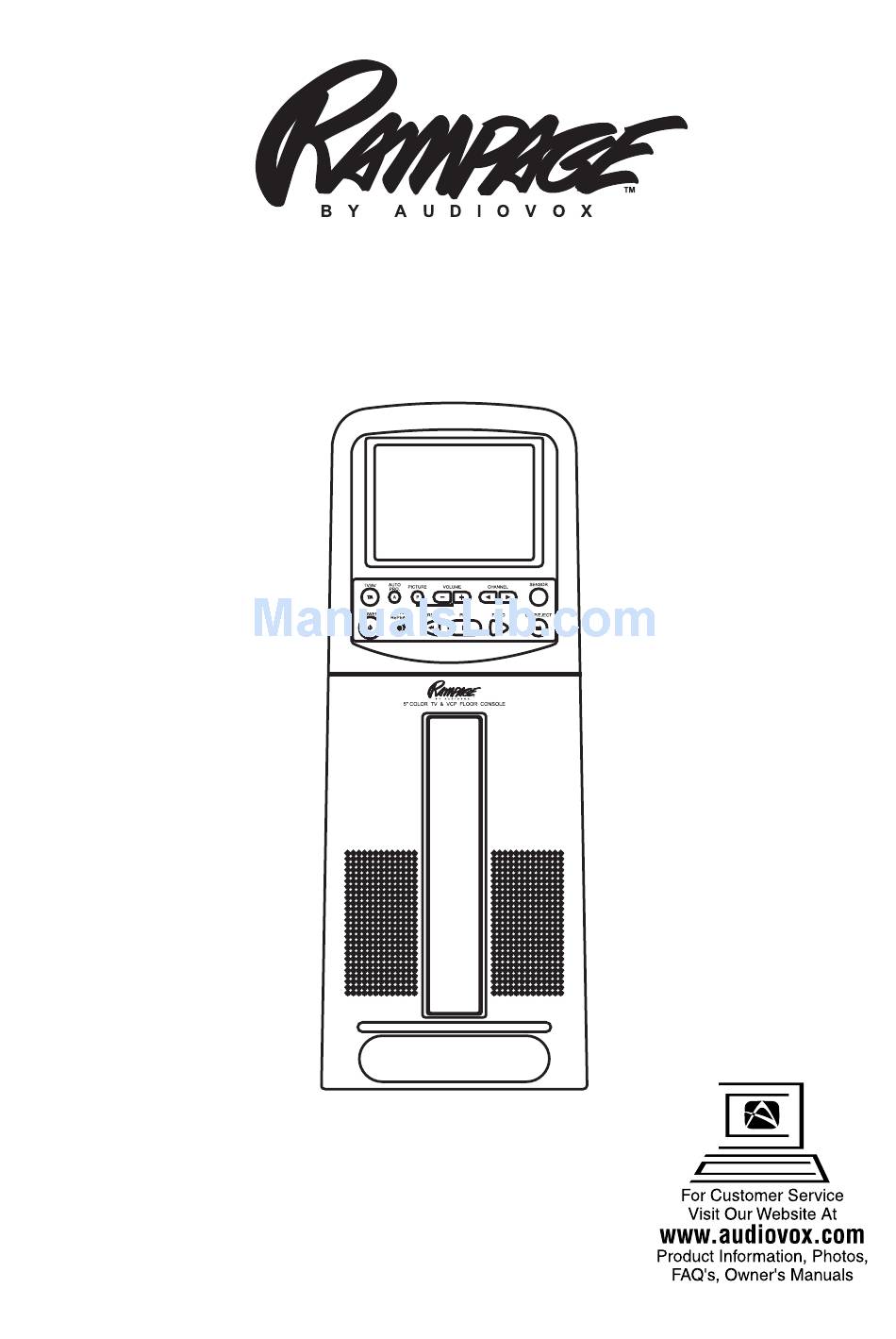

- Page 1 EZCRG Owner’s Manual...
- Page 2 This aesthetic console is constructed of two-tone, gray textured plastic with an extra cup holder, jack cover, protective bar and cigarette lighter jack to compliment your vehicle’s decor. The EZCRG standard manufacture ensures reliability and longevity. Please read the following instructions thoroughly for correct installation and proper operation.
- Page 3 7. In case anything falls into the cabinet, unplug the unit and have it checked by qualified personnel prior to further operation. 8. Only use the supplied power cord, and not use other power supplies even if they have the same current characteristics. 9.
- Page 4 NOTE: Whenever unit loading exceeds 3 Amperes, the unit power supply will overload and automatically disconnect the power supply from +12V DC vehicle power at the cigarette lighter jack. D. Contents in Kit TV and VCP Floor Console Owner’s Manual Remote Control 12V Cigarette Lighter Cord and Plug (for powering this unit) Cardboard Mounting Template (for positioning the mounting holes on the floor)
- Page 5 Figure 2...
- Page 6 6. Place 1 sealing washer (rubber side towards vehicle floor) and 1 large fender washer over each of the floor bolts and attach the floor nuts. In addition to the sealing washer, it may be desirable to place a small circle of silicon sealer around the hole under the vehicle before installing the washers and nut, to further prevent moisture from getting into the vehicle.
-
Page 7: Door Latch
DETAIL DC 12V INPUT DOOR DC 12V DOOR LATCH VIDEO L AUDIO R OUTPUT CABLE NOTCHES ANTENNA TERMINAL ANTENNA JACK NUT ANTENNA JACK OF FOIL DIPOLE Figure 3... - Page 8 H. Connecting an External Antenna (Refer to Figure 3) 1. Originally, the antenna jack of the built-in foil dipole has already been connected to the antenna terminal behind the door at the rear of the console. 2. In case of poor images with the foil dipole, loosen the nut around the an- tenna jack, unplug the antenna jack, and connect the coaxial cable of an external antenna to the antenna terminal.
- Page 9 has accumulated inside of VCP. In this case, the VCP will not operate, and no VCP controls will be functional, except for the VCP power button on the remote control, until the unit dries out sufficiently and the word DEW disappears from the screen.
- Page 10 1. TV POWER Button Press this button to switch the unit on or off . 2. Number Buttons (0-9) Press these buttons to make a direct TV channel selection. The channel number chosen will be displayed on the screen for about 4 seconds. 3.
- Page 11 8. TV/VIDEO Button Press this button to select the TV mode and the AV mode in turn. When the power turns on, the unit will go to the mode last stored in memory. 9. MUTE Button Press this button to cut off all sound. Pressing this button again restores sound to the previously set level.
- Page 12 O. Specifications System Picture Size Remote Control Antenna Channels Plugs Audio track Tape width Tape speed SP Playback time FF/REW time Heads Video Output Video signal-to-noise ratio Audio output Audio signal-to-noise ratio SP Frequency response SP Power Supply Power Consumption Operating Humidity Operating Temperature Storage temperature...
