Installation Instructions for
Torpedo Pendant
PENDANTS-LOW VOLTAGE
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry
locations and approved for use at any height above the
finished floor.
This product is patented (U.S. PAT. 6,183,297).

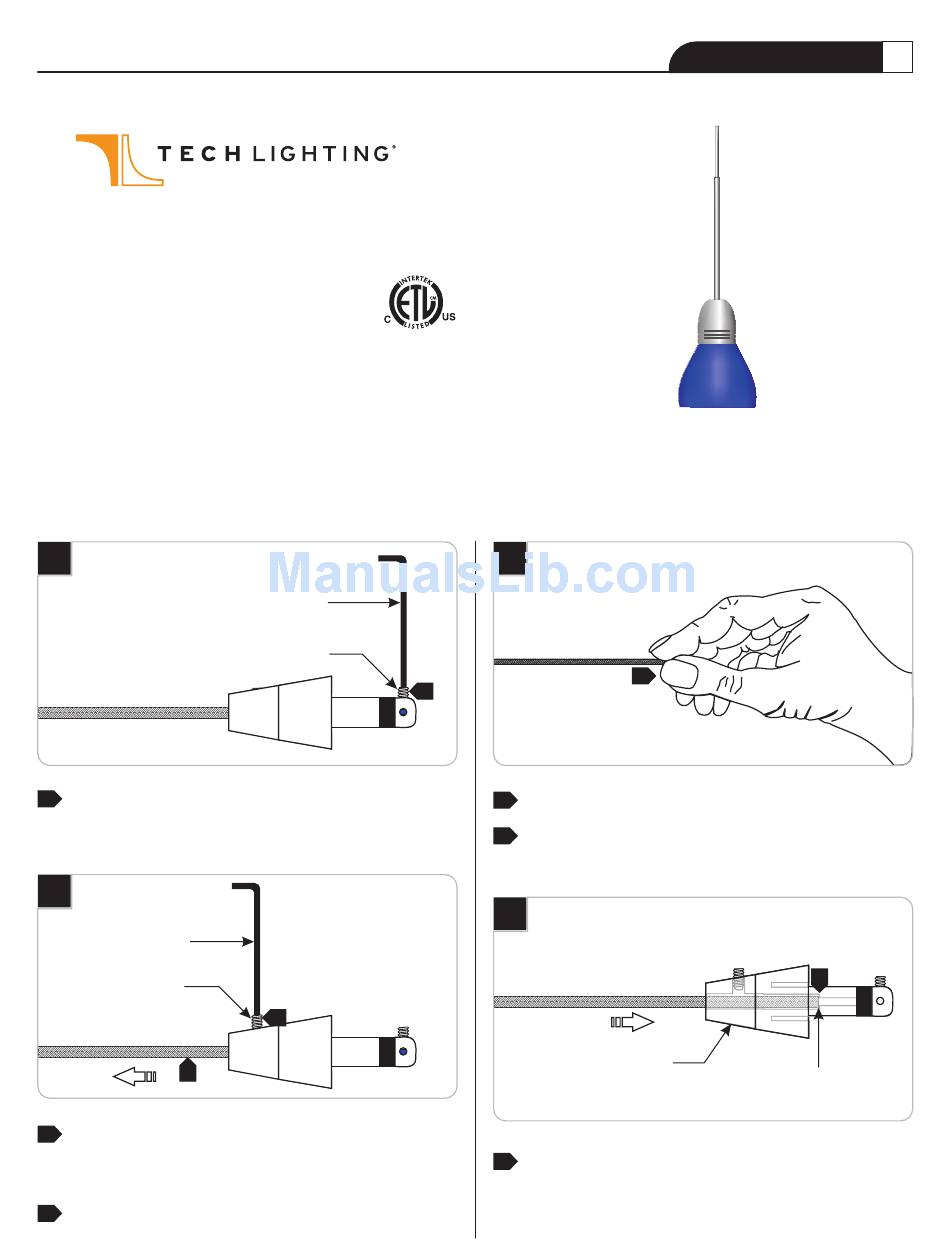

Adjust The Fixture Height
1A
1/16 ALLEN WRENCH
1
Back out (do not remove) the #6-32 set screw on tip of
the connector with the provided 1/16 Allen wrench.
1B
1/16 ALLEN WRENCH
#6-32 OVAL HEAD
SET SCREW
3
Back out (do not remove) the #6-32 oval head set screw
2
on the conical connector with the provided 1/16 Allen
wrench.
3
Pull the coaxial cable out.
#6-32 SET SCREW
2
1C
1
Cut the coaxial cable to the desired length.
4
5
Gently twist the end of the coaxial cable between thumb
and forefinger.
1D
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical
connector. The coaxial cable will come to a stop point
after being inserted 3/4" into the conical connector.
1
700FJTRPN_
5
6
OUTER WRAPPED
WIRE STOPS HERE
920FJTRPD
1.8
