Dean 1824G&2424G Specification Sheet

Dean
™
®
1824G & 2424G
Flat-Bottom Gas Fryers
Models
1824G

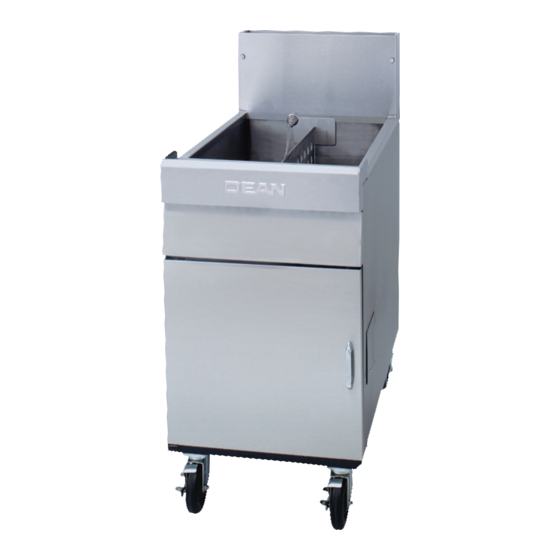

1824G flat-bottom fryer
shown with optional pan divider,
marine edge top cap and casters.

Specifications

Designed for delicate liquid-batter
products and volume frying
Dean's flat-bottom fryers are specifically
designed for high-volume frying of liquid
batter and tempura-style foods. For this free-
floating frying need, the wide shallow frying
area of the flat-bottom fryer is a must. Delight
your customers with a wide variety of fried
foods from tortilla chips to taco shells to fish
fillets and shellfish. The broad surface area
has the capacity to meet peak demands for
product.
Minimize your energy bill with our innovative
induced-draft burner chamber with power
exhaust system, which dramatically cuts idle
time gas usage. Oil temperature is closely
monitored with Dean's Thermatron solid-state
temperature control system. The low ratio of
oil-to-surface area ensures oil movement for
consistent frying and low oil consumption.
Combine more efficiency with an expansive
18" x 24" (46 x 61 cm) or 24" x 24" (61 x 61
5489 Campus Drive Tel: 318-865-1711
Shreveport, LA 71129 Tel: 1-800-221-4583
USA Fax: 318-868-5987
E-mail: info@dean.enodis.com
2424G

Standard Features

• Tube-type frypot design
• 1824G -- 70 lb. (35 liter) oil capacity
• 2424G -- 90 lb. (45 liter) oil capacity
•
120,000 Btu/hr. input (30,600 kcal)
(35.2 kw)
• Frying area 18" x 24" (46 x 61 cm) or
24" x 24" (61 x 61 cm)
• Large surface area designed for float-type
frying
• Shallow oil depth allows for efficient
recovery and efficient oil use
• Thermatron solid-state temperature
control system
• Induced downdraft burner chamber with
power exhaust system
• Mild steel frypot
• Stainless-steel front, door, and back riser
• Painted sides
• 6" (15 cm) adjustable legs
cm) fry area to maximize your profits. With a
depth of only 3-1/2" (9 cm) in an unrestricted
area, you can cook either very large products
or large quantities of smaller products. The
smooth, flat-bottom design accommodates
hand utensils for easy product removal; and
the mild-steel vessel bottom prevents stick-
ing. Fry baskets may also be used to cook
French fries, appetizers or other foods.
Build on our versatility by combining two or
more fryers, either flat-bottom or cool zone
units, into a battery. To keep foods hot, add
an optional holding station and food warmer
to a matching cabinet. For increased oil qual-
ity, add a Dean Super Cascade built-in oil fil-
tration system. This convenient, easy filtering
process encourages frequent filtering -- a criti-
cal part of maximizing oil life, especially with
trans fat-free oils.
The fryers carry a one-year warranty -- parts
and labor with a four-year limited warranty on
the frypot.
http://dean.enodis.com
Bulletin No. 830-0046 9/08
Project
Item
Quantity
CSI Section 11400
Approval
Date
Options & Accessories
Matching cabinet, holding station
and food warmer available with and
without filtration
Oil filtration system - Super Cascade
(UFF)
Electronic ignition
Automatic melt cycle
Boil-out mode
Special 38" (97 cm) stack height for
low-height hood
Front flue deflector
Batter pan with lid
Marine front edge
Crumb tray rear mount
Perforated pan divider
Stainless-steel sides
Casters
