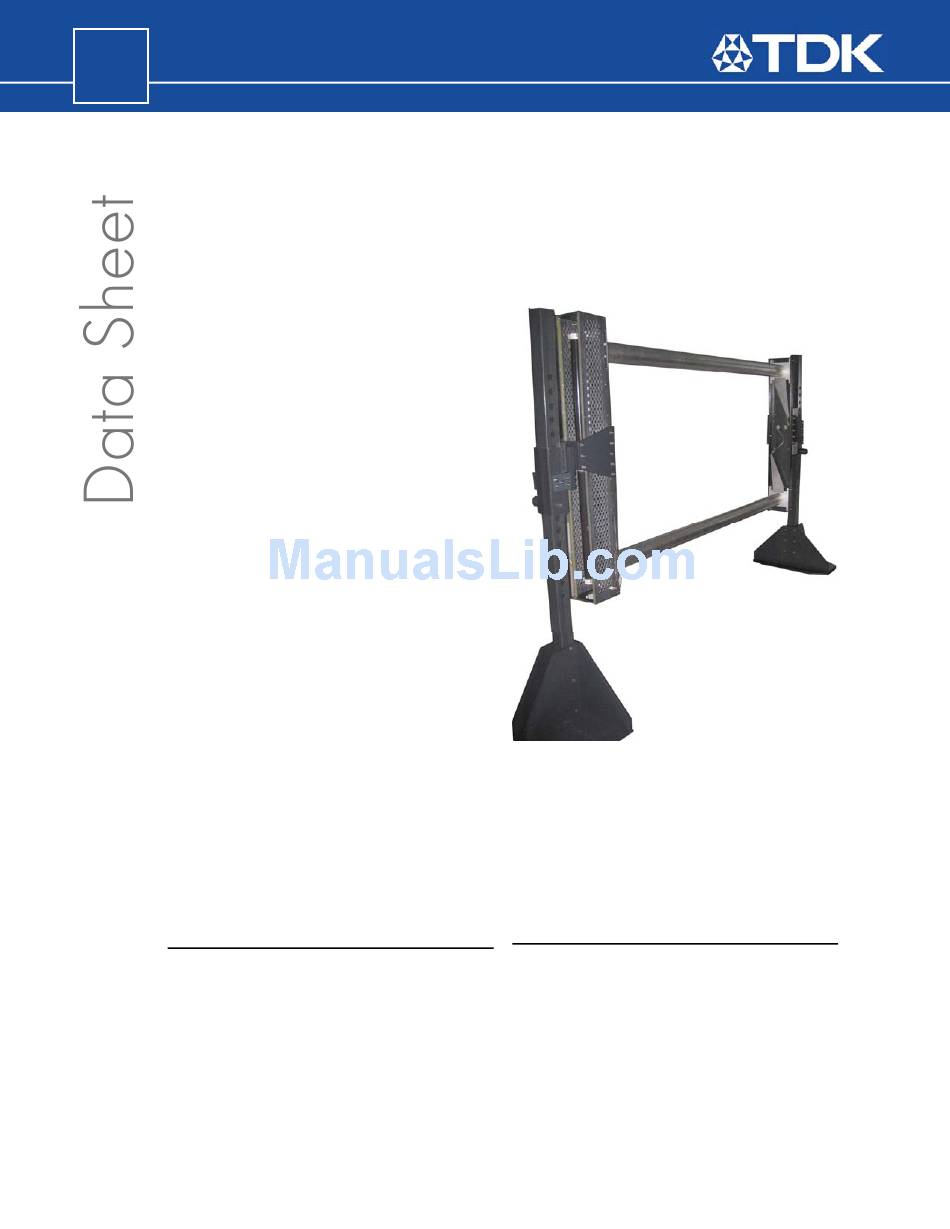

TDK EFG-02 Datasheet

P
PRODUCTS
EFG-02
Product Overview
Performance
line type electric/magnetic field generator which
provides an unprecedented level of flexibility in the
generation of controlled, high-intensity electric and
magnetic fields over the frequency range of 10
kHz to 100 MHz. It is capable of generating over
500 V/m over its entire operating frequency range
using 2.5 kW amplifier and provides a large uni-
form field area, thus accommodating a very large
variety of DUTs.
Non-Radiating
radiating device, the electric and magnetic fields
are essentially confined to the DUT area. Also, it
provides extremely low VSWR over its entire oper-
ating range thus reducing stress on the amplifier.
Unique Design
the EFG-02 greatly facilitates the characterization
of unwieldy DUTs. Large or bulky DUTs can simply
be wheeled or placed under the system with the
aid of equipment (such as a pallet jack or forklift).
Features
10kHz – 100 MHz operating range

High power field generator

Up to 500 V/m RSM

Low VSWR

Adjustable height for optimizing performance

1101 Cypress Creek Road  Cedar Park, Texas 78613, USA  1-512-258-9478  FAX 1-512-258-0740
E-Field Generator
The TDK EFG-02 is a transmission-
Because the EFG-02 is a non-
The unique mechanical design of
The ability generate controlled, high-intensity
electric and magnetic fields over the frequency
range of 10 kHz to 100 MHz and a unique
design make the EFG-02 the best choice for
conducting immunity testing on large, heavy,
or bulky DUTs.
Applications
Immunity testing on Large, heavy or bulky

DUTs
