TDK BHP8402FS Specifications

Thermal Print Heads
For Barcode and Label Printers
BHP8402FS

FEATURES

• High-speed type with five-stage LATCH heat history control
[FS type]
• New-BP protective layer with excellent abrasion resistance is
used.

APPLICATIONS

• Barcode and label printers
• Bank ATMs
• Amusements
• Ticket-vending machines
• POS terminals

PRODUCT SPECIFICATIONS

HEATING ELEMENT SPECIFICATIONS

Number of heating elements
Dot density
Length of heating element array
(effective)
Heating element average resistance
Glaze type

DRIVE CONDITIONS

Applied platen diameter
Paper-feed speed
Data transfer frequency
Driver power supply

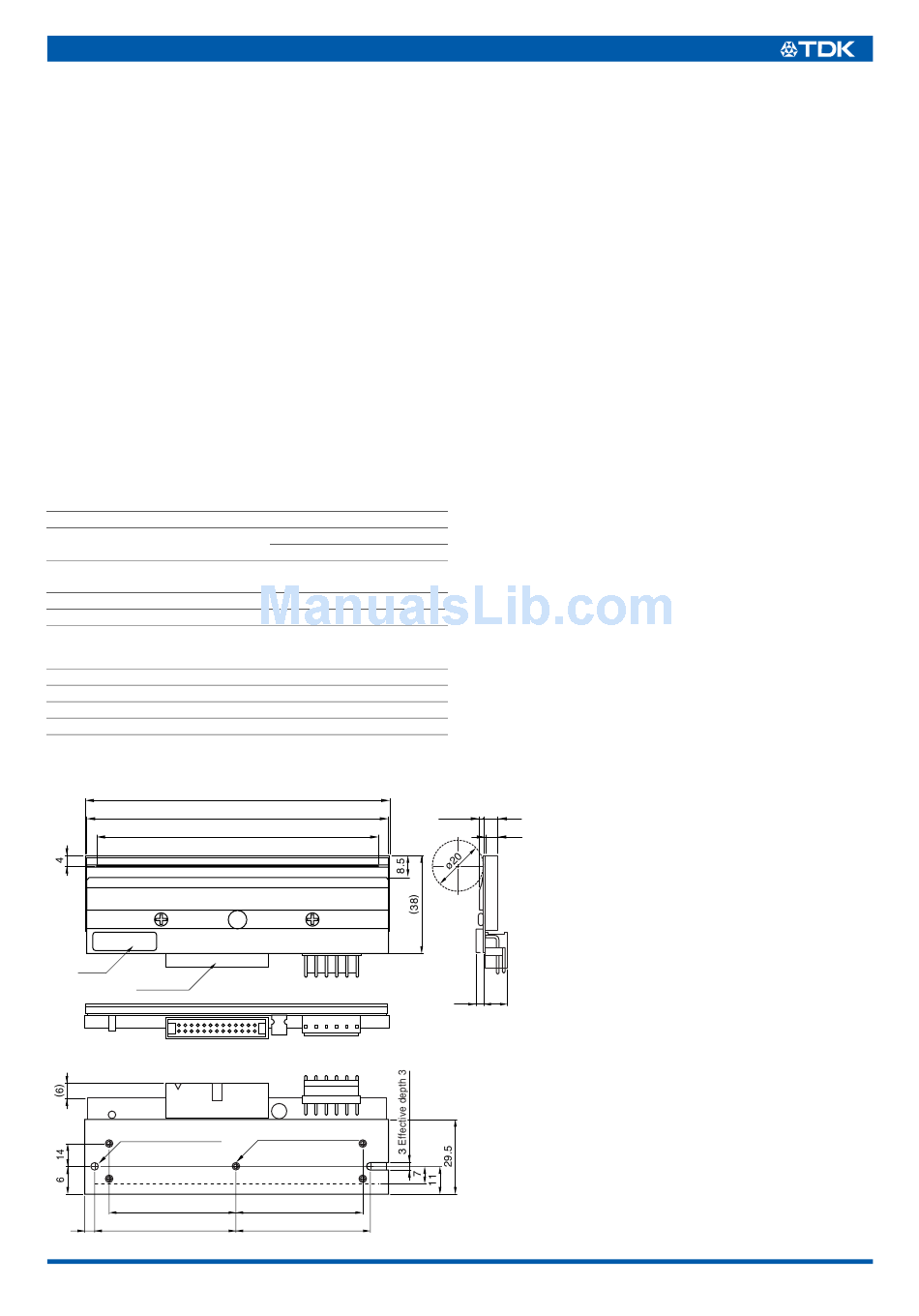

SHAPES AND DIMENSIONS

112 ( Effective printing width )
Label
Thermistor
Connector HIF3F-26PA-2.54DS ( 71 )( HIROSE )
ø3 Effective depth 3
50
4
56
• All specifications are subject to change without notice.
(dots) 1792
(dots/mm) 16
(DPI) 406
(mm) 112
(Ω) 2300
Partial glaze
(mm) ø20max.
(mm/sec) 150max.
(MHz) 8max.
(V) 4.5 to 5.5
120
( 119 )
Connector B6PS-VH ( LF )( SN )( JST )
5-M3 Effective depth 3
( Heater line )
50
53
2max. 6.0
5.0
( 3 ) ( 10 )
Dimensions in mm
001-01 / 20090220 / eg21_bhp8402fs.fm
(1/1)
