TDK BHP6321FU Specifications

Thermal Print Heads
For Barcode and Label Printers
BHP6321FU
FEATURES
• Light series supporting low- to medium-speed printing
• High-speed type with five-stage LATCH heat history control
• New-BP protective layer with excellent abrasion resistance is
used.
APPLICATIONS
• Barcode and label printers
• Ticket-vending machines
• POS terminals
PRODUCT SPECIFICATIONS
HEATING ELEMENT SPECIFICATIONS
Number of heating elements
Dot density
Length of heating element array
(effective)
Heating element average resistance
Glaze type
DRIVE CONDITIONS
Applied platen diameter
Paper-feed speed
Data transfer frequency
Driver power supply

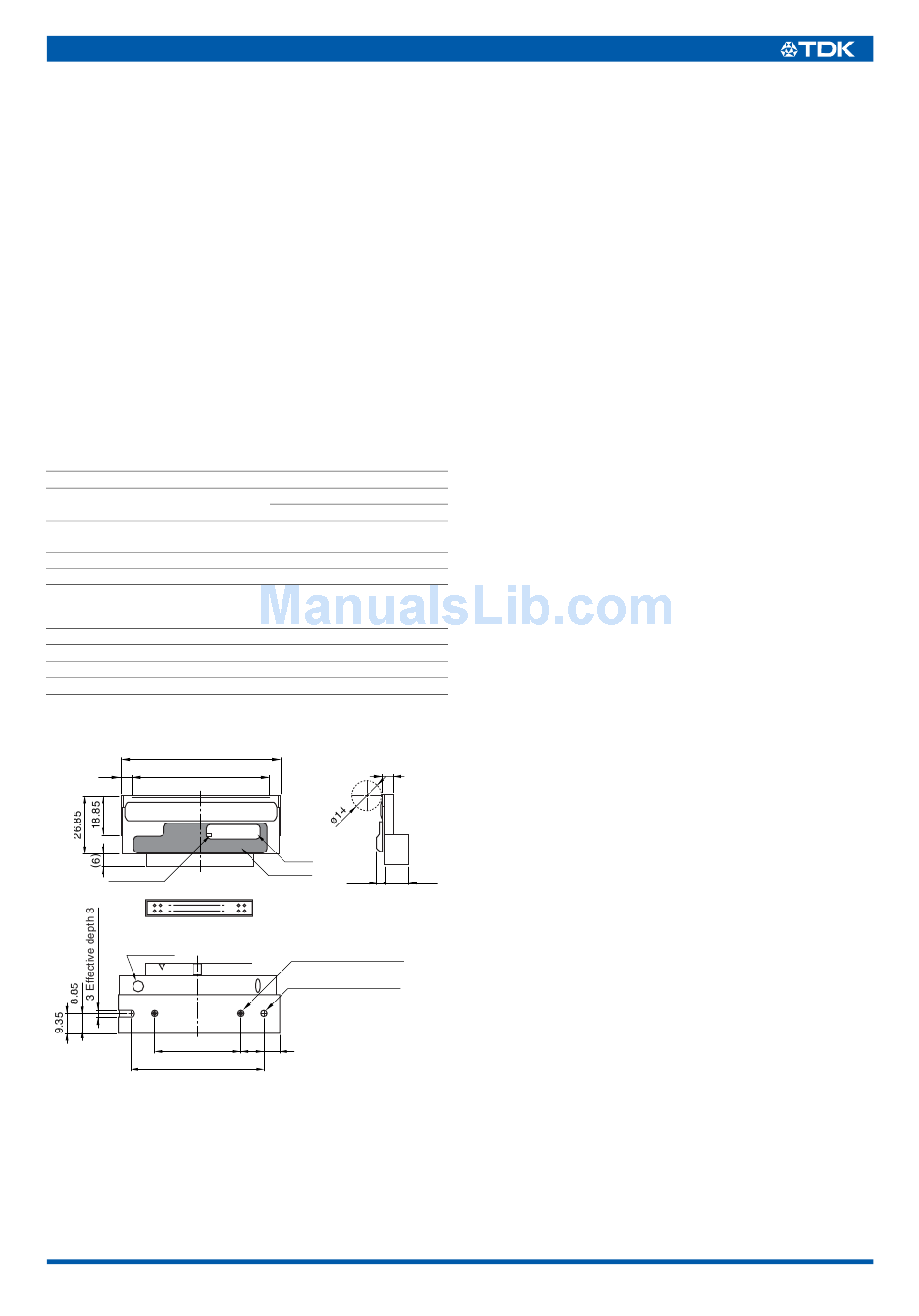

SHAPES AND DIMENSIONS
74
( 5 ) 63.97 ( Heater line )
Thermistor
Capacitor
40
62
• All specifications are subject to change without notice.
(dots) 768
(dots/mm) 12
(DPI) 305
(mm) 63.97
(Ω) 1500
Partial glaze
(mm) ø14max.
(mm/sec) 200max.
(MHz) 8max.
(V) 4.5 to 5.5
5.0
Label
Insulator
( 3.5 ) ( 11 )
Connector
HIF3F-34PA-2.54DS ( 71 )( HIROSE )
2-M3 Effective depth 3
ø3.0 Effective depth 3
11 6
Dimensions in mm
001-01 / 20090220 / eg21_bhp6321fu.fm
(1/1)
