BHP4502SS

FEATURES

• Normal type with no heat history control type [SS type]
• New-BP protective layer with excellent abrasion resistance is
used.

APPLICATIONS

• Barcode and label printers
• Bank ATMs
• Amusements
• Ticket-vending machines
• POS terminals

PRODUCT SPECIFICATIONS

HEATING ELEMENT SPECIFICATIONS

Number of heating elements
Dot density
Length of heating element array
(effective)
Heating element average resistance
Glaze type

DRIVE CONDITIONS

Applied platen diameter
Paper-feed speed
Data transfer frequency
Driver power supply

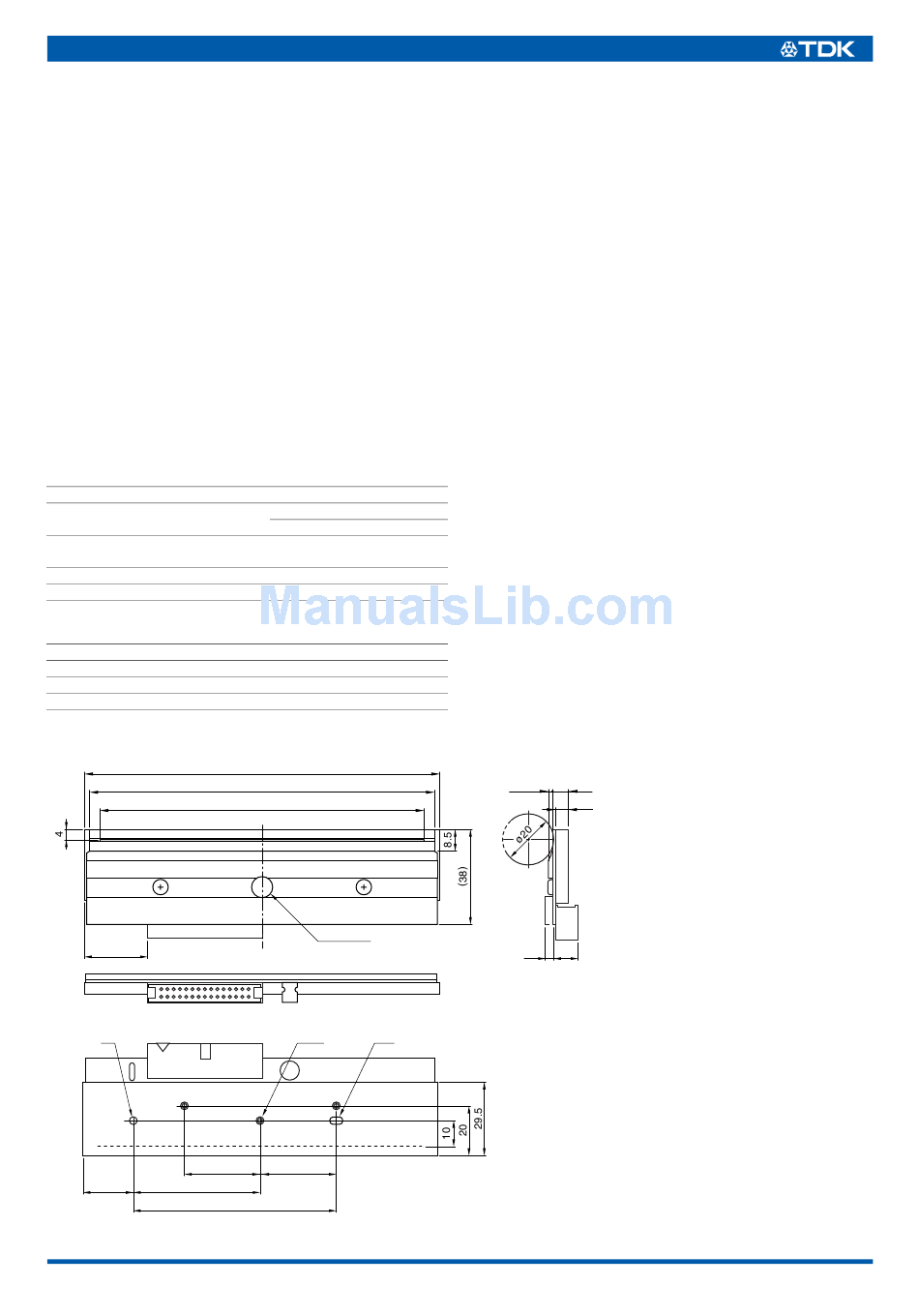

SHAPES AND DIMENSIONS

128 ( Effective printing width )
( 24 )
Connector HIF3F-30PA-2.54DS ( 71 )( HIROSE )
ø3
30
20
50
• All specifications are subject to change without notice.
(dots)
1024
(dots/mm)
8
(DPI)
203
(mm)
128
(Ω)
800
Partial glaze
(mm)
ø20max.
(mm/sec)
100max.
(MHz)
5max.
(V)
4.75 to 5.25
140
136
Thermistor
3-M3
3×5
( Heater line )
30
80
2max.
6.0
5.0
( 3 )
( 10 )
Dimensions in mm
001-01 / 20090511 / eg21_bhp4502ss.fm
(1/1)
