TDK BHP4223HS Specifications

Thermal Print Heads
For Barcode and Label Printers
BHP4223HS
FEATURES
• High-speed type with three-stage LATCH heat history control
[HS type]
• New-BP protective layer with excellent abrasion resistance is
used.
APPLICATIONS
• Barcode and label printers
• Bank ATMs
• Amusements
• Ticket-vending machines
• POS terminals
PRODUCT SPECIFICATIONS
HEATING ELEMENT SPECIFICATIONS
Number of heating elements
Dot density
Length of heating element array
(effective)
Heating element average resistance
Glaze type
DRIVE CONDITIONS
Applied platen diameter
Paper-feed speed
Data transfer frequency
Driver power supply

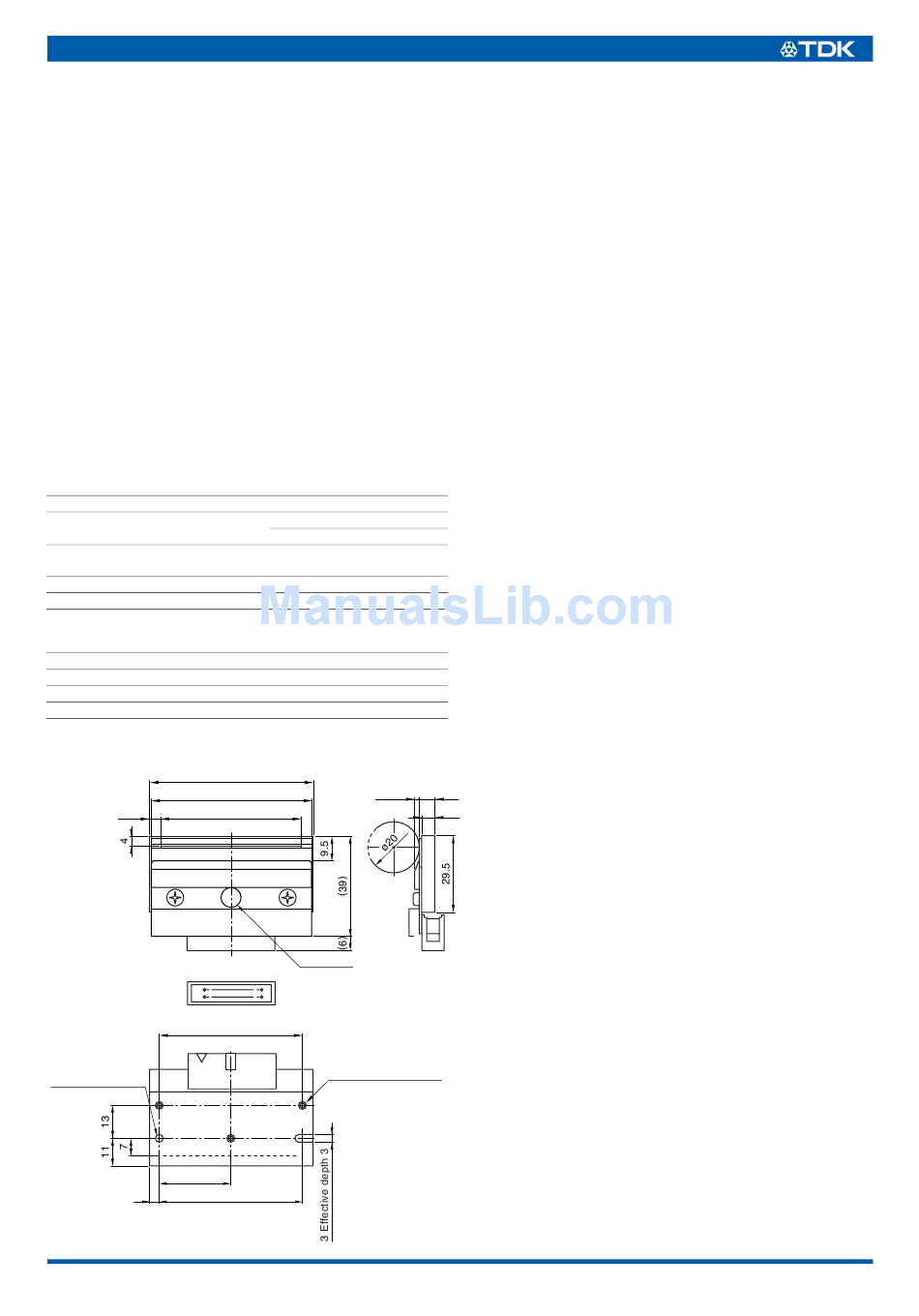

SHAPES AND DIMENSIONS
( 4.5 ) 56 ( Heater line )
3 Effective depth 3
28.5
4
• All specifications are subject to change without notice.
(dots) 448
(dots/mm) 8
(DPI) 203
(mm) 56
(Ω) 800
Partial glaze
(mm) ø20max.
(mm/sec) 200max.
(MHz) 5max.
(V) 4.5 to 5.5
65
2max.
( 64 )
Thermistor
Connector
HIF3F-26PA-2.54DS ( 71 )( HIROSE )
57
3-M3 Effective depth 3
( Heater line )
( 57 )
Dimensions in mm
6.0
5.0
001-01 / 20090511 / eg21_bhp4223hs.fm
(1/1)
