TDK HHM Series HHM1711E1 Specifications

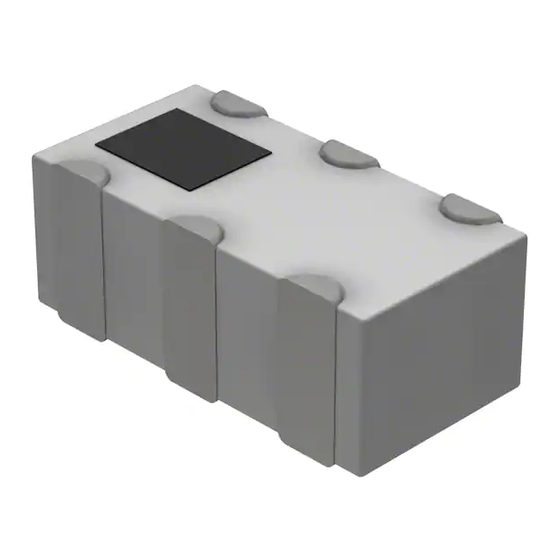

Multilayer Chip Baluns
For WiMAX
HHM Series HHM1711E1

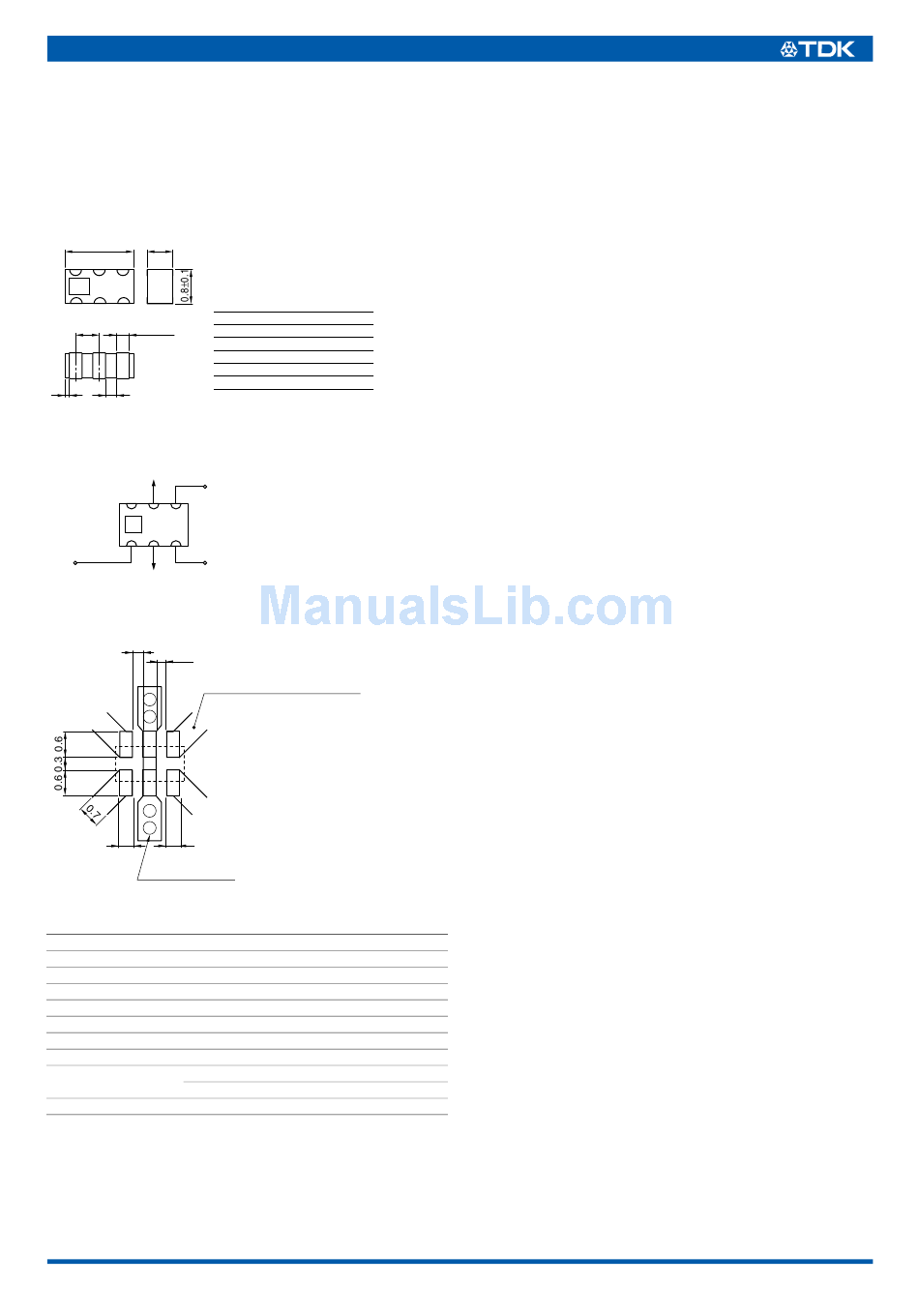

SHAPES AND DIMENSIONS
1.6±0.1 0.6±0.1
6 5 4
Terminal functions
1 2 3
1
0.55±0.1 0.3±0.1
2
3
4
5
6
0.1±0.1 0.25±0.1
Dimensions in mm
CIRCUIT DIAGRAM
6 5 4
Unbalanced Balanced
input output
50Ω 100Ω
1 2 3
RECOMMENDED PC BOARD PATTERNS
0.25
0.25
This width is 50Ω.
Micro-strip line for 0.4mm thick
glass-epoxy substrate.
6 5 4
1 2 3
0.3
0.3
ø0.3 Through-hole
ELECTRICAL CHARACTERISTICS
Unbalanced impedance
Balanced impedance
Frequency range
Unbalanced port return loss
Phase imbalance at balanced port
Amplitude imbalance at balanced port
Insertion loss
Power capacity
Operating
Temperature range
Storage
Packaging style and quantities
•
Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and
specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
Unbalanced port
GND or DC feed+ RF GND
Balanced port
Balanced port
GND
N.C.
Dimensions in mm
50Ω
100Ω
2 300 to 2 700MHz
10dB min.
180±12deg
0±1.5dB
1.2dB max.
0.5W max.
–40 to +85°C
–40 to +85°C
4000pieces/reel
Conformity to RoHS Directive
001-02 / 20080106 / e751_hhm1711e1.fm
(1/2)
