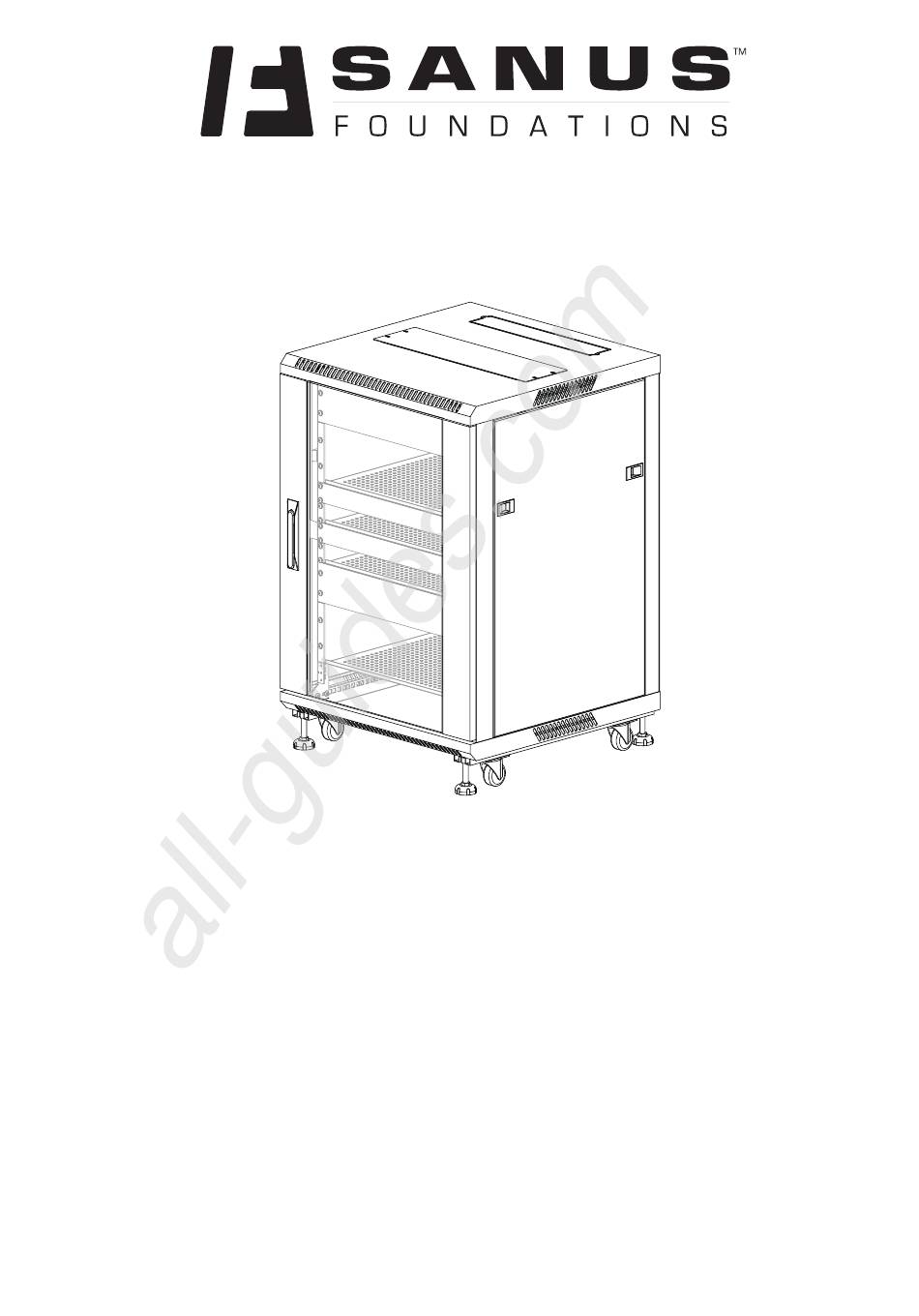

Sanus CFR115 Manual

Hide thumbs

page of 28

/ 28
Bookmarks

Quick Links

Download this manual

All manuals and user guides at all-guides.com

CFR115 & CFR127

Sanus Systems

2221 Hwy 36 West

Saint Paul, MN 55113 USA

Customer Service

Americas: 800-359-5520 • 651-484-7988 • info@sanus.com

Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com

Asia Paciﬁ c: 86 755 8996 9226 • sanus.ap@milestone.com

sanus.com

All other brand names or marks are used for identiﬁ cation purposes and are trademarks of their respective owners.

6901-002020 <01>

Need help?

Do you have a question about the CFR115 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanus CFR115

Page 1 Saint Paul, MN 55113 USA Customer Service Americas: 800-359-5520 • 651-484-7988 • info@sanus.com Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com Asia Paciﬁ c: 86 755 8996 9226 • sanus.ap@milestone.com sanus.com ©2010 Milestone AV Technologies, a Duchossois Group Company.
Page 2 Die Gesamtbelastbarkeit für das CFR127 beträgt 340 kg. Jedes 3-HE- Gehäusefach kann bis zu 36,3 kg tragen und jedes 1-HE-Gehäusefach kann bis The total weight capacity for the CFR115 is 226.8 kg (500 lbs), each 3U shelf zu 13,6 kg tragen.
Page 3 36,3 kg e cada prateleira 1U suporta até 13,6 kg. può sostenere fi no a 36,3 kg (80 libbre) e ogni mensola 1U fi no a 13,6 kg (30 A capacidade de peso total do CFR115 é de 226,8 kg. Cada prateleira 3U libbre).
Page 4 Den totala vikten som CFR127 klarar är 340 kg, varje3U-hylla klarar upp till 36,3 kg och varje 1U-hylla upp till 13,6 kg. Den totala vikten som CFR115 klarar är 226,8 kg, varje3U-hylla klarar upp till 36,3 kg och varje 1U-hylla upp till 13,6 kg.
Page 5 Celková kapacita CFR127 je 340 kg, každá police 3U unese až 36,3 kg a každá つにつき13.6 kgまで支えることができます。 police 1U unese až 13,6 kg. CFR127の総耐荷重は226.8 kgで、3U棚は1つにつき36.3 kgまで、1U棚は Celková kapacita CFR115 je 226,8 kg, každá police 3U unese až 36,3 kg a každá 1つにつき13.6 kgまで支えることができます。 police 1U unese až 13,6 kg. 警告：...
Page 6 Sanus Systems. ¡No utilice nunca piezas Insérez la clé dans le verrou de la porte et tournez dans le sens horaire, deterioradas! tirez sur la poignée de la porte et tournez dans le sens antihoraire.
Page 7 Servizio Clienti di Sanus Systems. Non forhandler; kontakt Sanus Systems kundeservice. Brug aldrig dele, som er...
Page 8 Przed rozpoczęciem montażu sprawdź kompletność i stan wszystkich いでください części. W razie braków lub uszkodzenia, nie zwracaj towaru do sprzedawcy; 付属品はラック内部にあります。以下の方法で取り出すことができま skontaktuj się z obsługą klienta fi rmy Sanus Systems. Nigdy nie używaj す。 uszkodzonych części! サイドパネルを外して、鍵を取り出します。 Części znaleźć można wewnątrz szafki. Aby uzyskać dostęp do części, należy: アロックに鍵を差し込み、時計回りの方向に回します。ドアハンド...
Page 9 All manuals and user guides at all-guides.com 随带的部件和硬件开始组装前，请验证所有部件皆包含在内且无受损。若有任何部件丢失或受损，请勿将该部件返还经销商；请联系 Sanus Systems 客户服务中心。请勿使用受损部件配件位于机架内部。要拿到这些配件：移去侧板拿到钥匙。将钥匙插入门锁，并顺时针转动；外拉门把，并逆时针转动。打开门，拆下配件。警告本产品包含小型项目，若不慎吞食，存在窒息危险。请将此类项目远离儿童放置！随带有硬件和多项安装配置步骤。看到该符号时，请根据需要选择正确的配置。并非随带的所有硬件都会用到。 6901-002020 <01>...
Page 10 All manuals and user guides at all-guides.com [01] x 1 [02] x 2 [03] x 4 [04] x 4 [05] x 16 6901-002020 <01>...
Page 11 All manuals and user guides at all-guides.com This page intentionally left blank. Denne side er bevidst tom. Page laissée vierge intentionnellement. Denna sida har avsiktligt lämnats tom. Diese Seite wurde absichtlich leer gelassen. Данная страница намеренно оставлена пустой. Esta página se dejó en blanco intencionalmente. Ta strona została celowo pozostawiona pusta.
Page 12 All manuals and user guides at all-guides.com FORSIKTIG: Kontroller at racken står vannrett for å Install feet [03] and castors [04] (optional). Adjust the feet [03] to level the unngå mulig personskade eller materiell skade. rack. CAUTION: Montér fødder [03] og møbelhjul [04] (valgfrit). Justér fødderne [03], indtil To avoid potential injury or property møblet er plant.
Page 13 All manuals and user guides at all-guides.com [01] [03] [04] [05] [03]x4 [04]x4 [05]x16 6901-002020 <01>...
Page 14 All manuals and user guides at all-guides.com Remove cable access panels for cable management. Fjern kabelpanelerne for kabelstyring. Retirez les panneaux de gestion des câbles. Avlägsna panelerna för kabeltillgång för kabelhantering. Entfernen Sie die Kabelabdeckung, um auf die Kabel zuzugreifen. Для...
Page 15 All manuals and user guides at all-guides.com 6901-002020 <01>...
Page 16 All manuals and user guides at all-guides.com Verify that the grounding strap has been installed. Kontrollér, at jordforbindelsesstroppen er monteret. If the grounding strap has not been installed, install the strap now by Hvis jordforbindelsesstroppen ikke er monteret, skal den monteres nu ved at attaching one end of the ground wire to the door ground stud, and the other fastgøre den ene ende af jordkablet til jordknoppen på...
Page 17 All manuals and user guides at all-guides.com 6901-002020 <01>...
Page 18 All manuals and user guides at all-guides.com Remove the venting panel for additional ventalation. Αφαιρέστε το πλαίσιο εξαερισμού για πρόσθετο εξαερισμό CAUTION: ΠΡΟΣΟΧΗ: To avoid damage to your components Για την αποφυγή πρόκλησης βλάβης due to overheating, ensure that there is adequate space between each unit στις...
Page 19 All manuals and user guides at all-guides.com 拆去通风盖板，以便更好通风。 Ek havalandırma için havalandırma panelini sökün. 注意 DİKKAT: 为了避免由于过热损坏您的部件，确保各单元之间 Aşırı ısınma nedeniyle bileşenlerinizin zarar 有足够的空间获取适当的气流。请确保机架内的工作温度不超过 40°C görmesini önlemek için, üniteler arasında düzgün hava akışına izin verecek (104°F)，这一点非常重要。 yeterli boşluğun bulunduğundan emin olun. Rafın içinde 40°C (104°F)’ı aşmayan çalışma sıcaklığının korunması...
Page 20 All manuals and user guides at all-guides.com Adjust rack rails. It is recommended that you remove the shelves and blanking Justér møbelskinnerne. Det anbefales at fj erne hylderne og panelerne, før panels before adjusting the rails. Be sure to adjust the top and bottom, and skinnerne justeres.
Page 21 All manuals and user guides at all-guides.com 6901-002020 <01>...
Page 22 All manuals and user guides at all-guides.com Adjust shelves and blanking panels. Justera hyllor och utfyllnadspaneler. NOTE: Align the bottom of the shelf or blanking panel [B] with the lines [L] on OBS: Rikta in undersidan av hyllan eller utfyllnadspanelen [B] efter linjerna [L] the rack rail.
Page 23 All manuals and user guides at all-guides.com 6901-002020 <01>...
Page 24 All manuals and user guides at all-guides.com Remove front door (A), side panels (B), and/or back panel (C). Ta av frontdøren (A), sidepanelene (B) og/eller bakpanelet (C). CAUTION: FORSIKTIG: To avoid damage to the grounding wire, Unngå skade på jordledningen ved å remove the grounding wire before removing the front door.
Page 25 All manuals and user guides at all-guides.com 6901-002020 <01>...
Page 26 All manuals and user guides at all-guides.com Load your components. Τοποθετήστε τις συσκευές σας. CAUTION: ΠΡΟΣΟΧΗ: To prevent tipping, always load the rack Για την αποφυγή ανατροπής, να from the bottom up, and load the heaviest item in the rack fi rst; 50% of the φορτώνετε...
Page 27 All manuals and user guides at all-guides.com 安放您的部件。 Bileşenlerinizi yükleyin. 注意 DİKKAT: 为防止机架倾翻，请务必从机架底部开始依次向上安放 Devrilmesini önlemek için rafı, daima, alttan 部件，请先安放最重的部件；并确保 50% 总重量位于机架 1/3 以下的位 üste doğru yükleyin ve rafa, önce en ağır parçaları koyun; toplam yükün 置上。 %50’si, alt kısmında rafın 1/3’lük bölümüne monte edilmiş olmalıdır. コンポーネントを設置します。...
Page 28 All manuals and user guides at all-guides.com Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), Milestone AV Technologies og dets tilknyttede selskaper og datterselskaper (samlet kalt “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the har til hensikt å...
