Dielectric Chip Band Pass Filters
For W-CDMA 2GHz
CF Series CF61A7001
FEATURES
• Compact and high performance 3-pole filter.
• High relieability(Ceramic block filter).
• SMD type.

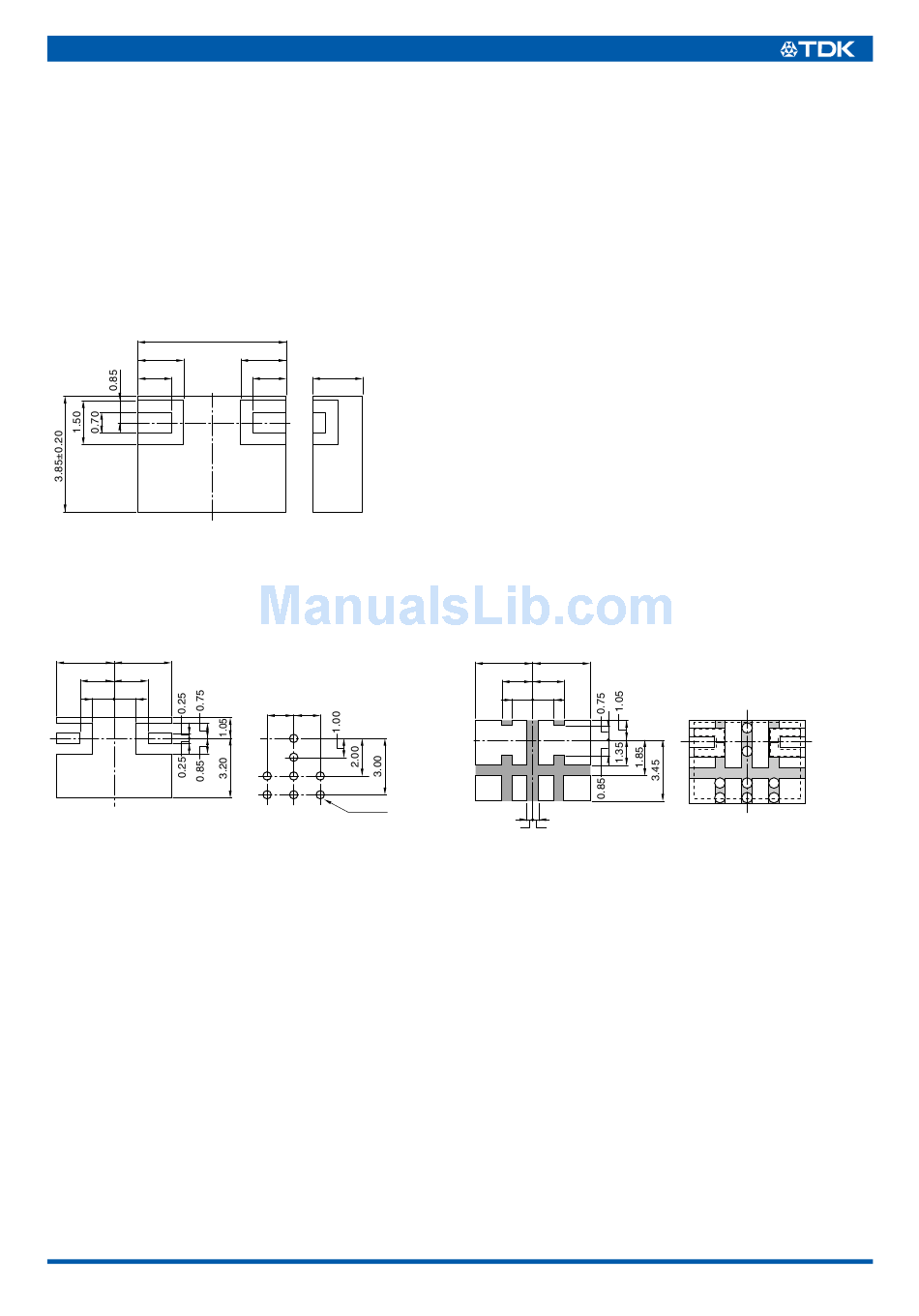

SHAPES AND DIMENSIONS
5.40±0.20
1.50
1.10
(Bottom view)
RECOMMENDED PC BOARD PATTERNS
LAND
2.90
2.90
1.70
1.70
1.10
1.10
•
Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and
specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
1.50
1.10
1.70max.
(Side view)
Tolerance: ±0.20
Dimensions in mm
1.50 1.50
8-ø0.40
Tolerance: ±0.20
Dimensions in mm
RESIST
2.90
2.90
1.60
1.60
1.10
1.10
0.30
0.30
Conformity to RoHS Directive
Tolerance: ±0.20
Dimensions in mm
001-03 / 20080114 / e711_cf61a7001.fm
(1/2)
