TRIVIEW Rack Mount Kit TRK-191 Installation Instruction

TRIVIEW
Warning: 1. At least two persons are necessary to mount the monitor on the rack.
2. Do not use over force when fastening the screws.
TRK-191 used for mounting 19" CRT color monitors on the 19" standard rack, compatible monitor
model: TCM-1901, VT19726dvr.
Instructions:
1. Take off 6 screws from left and right side of the monitor, (these screws not used again).
2. Install TRK-191 bracket to left and right side of the monitor using the provided screws (M6,
16mm Long, flat head, phillips) in the package, 3 each side, see FIG. 2.
3. Mount the whole set onto the rack frame
head, phillips drive. (these screws are provided by rack manufacturer) , M5 screws secure at top,
bottom and middle position, see FIG. 3 below.

Notes:

1. Standard 19" open rack model: TOR-1901) and cabinet rack (model: TCR-1901) are available in
stock.
2. The gap between monitors or other equipments can be covered by blank panel or vent panel, 1U,
2U, 3U available. (Contact salesperson for detail)

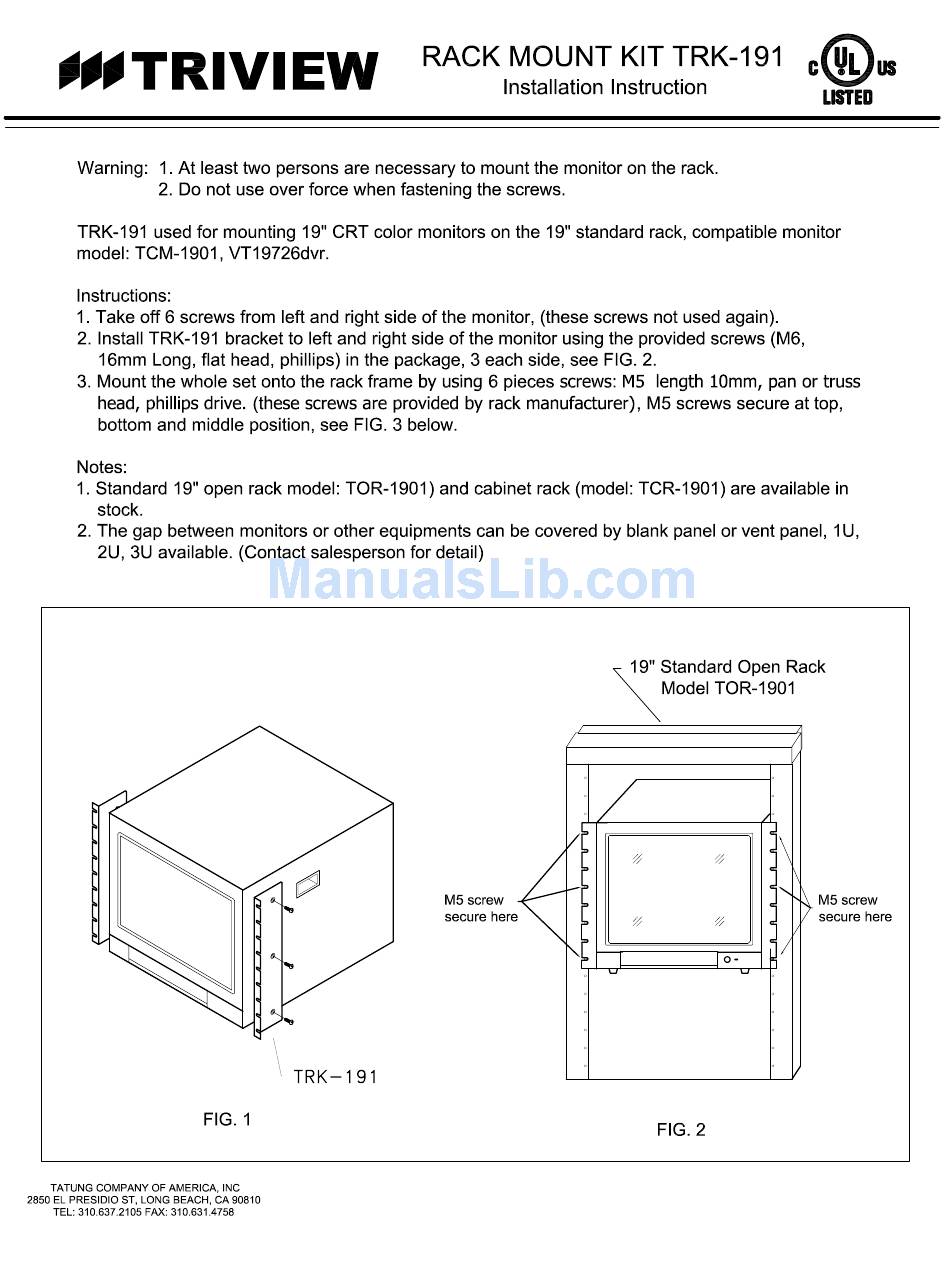

FIG. 1
TATUNG COMPANY OF AMERICA, INC
2850 EL PRESIDIO ST, LONG BEACH, CA 90810
TEL: 310.637.2105 FAX: 310.631.4758
RACK MOUNT KIT TRK-191
by using 6 pieces
M5 screw
secure here
TRK-191
Installation Instruction
M5 length 10mm, pan or truss
screws :
19" Standard Open Rack
Model TOR-1901
FIG. 2
M5 screw
secure here
