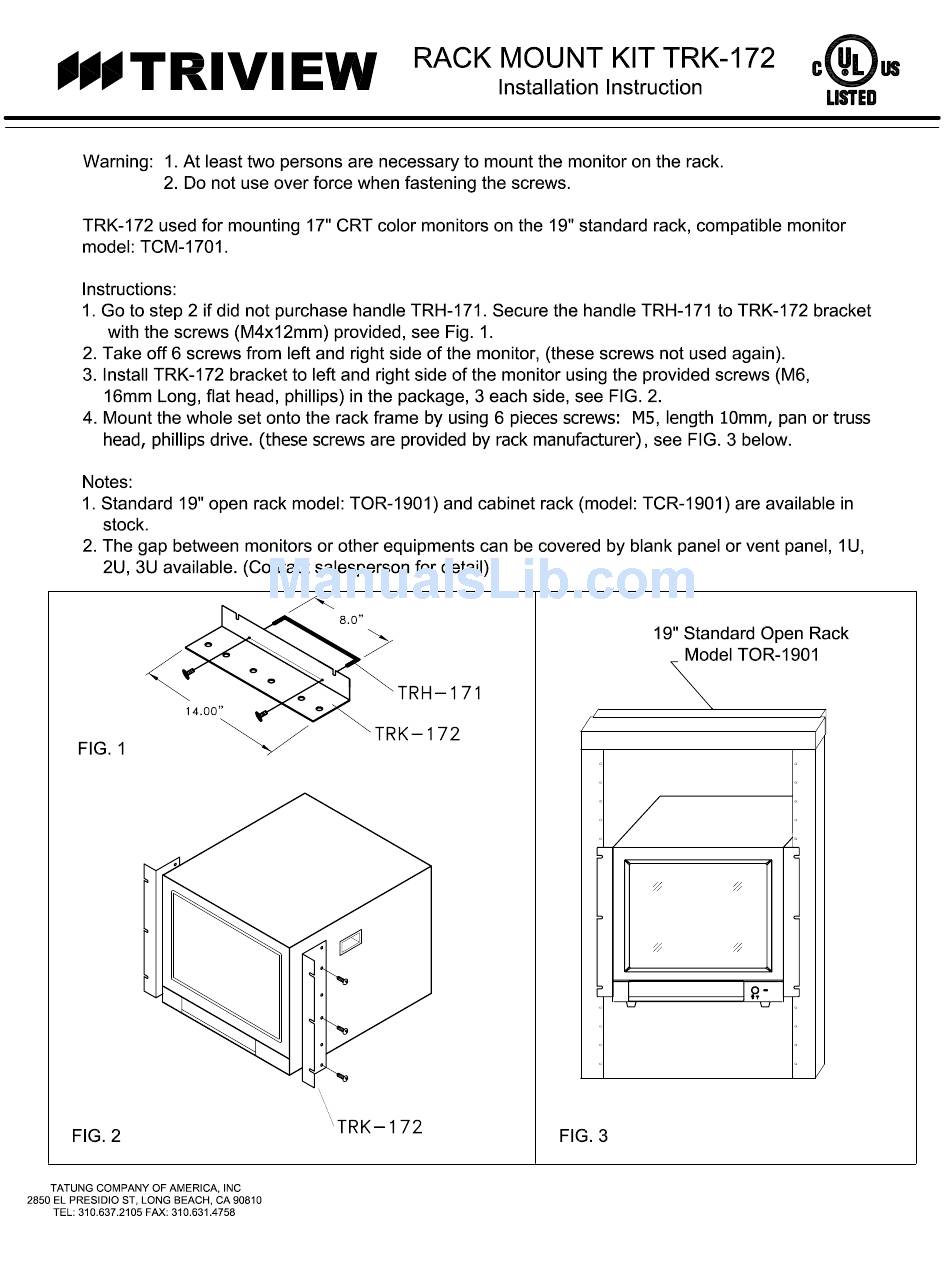

TRIVIEW Rack Mount Kit TRK-172 Installation Instruction

TRIVIEW
Warning: 1. At least two persons are necessary to mount the monitor on the rack.
2. Do not use over force when fastening the screws.
TRK-172 used for mounting 17" CRT color monitors on the 19" standard rack, compatible monitor
model: TCM-1701.

Instructions:

1. Go to step 2 if did not purchase handle TRH-171. Secure the handle TRH-171 to TRK-172 bracket
with the screws (M4x12mm) provided, see Fig. 1.
2. Take off 6 screws from left and right side of the monitor, (these screws not used again).
3. Install TRK-172 bracket to left and right side of the monitor using the provided screws (M6,
16mm Long, flat head, phillips) in the package, 3 each side, see FIG. 2.
4. Mount the whole set onto the rack frame
head, phillips drive. (these screws are provided by rack manufacturer)

Notes:

1. Standard 19" open rack model: TOR-1901) and cabinet rack (model: TCR-1901) are available in
stock.
2. The gap between monitors or other equipments can be covered by blank panel or vent panel, 1U,
2U, 3U available. (Contact salesperson for detail)
14.00"
FIG. 1
FIG. 2
TATUNG COMPANY OF AMERICA, INC
2850 EL PRESIDIO ST, LONG BEACH, CA 90810
TEL: 310.637.2105 FAX: 310.631.4758
RACK MOUNT KIT TRK-172
Installation Instruction
by using 6 pieces screws: M5
8.0"
TRH-171
TRK-172
TRK-172
length 10mm, pan or truss
,
, see FIG. 3 below.
19" Standard Open Rack
Model TOR-1901
FIG. 3
