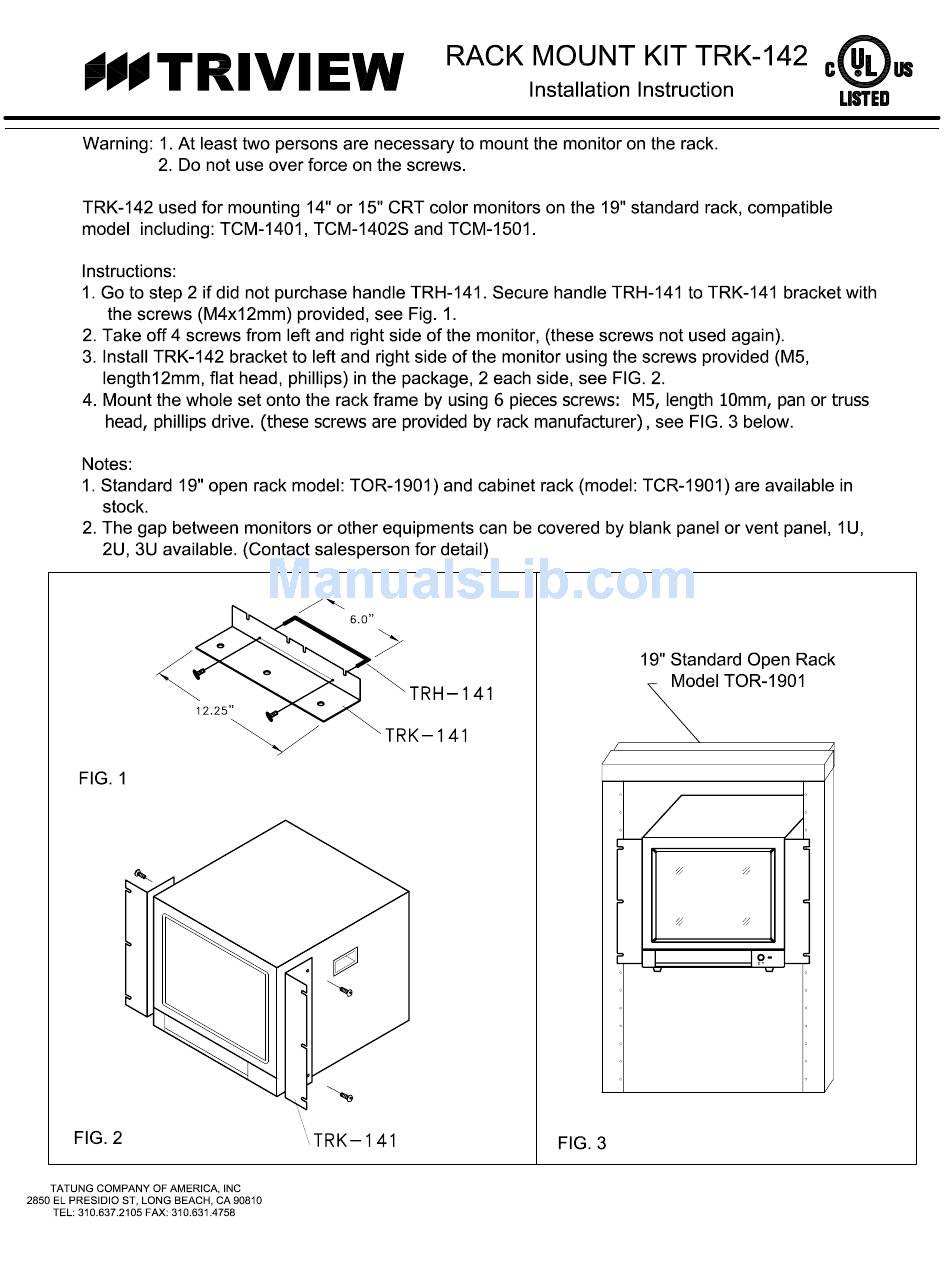

TRIVIEW Rack Mount Kit TRK-141 Installation Instruction

TRIVIEW
Warning: 1. At least two persons are necessary to mount the monitor on the rack.
2. Do not use over force on the screws.
TRK-142 used for mounting 14" or 15" CRT color monitors on the 19" standard rack, compatible
model including: TCM-1401, TCM-1402S and TCM-1501.

Instructions:

1. Go to step 2 if did not purchase handle TRH-141. Secure handle TRH-141 to TRK-141 bracket with
the screws (M4x12mm) provided, see Fig. 1.
2. Take off 4 screws from left and right side of the monitor, (these screws not used again).
3. Install TRK-142 bracket to left and right side of the monitor using the screws provided (M5,
length12mm, flat head, phillips) in the package, 2 each side, see FIG. 2.
4. Mount the whole set onto the rack frame
head, phillips drive. (these screws are provided by rack manufacturer)

Notes:

1. Standard 19" open rack model: TOR-1901) and cabinet rack (model: TCR-1901) are available in
stock.
2. The gap between monitors or other equipments can be covered by blank panel or vent panel, 1U,
2U, 3U available. (Contact salesperson for detail)
12.25"
FIG. 1
FIG. 2
TATUNG COMPANY OF AMERICA, INC
2850 EL PRESIDIO ST, LONG BEACH, CA 90810
TEL: 310.637.2105 FAX: 310.631.4758
RACK MOUNT KIT TRK-142
by using 6 pieces screws: M5, length 10mm, pan or truss
6.0"
TRH-141
TRK-141
TRK-141
Installation Instruction
, see FIG. 3 below.
19" Standard Open Rack
Model TOR-1901
FIG. 3
