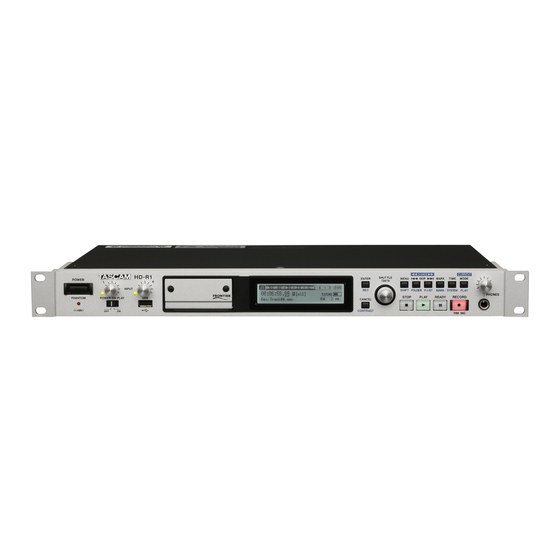

- Page 1 » D01047620A HD-R1 Professional Stereo Audio Recorder QUICK START GUIDE...
-
Page 2: Battery Recycling
CAUTION NEVER TAKE THE UNIT APART FOR ANY PURPOSE OTHER THAN TO REMOVE THE BATTERY BEFORE DISPOSAL! 1 Remove the eight top panel screws and remove the top panel. 2 Remove the button-type battery from the unit. TASCAM HD-R1... -
Page 3: Table Of Contents
... 17 ... 17 ... 18 ... 18 ... 18 ... 18 ... 18 ... 18 ... 19 ... 19 ... 20 ... 20 ... 20 ... 21 ... 21 ... 21 ... 21 ... 21 ... 22 TASCAM HD-R1... -
Page 4: 1-Main Functions And Features
• S/PDIF digital input and output • Standard jack and level knob for headphone monitoring on the front panel TASCAM HD-R1 • Records uncompressed audio in WAV format or compressed audio in MP3 format • 192 x 32 pixel LCD display with a backlight •... -
Page 5: 2-System Organization
It is important to know that the HD-R1 is limited to one level of folders for audio files. Audio files that exist in subfolders will not be visible to the HD-R1. is set to Settings ˘ Auto Markers... -
Page 6: Settings
File and folder names must be unique within their containing folder. TASCAM HD-R1 HD-R1’s play and record settings for some of the most common uses. System Settings on the CF card. This is useful for backing up the system configuration, should it need to be restored in the future. -
Page 7: 3-Preparations For Use
Connecting a LAN cable for remote control and file transfer Connect the unit using the panel. Headphones Computer External controller Power outlet PHONES keyboard to the front panel USB port. PARALLEL connector RS-232C connector on the rear TASCAM HD-R1... -
Page 8: Turning On The Power
Removing the CF card The CF card can be removed when the unit’s power is OFF or when it is not recording or playing a file. TASCAM HD-R1 To turn the power OFF, press the POWER again. This unit uses CF cards (type I and type II) for recording and playback. -
Page 9: Setting The Time
Media Tools submenu without formatting the card. 6 Press the Media The Home Screen reappears. key. ENTER SKIP , and press the SAVE CANCEL key. The screen key to return to ENTER key. MENU TASCAM HD-R1... -
Page 10: Display Screens
SHUTTLE/DATA , and press the ENTER Lockout TASCAM HD-R1 appear according to selections you make. If you press key when any menu screen is open, menu MENU mode ends and the Home Screen reappears. selection. Depending on the item, a submenu appears,... -
Page 11: 4-Recording
ENTER wheel to select SHUTTLE/DATA and press the key. ENTER wheel to select the SHUTTLE/DATA key. Use the ENTER wheel to make the setting and key again to confirm it. ENTER key to return to the CANCEL TASCAM HD-R1... - Page 12 NOTE If Analog/Mic is selected, the switches on the rear panel also need to be set. See step 13 below. TASCAM HD-R1 11 As necessary, conduct other settings related to key. recording. See “Record settings” in the Owner’s Manual for more details about those items.
-
Page 13: Standard Recording Procedures
DAW, for example. Moreover, if the unit’s playback mode is set to playlist, the files can be played back in order without an audible gap between them. 4–Recording key to start recording. PLAY keys light. PLAY key. STOP ,” “ ,” etc. Track001 Track002 key to pause recording. READY TASCAM HD-R1... -
Page 14: 5-Playback
Auto Ready function that waits at the beginning of the next track after finishing playback of a track, and an Auto Cue TASCAM HD-R1 • Press the READY playback restarts, it will begin playing from this paused position. -
Page 15: 6-Folders And Playlists
Folder, it is also where key. new files from recordings are always saved regardless of the playback mode. wheel to select Create , and press the key. ENTER ” is created and Audio01 ≤ or µ keys while SKIP key. MODE TASCAM HD-R1... -
Page 16: Creating Playlists
Use one of the following operations to set the current playlist. Using the menu to set the current playlist 1 Follow steps 1 and 2 in “Creating new playlists” to open the Playlist Menu. TASCAM HD-R1 Add files to the playlist using the following procedures 5 With “ Add Entry key. -
Page 17: 7-Marker Functions
Record Settings Menu. (See Name “Record settings” in the Owner’s Manual.) Editing markers Using the Manage Folders/Files Menu, markers can be deleted, and their positions (times) and names edited. For details see “Manage folders/files” in the Owner’s Manual. 7–Marker Functions MARK item SHUTTLE/ TASCAM HD-R1... -
Page 18: 8-System Settings
Adjust Contrast key. Then, use the ENTER SHUTTLE/DATA to adjust the display contrast. The adjusted contrast setting is retained even if the power is turned OFF. TASCAM HD-R1 SHUTTLE/DATA Settings press and hold the key. TIME With the System Settings Menu open, use the SHUTTLE/DATA items. -
Page 19: 9-Saving Settings As A Preset
4 Select the item to be edited from this screen and change it as desired. For details see “Manage folders/files” in the Owner’s Manual. NOTE After selecting a folder, it can be deleted or its name can be edited by choosing Delete Folder or Rename Folder. TASCAM HD-R1... -
Page 20: 11-Transferring Files
Port: 21 7 Click the connect button in the FTP application. In most FTP applications, the PC and its file structure should appear on the left and the CF card in the HD-R1 should appear on the right. key. ENTER ENTER 8 Use the FTP application to transfer files. -
Page 21: 12-Using The Ducking Function
Using serial control Using the port on the rear panel, you can RS-232C control the transport of this unit and make various setting externally. For details see “6–RS-232C Serial Interface” in the Owner’s Manual. Ducking ” or 13–Using External Controllers TASCAM HD-R1... -
Page 22: 14-Menu Tree
14–Menu Tree TASCAM HD-R1... - Page 23 14–Menu Tree TASCAM HD-R1...
