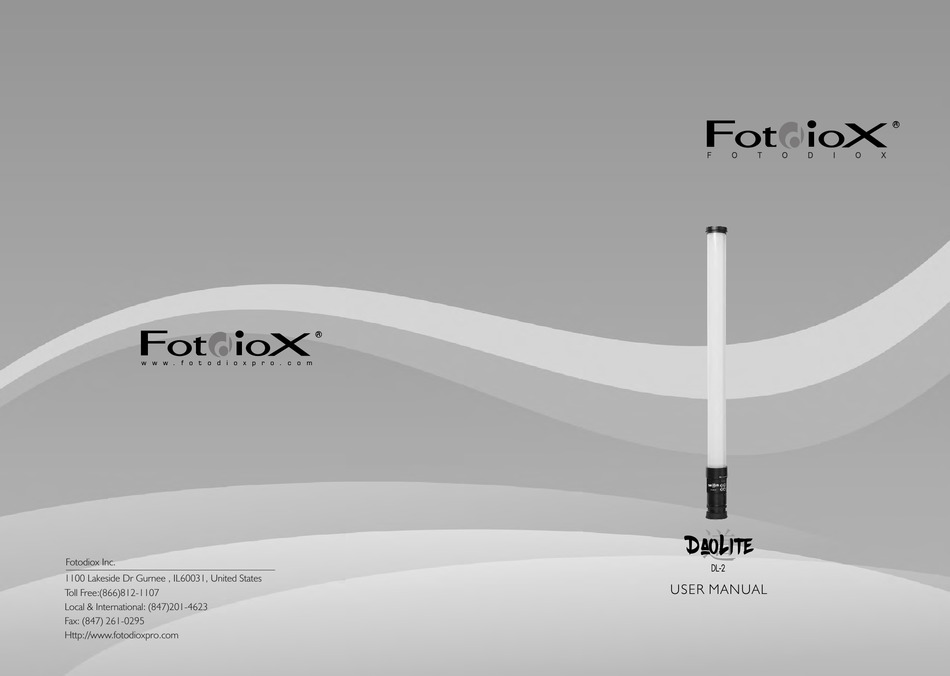

- Page 1 . f o t o d i o x p r o . c o m 道 D L- 2 道 Fotodiox Inc. DL-2 1100 Lakeside Dr Gurnee , IL60031, United States USER MANUAL Toll Free:(866)812-1107 Local & International: (847)201-4623 Fax: (847) 261-0295 Http://www.fotodioxpro.com...
- Page 2 360 DEGREE LED TUBE LIGHT 360 DEGREE LED TUBE LIGHT DaoLite DL-2 Packing List: Characteristics: 1.Composed of ultra bright chip LEDs with a lifespan of up to 50,000 hours. These LEDs have a standardized color temperature with a CRI and TLCI of 96 or greater.
- Page 3 360 DEGREE LED TUBE LIGHT 360 DEGREE LED TUBE LIGHT Parts Diagram: Specifications: Model DaoLite DL-2 Spec 720pcs ultra bright chip LEDs 2800K:820LUX/0.5m,246LUX/1m Illuminance 6500K:925LUX/0.5m,276LUX/1m Beam angle 360° Color temperature 2800±150K~6500 200K ± Ra:96-98 ≥96 TLCL Power Working voltage AC100-240V,DC13-17V (Battery handle) ø58x733MM...
- Page 4 360 DEGREE LED TUBE LIGHT 360 DEGREE LED TUBE LIGHT Operating instructions 1.Set up instructions: 4.Instructions for operation buttons After removing the ball head and DaoLite from packaging, screw the ball head to your light stand. As is, the ball head (1) Power ON/OFF: Press “Power”...
- Page 5 4-pin XLR socket with the corresponding ridge on the 4-pin XLR plug. Connect the AC power adapter to the AC power cord; plug AC power cord into external power source (AC100-240V.) The DaoLite can now be powered on. All Fotodiox products are backed by a 24 month limited warranty.
