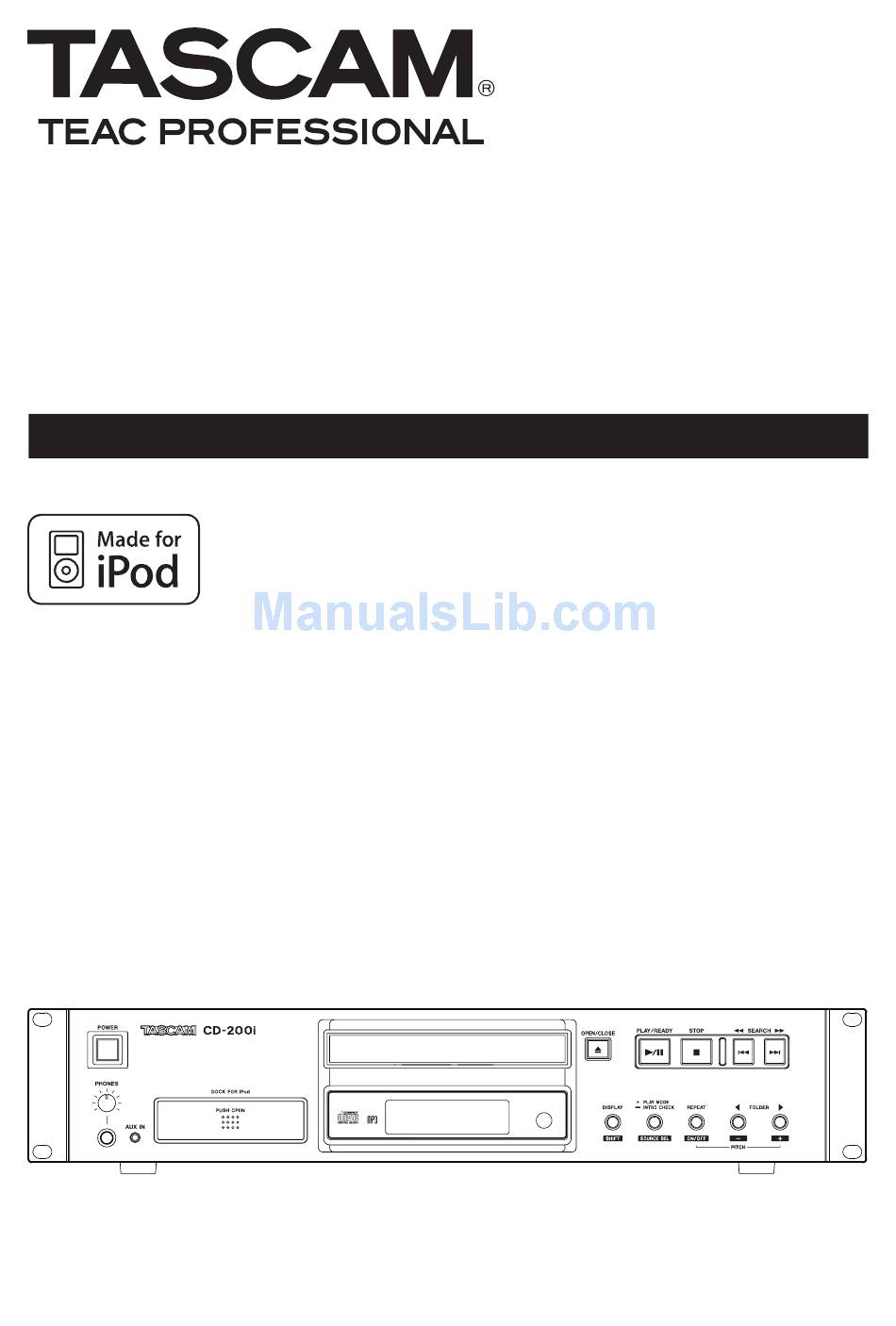

  • Page 1 D01086320A CD-200i CD Player/iPod Dock OWNER'S MANUAL...
  • Page 2: Important Safety Precautions

    Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment. TASCAM CD-200i WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 3: Important Safety Instructions

    Für Kunden in Europa Warnung Dies ist eine Einrichtung, welche die Funk-Entstörung nach Klasse A besitzt. Diese Einrichtung kann im Wohnbereich Funkstörungen versursachen; in diesem Fall kann vom Betrieber verlang werden, angemessene Maßnahmen durchzuführen und dafür aufzukommen. TASCAM CD-200i...
  • Page 4: Safety Information

    Do not disassemble a battery. The acid inside the • battery could harm skin or clothing. TASCAM CD-200i CAUTIONS ABOUT LASER RADIATION ª This product has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968,”...
  • Page 5 4 inch (10 cm) or more of space at the rear. Use the rack-mounting kit to mount the unit in a standard 19-inch equipment rack, as shown below. Remove the feet of the unit before mounting. TASCAM CD-200i...
  • Page 6: Table Of Contents

    Selecting the folder ... 24 Playback modes ... 25 Select the playback mode ... 25 Programmed playback ... 25 TASCAM CD-200i Setting the program ... 26 Checking the program ... 27 Replacing a program track ... 27 Adding more program tracks ... 27 Clearing the program ...
  • Page 7: Introduction

    Thank you for your purchase of the TASCAM CD-200i CD Player/iPod Dock. Before connecting and using the unit, please take time to read this manual thoroughly to ensure you understand how to properly set up and connect the unit, as well as the operation of its many useful and convenient functions.
  • Page 8: Trademarks

    1 − Introduction Trademarks TASCAM is a registered trademark of TEAC • Corporation. MPEG Layer-3 audio coding technology licensed from • Fraunhofer IIS and Thomson. "Made for iPod" means that an electronic accessory has • been designed to connect specifically to iPod and has been certified by the developer to meet Apple perfor- mance standards.
  • Page 9: Names And Functions Of Parts

    (See “Connecting an iPod” on page 16.) Display Displays various information. Remote Sensor When operating the remote control unit (RC-CD200i), point it towards here. TASCAM CD-200i button CLOSE...
  • Page 10: Ipod Dock

    Press this key to cycle through the repeat playback modes in the following order (see “Repeat playback” on page 28.): TASCAM CD-200i Press this key while holding down the key to turn the pitch control function ON and OFF. (See “Pitch control”...
  • Page 11: Rear Panel

    PAL) and TV Screen (or Widescreen) setting to suit the connected device. VOLTAGE SELECTOR Switches the voltage to either 230 V The voltage selector is only available on units for • specific markets. In North America, use only on 120V supply. • TASCAM CD-200i 120 V...
  • Page 12: Display

    When a fourth-generation iPod or iPod mini is connected, and the output source is set to iPod, the SHUFFLE and REPEAT indicators are not shown on this unit’s display. Check the iPod itself to confirm the iPod’s current playback and repeat mode. TASCAM CD-200i is shown READ...
  • Page 13: Remote Control Unit (Rc-Cd200I)

    Press this key to cycle through the sound output sources in the following order (see “Changing the output sound source” on page 20.): PITCH ON/OFF key (CD) Press this key to turn the pitch control function ON and OFF. (See “Pitch control” on page 29.) TASCAM CD-200i...
  • Page 14 When the output source is set to CD, press this key to stop playback. When the output source is set to iPod, press this key to pause playback. PLAY/READY key (CD and iPod) Press during playback to pause. When playback is stopped or paused, press to start playback. TASCAM CD-200i...
  • Page 15: Preparation For Use

    Please change the iPod’s TV signal setting (NTSC or PAL) and TV Screen (or Widescreen) setting to suit the connected device. S-VIDEO output jack of this unit to TASCAM CD-200i...
  • Page 16: Connecting An Ipod

    When the unit’s power is OFF, it does not charge connected iPods. During charging, a battery icon appears on the iPod screen that shows the charging status. Please see the operation manual for the iPod that you are using for details. TASCAM CD-200i iPod Dock adapter Dock connector...
  • Page 17: Opening The Ipod Dock

    CAUTION When removing the dock adapter, use a hand to hold • the iPod dock in place. Do not move the iPod dock left, right, up or down • when it is pulled out. TASCAM CD-200i...
  • Page 18: Removing The Ipod

    Before connecting or disconnecting something to the • AUX IN jack, set the output source to CD or iPod (not AUX), or turn the CD-200i’s power OFF. TASCAM CD-200i ⃝...
  • Page 19: Preparing The Remote Control

    Use the remote control within the following range. • Remote Sensor 15° 15° Operation distance Directly in front: Within 7 meters 15° left or right: Within 7 meters TASCAM CD-200i...
  • Page 20: Changing The Output Sound Source

    By the above operation, the sound output sources will cycle through in the following order: [When the output source is iPod] [When the output source is AUX IN] TASCAM CD-200i CAUTION iPod and AUX IN cannot be selected if devices are not •...
  • Page 21: Playing Back Cds

    (Folder 03) bb001.mp3 (Track 004) bb002.mp3 (Track 005) (No folder number) cc001.txt (File other than audio) aa001.mp3 (Track 003) (No folder number) (Folder 04) ee001.mp3 (Track 006) 00001.mp3 (Track 001) 00002.mp3 (Track 002) An Example of Data CD Structure TASCAM CD-200i...
  • Page 22: Loading A Cd

    If you open the disc tray while this unit is in use, the following settings are lost. – Program – Current folder (for data CDs) TASCAM CD-200i Playback The following procedures assume that the necessary connections have been completed, the unit’s power has been turned on and a CD (audio or data) has been loaded.
  • Page 23: Selecting A Track

    The numeric keys cannot be used to select a track when in program or shuffle mode. Numeric keys (0 - 9) key on the main unit or the STOP key on the main unit or the TASCAM CD-200i...
  • Page 24: Search Forward And Backward

    Search Ô/ keys MP3 and WAV files can also be searched forward and backward. TASCAM CD-200i Folder playback (with data CDs only) When playing a data CD, you can set a designated folder (the current folder) as the playback area. Follow the procedures below to set the playback folder.
  • Page 25: Playback Modes

    (total program time is not shown when using a data CD). Playback mode Continuous playback Shuffle playback Programmed playback PLAY/ SEARCH Ô /  ( Â / ¯ ) TASCAM CD-200i...
  • Page 26: Setting The Program

    01 (MEMORY indicator blinks). [Audio CD] [Data CD] TASCAM CD-200i If the program is already set, the track number and playback time of the track set as program step 01 is shown.
  • Page 27: Checking The Program

    After the program is cleared, program set- ting mode resumes without any tracks added to the program. In addition to the above procedure, opening the disc tray also clears the program. TASCAM CD-200i PROGRAM EDIT key to ” appears on the...
  • Page 28: Repeat Playback

    If repeat playback is turned ON when stopped, repeat playback begins when the PLAY/READY key is pushed. TASCAM CD-200i The repeat function’s ON/OFF state is retained even • when the power is turned OFF.
  • Page 29: Pitch Control

    • To turn pitch control playback OFF: Press the REPEAT PITCH ON/OFF ing and holding the DISPLAY SHIFT) main unit or press the key on the remote con- PITCH trol. TASCAM CD-200i ) key while press- key on the ) key while press- key on the...
  • Page 30: Intro Check

    CD-200i. The pitch control function cannot be used with iPods. • TASCAM CD-200i Intro Check During playback or when stopped, press and hold PLAY MODE/INTRO CHECK (SOURCE SEL)
  • Page 31: Ipod Playback

    • with caution in order to avoid damage to the connectors and sudden bursts of noise when connecting and discon- necting an iPod. See our website (http: //www.tascam.com/) for informa- • tion about compatible devices. Controlling an iPod The following keys on the CD-200i front panel and remote control (RC-CD200i) can be used to control the iPod.
  • Page 32: Message Lists

    COMM ERR COMM ERR DEC ERR DISC ERR DRV ERR READ ERR TASCAM CD-200i Meaning All programs have been cleared. The disc tray is closing. There is no disc or the disc cannot be verified. The disc has no files that can be played back.
  • Page 33: Troubleshooting

    Is the video or S-video cable correctly connected? e Is the television input set to the video input jack to which this unit is connected? e Are the iPod video output and television output settings matched correctly (NTSC or PAL)? TASCAM CD-200i...
  • Page 34: Specifications

    Maximum Output Level: 20 mW + 20 mW Load Impedance: 32Ω DIGITAL OUTPUT (OPTICAL) Terminal ª Connector: Optical Jack Compatible Signal Format: IEC-60958 Type II (S/PDIF) TASCAM CD-200i DIGITAL OUTPUT (COAXIAL) Terminal ª Connector: RCA Pin Jack Compatible Signal Format: IEC-60958 Type II (S/PDIF) Video Output ª...
  • Page 35: General

    Specifications and external appearance may be changed • without notification to improve the product. 8 − Specifications Weight ª 4.7 kg (10.36 lb) Operating Temperature ª 5 to 35°C Inclination of installation ª 5° or less TASCAM CD-200i...
