112mkII

Consultant's Specification

CONSULTANT'S AND SYSTEM DESIGN SPECIFICATION

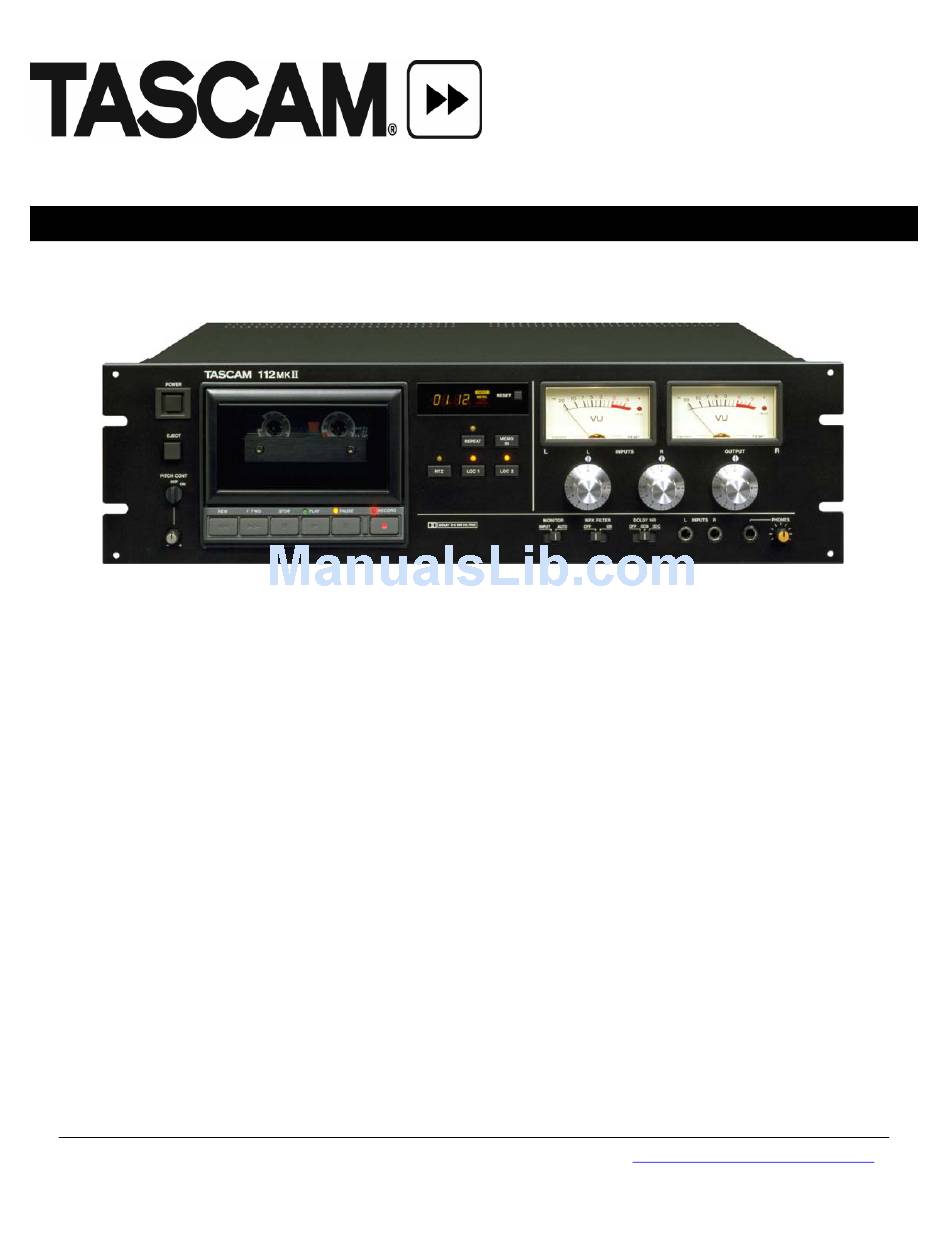

The TASCAM 112mkII is a 3U rack-mountable single-well studio grade cassette player/recorder

which utilizes a two-head mechanism. The unit is equipped with Dolby B and C with HX Pro

Headroom Extension, Pitch Control (12% +/-) w/On Off switch, Headphone output w/level

control, and precision VU meters. It has two-locate points, repeat function, and RTZ functions.

Input and output level controls are located on the font panel in addition to front line inputs. The

112mkII offers parallel control and fader start function.

The 112mkII is equipped with rear panel unbalanced inputs and outputs. Optional balancing kit

LA-112 and optional RC-134 remote control are available.

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303

http://www.tascamcontractor.com

All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

TASCAM 112mkII
