Page 1: User Guide

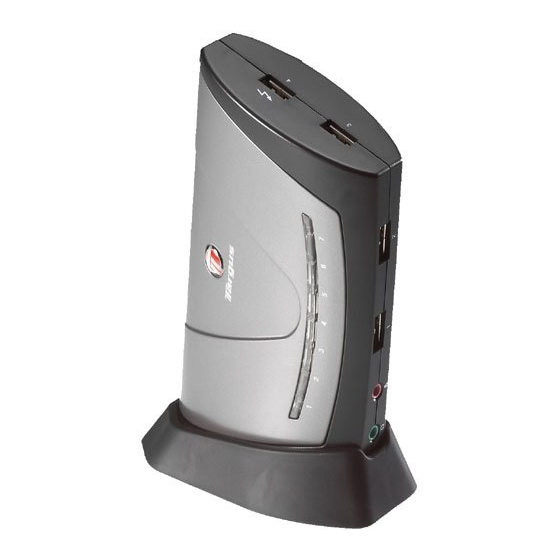

Notebook Expansion USB home dock with audio pass-through USER GUIDE... -
Page 2: Table Of Contents
Connecting the Notebook Expansion USB home dock with audio pass-through ... 6 Connecting New Devices ... 9 Global Suspend Mode ... 11 Targus Always On... 11 Using USB Devices That Require More Power ..11 Product Limitations ... 11 Troubleshooting ... -
Page 3: Introduction
1 High Power technology - specification for devices that require more power than normal USB ports provide. 2 Targus Always On technology - provides power to the USB ports even when the computer is shut-down, disconnected, or in hibernation/ stand-by mode. This allows USB devices that charge via the USB port to keep charging under any circumstance. - Page 4 Targus Notebook Expansion USB home dock with audio pass-through Features Space Saving and Flexible: The Notebook USB home dock with Audio Pass-Through is designed to sit on your desktop in either the horizontal or vertical position. To stand the hub in the vertical position, simply insert it into the provided base.
-
Page 5: Package Contents
Targus Notebook Expansion USB home dock with audio pass-through Package Contents In addition to this user guide, the package contains: • Targus Notebook Expansion USB home dock with audio pass-through • High-speed USB 2.0 upstream cable • Audio pass-through cable for microphone/ headset •... -
Page 6: Connecting The Notebook Expansion Usb Home
Targus Notebook Expansion USB home dock with audio pass-through NOTE: T O DOWNLOAD THE LATEST SERVICE PACKS COMPUTER MANUFACTURER http://support.microsoft.com/default.aspx?scid=fh%3BEN- US%3Bsp Connecting the Notebook Expansion dock with through Connecting the Notebook Expansion USB home dock with audio pass-through to Your Computer... - Page 7 Targus Notebook Expansion USB home dock with audio pass-through LED Status Indicator Lights The USB LED status indicator lights on the side of the USB hub glow when you connect devices to the hub. • Green Tx light illuminates when connected to an USB device.
- Page 8 Targus Notebook Expansion USB home dock with audio pass-through High Power USB Port USB Port Audio-In (Microphone) Port Audio-Out (Headset) Port Mini-USB Port (Type B) DC Jack USB 2.0 4-Port Hub Back Vertical View USB 2.0 4-Port Hub Top and Front Vertical View...
-
Page 9: Connecting New Devices
All four USB ports meet USB High-speed requirements, of which two of them are High Power USB ports with unique features. See “Targus Always On” on page 11 for more details, and “Using USB Devices That Require More Power” on page 11. - Page 10 Targus Notebook Expansion USB home dock with audio pass-through Connecting an Audio Device 1 Plug your headphones or speakers into the green 3.5mm Audio Out (Headset) port on the USB hub. 2 Plug your microphone jack into the mono Audio In (Microphone) port.
-
Page 11: Global Suspend Mode
Targus Notebook Expansion USB home dock with audio pass-through Global Suspend Mode When your computer is in suspend mode, the USB 2.0 4- port hub also enters suspend mode to avoid power consumption. When your computer wakes up, so does the hub automatically. -
Page 12: Troubleshooting
Targus Notebook Expansion USB home dock with audio pass-through respond slowly while a graphic print job is printing or while you are experiencing heavy network traffic. We recommend the following guidelines: • Do not transfer data to or from multiple high-speed devices, such as a digital camera or scanner, at the same time. -
Page 13: Technical Support
Targus Notebook Expansion USB home dock with audio pass-through To re-enable the port, unplug the device and go to Device Manager or to the message in the system tray and choose the Reset option. You can then plug the device back into the USB port. If a shut down reoccurs, check the power requirements of the device. -
Page 14: Product Registration
This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. - Page 15 United States and/or other countries. All trademarks and registered trademarks are the properties of their respective owners. All rights reserved. Features and specifications subject to change without notice. © 2007, Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA.
- Page 16 Visit our Website at www.targus.com Features and specifications subject to change without notice. © 2007 Targus Group International, Inc. and Targus, Inc. ACH80US / 410-0393-001C...
