Summary of Contents for Imperial Dabman 70

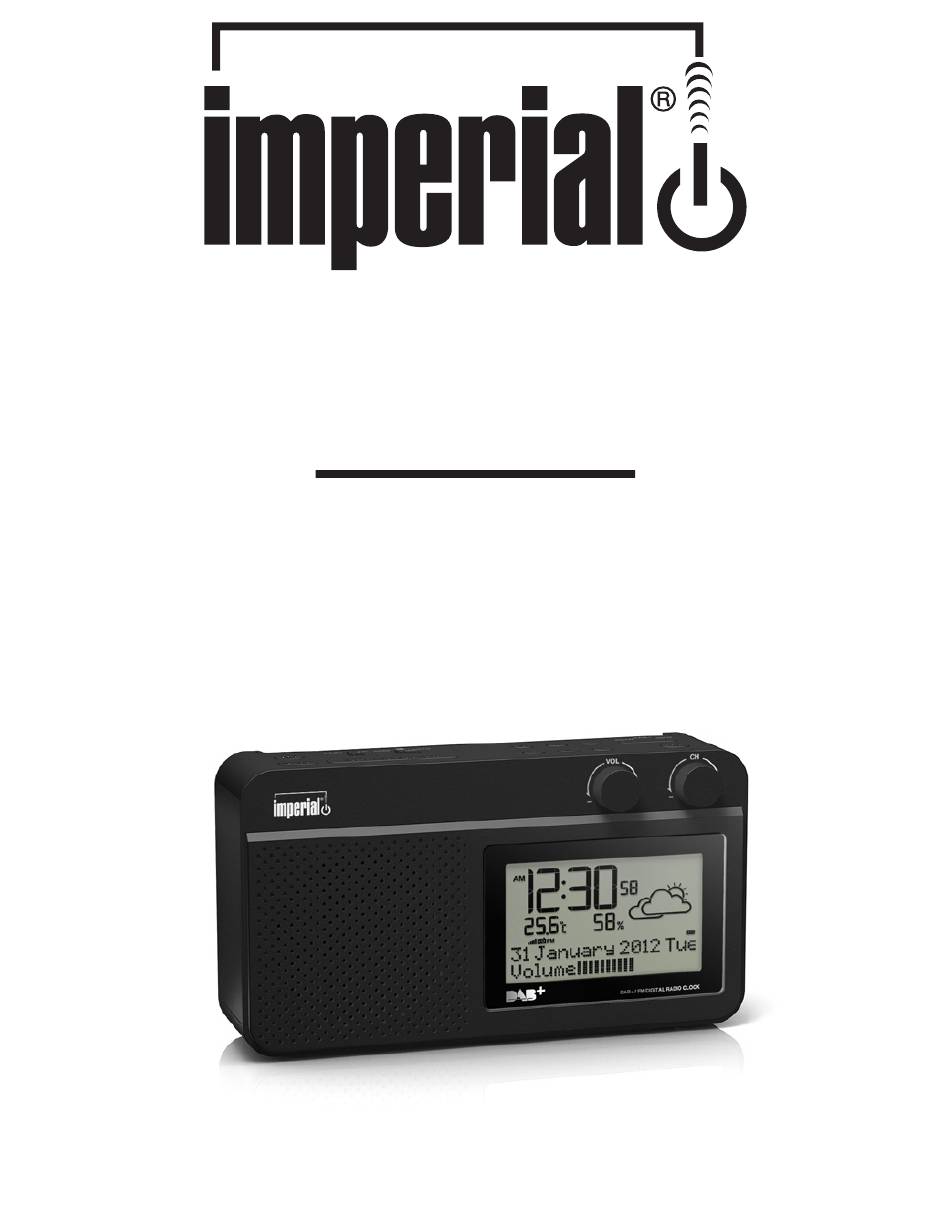

- Page 1 UKW-/DAB+ UHRENRADIO Bedienungsanleitung...
-
Page 3: Table Of Contents
Index: Features Overview of the radio Getting started Clock operation Using the auto-radio function Dimmer operation Temperature and humidity record About the weather indicator Menu-Clock Operating your radio DAB+ Operating your radio FM Direct memory station –DAB+ and FM Setting the sleep timer-DAB+/FM Battery replacement Batteries safety warnings Precautions... -
Page 4: Features
Features • Display of Time, Calendar, Day of the week, Temperature, Humidity and Weather forecast • MAX/MIN Temperature and Humidity record • 12/24 Hour format selectable • Auto time update function • Alarm and snooze • FM Reception(87.5MHz~108MHz) • DAB/DAB+ Reception BAND III 174.928MHz(5A) ~ 239.200MHz(13F) •... -
Page 5: Overview Of The Radio
2. OVERVIEW OF THE RADIO 1. LCD display 2. Loud speaker 3. Volume control 4. Channel selection 5. SLEEP key 6. Power key 7. DAB+/FM slide switch 8.BEEP/OFF/AUTO slide switch 9. SNOOZE/LIGHT key 10. Memory keys 11. SCAN / < key 12. -
Page 7: Getting Started
3. GETTING STARTED 1. If using battery to power the unit, remove the battery door at the back of the unit by slightly sliding the door upwards. 2. Insert 4 new AA size batteries into the battery compartment. Ensure all the batteries are inserted with the correct polarity as shown inside the battery compartment. -
Page 8: Clock Operation
Note: 1. The initial time is 12:00 am when you use the clock first time, or repower the clock. 2. The signal reception will last 10 seconds if there is no signal received. 3. The DAB+/FM radio may consume more power, so you can use the mains power when you use the radio, and use the battery to retain the clock time. - Page 9 Normal mode Hour setting Minute setting Date setting Second setting Month setting Year setting Hour format setting Note: For Second setting, press “<” / “>” key to set the value to 00. 4.2 Alarm Time setting 1. Press and hold “ALARM” key for 2 seconds to enter alarm time setting mode with Hour digit flashing.
- Page 10 Normal mode Hour setting Minute setting Note: In normal mode, press “ALARM” key to display the alarm time for one minute. 4.3 Using the Alarm and Snooze 1. Slide the “BEEP/OFF/AUTO” switch to BEEP postion. 2. Set the alarm time as the above described. 3.
-
Page 11: Using The Auto-Radio Function
5. USING THE AUTO-RADIO FUNCTION 1. Slide the “BEEP/OFF/AUTO” switch to AUTO postion. And slide the “DAB+/FM” switch to DAB+/FM position. 2. Set the alarm time as the above describtion. 3. When the clock reach the alarm time, it will automatically turn on the radio you selected. -
Page 12: About The Weather Indicator
Normal mode Max. Temperatur Min. Temperature Note: Once you reset or repower the unit, all the records will be defaulted. 8. ABOUT THE WEATHER INDICATOR The built-in barometer can notice atmosphere pressure changes. Based on the data collected, it can predict the weather conditions in the forthcoming 12-24hours. -
Page 13: Menu-Clock
9. MENU-CLOCK 1. Press “OK/MENU” key or press “CH” selection to access the main menu. 2. Rotate “CH” selection to select Language or Auto Update Time. Press “OK” / “CH” to confirm your selection and enter its sub-menu. Note: 1. There are five languages to select(English / German / French / Dutch / Italian ), the display of the unit will change according to the language you selected. - Page 14 4. Rotate “CH” selection to select your desired station and press “OK/MENU” key or “CH” selection to confirm. 5. Rotate “VOL” control to adjust your desired volume. 6. Press “VOL” control to make your radio mute. Press it again or rotate it (right) to volume up your radio. 7.
- Page 15 10.2 Channel Information display During you listen to a DAB+ radio, repeatedly press “INFO” key to display the detail information of current channel. Current Station Frequency Data Rate Signal quality Audio format Program Type 10.3 Factory Reset 1. Press and hold “SCAN” key for 2 seconds to reset the radio that all the records(station record and memory record) for FM&DAB will be defaulted.
- Page 16 2. Rotate the “CH” selection to display the setting item in this sequence: Language > DRC value(DAB) > Manual tune(DAB) > EQ(Radio) > Station Order(DAB) > Auto Update Time > Scrolling Speed(Radio) > Back. 3. Select your desired item and press “OK/MENU” key to enter its sub-menu, select your desired value and press “OK”...
-
Page 17: Operating Your Radio Fm
11. OPERATING YOUR RADIO-FM 11.1 Power on - FM 1. Carefully extend the telescopic aerial, and slide “DAB+/ FM” switch to FM position. 2. Press “POWER” key to turn on your radio. 3. For the first time you use the radio, the default radio frequency is 87.5MHz, you can manually select your desired channel by rotating the “CH”... -
Page 18: Direct Memory Station -Dab+ And Fm
11.3 Menu-FM 1. Press “CH” selection or “OK/MENU” key to access the main menu. 2. Rotate the “CH” selection to display the setting item in this sequence: Language > EQ(Radio) > Auto Update Time > Scrolling Speed(Radio) > Back. 3. Select your desired item and press “OK/MENU” key to enter its sub-menu, select your desired value and press “OK”... -
Page 19: Battery Replacement
2. Press “SLEEP” key again to select the desired sleep time. Each press changes the setting time as following: 15 > 30 > 60 > 90 >00 minutes. 3. When it reach the time you set, the DAB+/FM radio will turn off automatically. -
Page 20: Precautions
16. PRECAUTIONS - This main unit is intended to be used indoors only. - Do not subject the unit to excessive force or shock. - Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity. - Do not immerse in water. - Avoid contact with any corrosive.
