Summary of Contents for Air Water Life Aqua-Ionizer Deluxe 9.0

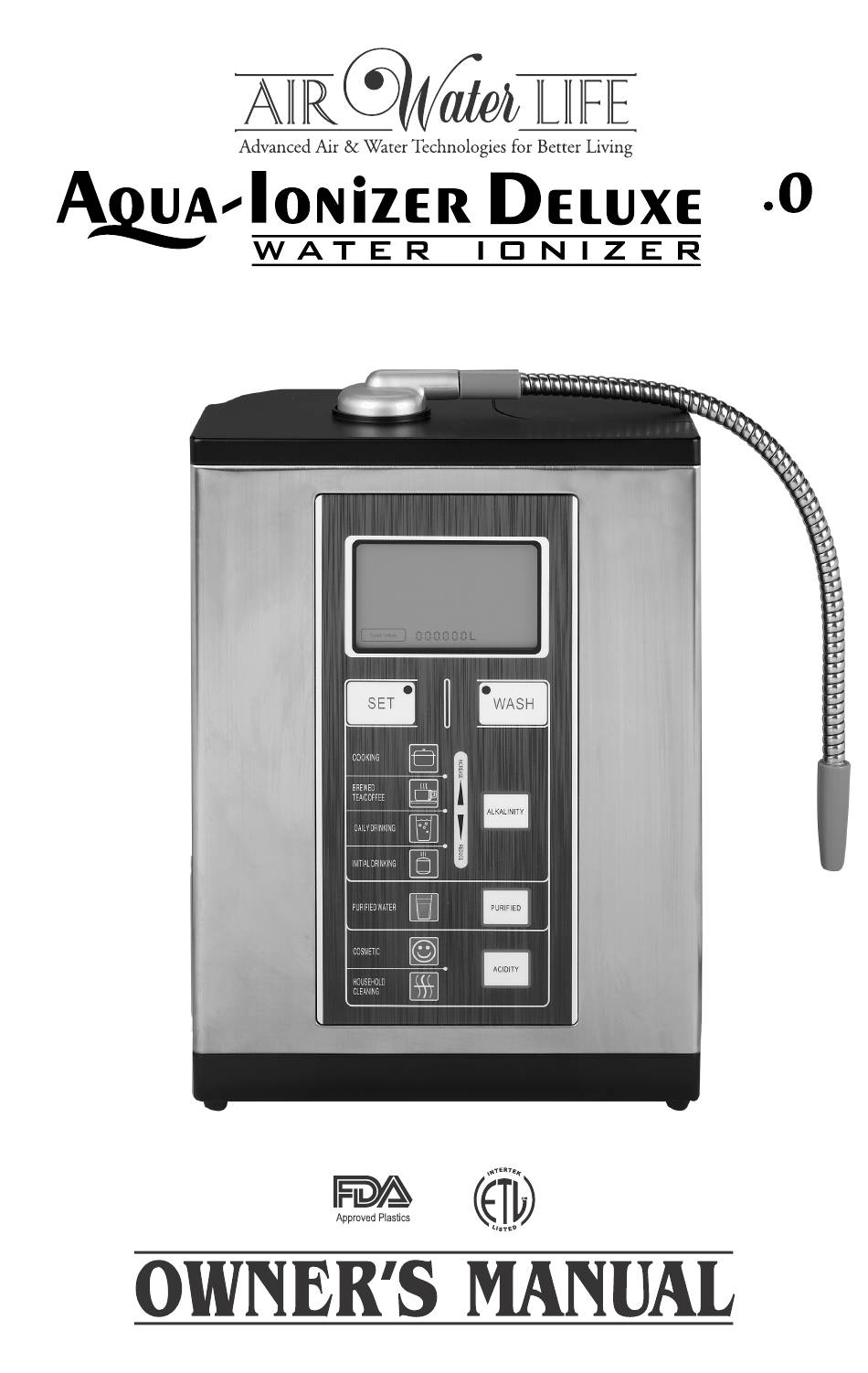

- Page 1 AirWaterLife.com AWL-9000 Read Carefully Retain Manual for Before Initial Use. Future Reference.
-
Page 2: Table Of Contents
• Warranty Information........33 Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 3: Included With Your Water Ionizer/Parts & Supplies
Water Hose: Cut to Form Inlet Water Quick-Connect Valves Pre-Installed Bottom of Water Ionizer Hose and Acidic Water Outlet Hose (1, Cut to form 2) Plastic Expansion Stainless Steel Drill Mounting Screw Anchors Screws Guide Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 4: Water Ionizer Assembly Overview
Water Ionizer Assembly Overview: Outer Filter Cover Inner Filter Cover Carbon Water Filter Flexible Water Ionizer Metal Spout Power Cord Inlet Water Hose Acidic Water Outlet Hose Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 5: Safety Instructions & Symbols
(Mpa) for your water ionizer to operate properly and to avoid damaging the unit. If your water pressure is higher than this, you should install a water pressure reducer to lower the source water pressure before it’s fed into your water ionizer. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 6 • Do NOT plug the unit in if the cord, plug or the outlet is damaged. • Do NOT drag the unit by its power cord or plug. • Contact a qualified electrician immediately if the cord or plug becomes damaged. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
- Page 7 • If you have existing water hoses from a previously owned water ionizer or other water dispensing, filtration or purification devices, these hoses should be discarded and the new hoses provided with your new water ionizer should be used instead. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
- Page 8 Instead, use your unit's "Purifier Water," i.e., filtered but not ionized, water setting. As a general rule, you should not consume alkaline water within 45 mins. to one (1) hour either before or after taking medication. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
- Page 9 • While the "Cosmetic" water setting can be used to treat your pets’ minor wounds and improve its skins and coats, you should check carefully for any allergic reactions or skin irritation. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
- Page 10 • Taste or pH testing reveals that water dispensed from the unit which should be alkaline is coming out acidic; • Residual water appears to be dripping from the unit and/or is discovered to be collecting around the electrodes during routine cleaning and maintenance. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
- Page 11 • Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 12: Technical Specifications
(TDS) are at their default value. The actual power consumption varies to maintain a constant pH depending on the inflow rate, water temperature and TDS breakdown of the source water at any given time. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 13 LCD Size......6.3 sq in: 3.5 in x 1.8 in: 7 colors,1 per setting Control Panel........Ultra-Responsive Bio-Touch Pad FDA Approved Plastics ..............Yes ETL Certified..................Yes Warranty ............Life-time limited warranty Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 14: Installation Schematic & Instructions
3. Connect the Inlet and Outlet Water Hoses to the Water Ionizer 4. Install the Metal Spout 5. Connect the Inlet Water Hose to the Faucet Diverter Valve 6. Check Connections 7. (Optional) Wall Mount Your Water Ionizer 8. Plug In the Water Ionizer Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 15: Identify Required Connector/Attach Faucet Diverter Valve
Connector Faucet Joint Faucet Connector a) Thread Outside Faucet: You will usually not need to use a connector. Simply screw the Faucet Diverter Valve directly onto the faucet. over 3mm 22mm Faucet Diverter Valve Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 16 In some instance, either because the threads are damaged, too wide, or too narrow, you may need to use the 3-Bolt Faucet Connector assembly method even on Threaded Inside or Outside Faucets. Faucet Diverter Valve Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 17: Install The Inner Carbon Filter
Carbon Filter, hold the end with the sealing ring on it under running tap water for 3 minutes to flush away any loose carbon particles, remove excess air, and to prime the filter. Fig. C Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 18 Push in the collet with one hand and hoses into the connectors. pull the horn in the opposite one for the In and one for the direction with your other hand Acidic Water. “at least 1/2” Remove Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 19: Connect Inlet & Outlet Hoses
CAUTION: Be sure that the Metal Spout, and the white ¼” hoses for the source water ('IN') and the acidic ('OUT') are attached correctly to the bottom of the unit as described in Steps 3 & 4. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 20: Check For Leaks
Step 7 - (Optional) Wall Mounting Your Water Ionizer. If instead you are simply replacing an existing filter, your finished simply return to using your water ionizer normally. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 21: Optional) Wall Mount Your Water Ionizer
If you have applied the Drill Guide correctly the distance between the center of the two holes should be 3.8 inches (96mm). 3.8 inches (96 mm) Fig. B Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 22 Stainless Steel Screw heads and pushing down gently to be sure the screws lock properly into place securely anchoring the unit to the wall. Fig. F Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 23: Plug In The Water Ionizer
68°-77° F (20°-25° C) source water with a neutral pH of approx 7.0 containing 100 - 150 parts per million of Total Dissolved Solids (TDS) flowing at 2L (0.5 gal) per minute. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 24: Conducting Ph Testing
Value Detection Bottle and shake gently to distribute the reagent evenly. d) The water in the bottle will change color. Compare the water’s color to that of the pH Color Chart. pH Reagent with Eyedropper Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 25: Optional) Ph Retesting
• Avoid Direct Sun Light - Keep the pH Reagent and Color Chart in a cool shaded place. Exposure to heat and/or direct sunlight can cause both to discolor resulting in erroneous pH testing. NOTES Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 26: Understanding The Lcd Display
I. Washing Flasher - Lets the user know the water ionizer is in automatic cleaning mode. Note: Never, simply unplug your water ionizer when it's in Washing Mode. Doing so may damage the unit. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 27: Understanding Your Ph Presets
*Purified water is filtered but not ionized. So, it derives its pH from source tap water which averages 7.0 pH. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 28: Selecting Your Ph Preset & Dispensing Water
Purified water mode. The unit’s electroplates are not engaged as part of the Purified Water process, consequently, there is no need for auto-cleaning the electroplates after using this function. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... -
Page 29: Enhanced Cleaning Function
F. NEVER unplug the unit or attempt to carry out other water ionizer functions while the unit is in Enhanced Cleaning mode. Doing so can damage your water ionizer. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 30 Convert Almost Any Countertop Water Ionizer to an Under Counter Unit Includes All Connectors & Tubing • $169.95 TriPart Aqua-Filter Deluxe 3.0 by Air Water Life® 3-Stage Particulate, Activated Carbon & Ultra-Filtration Water Filters $169.95 Advanced 3-stage water filtration system delivers clean, safe, healthy odor free drinking water.
-
Page 31: Manual Cleaning & Descaling
Acidic Water Outlet hose. (Fig. 1-B) Fig.1-A Fig.1-B Horns Reinserted into Acidic Water Outlet Hose with Stopper Water Inlet and Acidic Water Outlet Hoses For Shipping & Cleaning Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 32 J. Finally, close the Faucet Diverter Valve, reinsert the Inner Carbon Filter, replace the Inner and Outer Filter covers completing the descaling process. Continue to use your water ionizer normally. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 33: Problems & Solutions
Turning your faucet on high and allowing water to flow through your ionizer at a high rate of speed for 3 or 4 minutes will usually solve the problem. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0... - Page 34 This generally occurs when you forget to flush the filter under tap water for a few minutes prior to installation. Simply run water through the water ionizer for a few minutes and the particles will disappear. Owner’s Manual: AirWaterLife.com Aqua-Ionizer Deluxe 9.0...
-
Page 35: Warranty Information
The customer is responsible for the cost of shipping the unit to the service facility. However, following repair or replacement, Air Water Life will cover the cost of shipping the unit back to the consumer within the continental United States. - Page 36 Air Water Life is a Division of Real Spirit USA, Inc. 9447 De Soto Ave. • Chatsworth, CA 91311 • Ph 818.698.2088 www.AirWaterLife.com • info@AirWaterLife.com...
