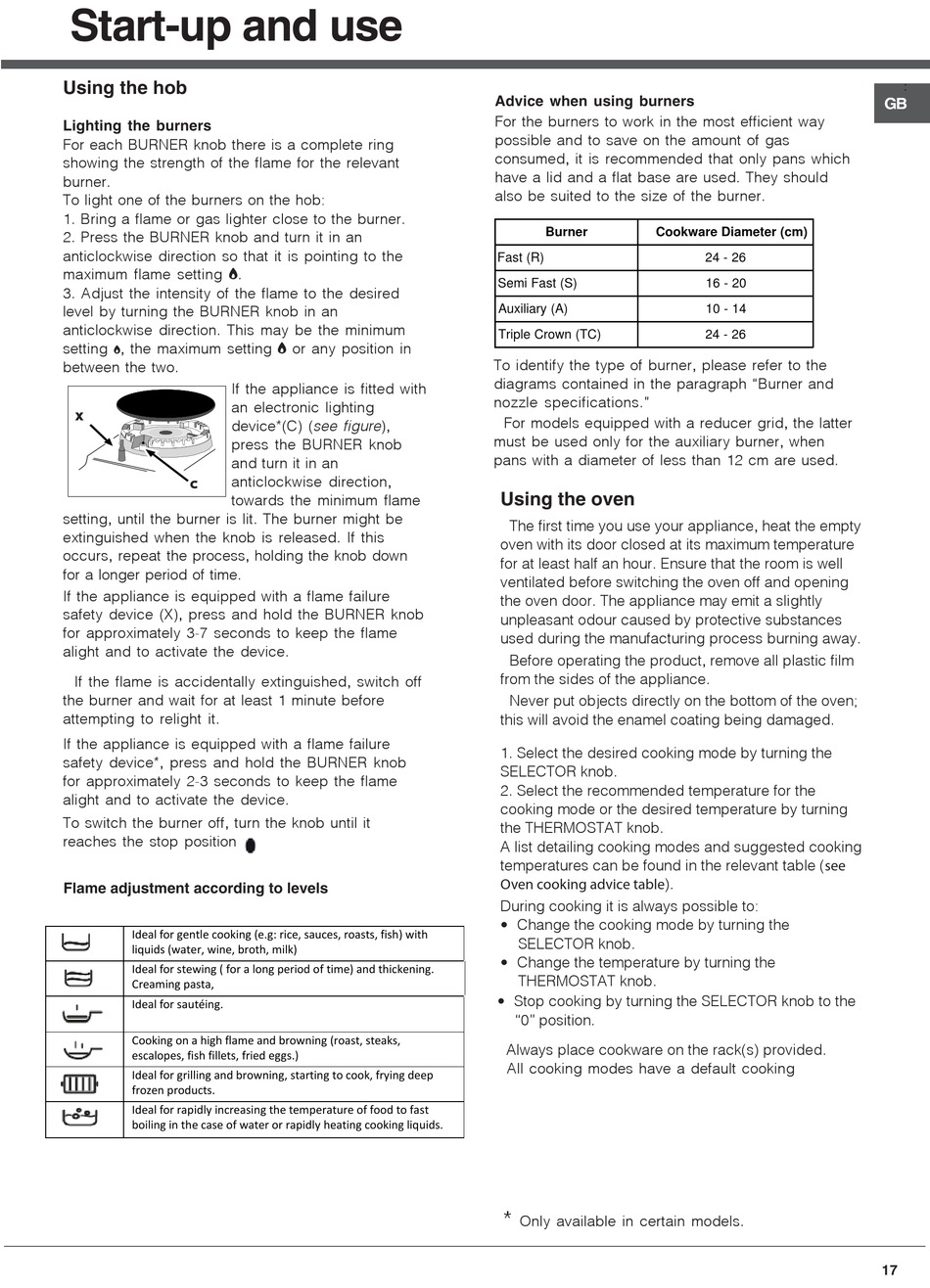

Start-up and use

Using the hob
Lighting the burners
For each BURNER knob there is a complete ring
showing the strength of the flame for the relevant
burner.
To light one of the burners on the hob:
1. Bring a flame or gas lighter close to the burner.
2. Press the BURNER knob and turn it in an
anticlockwise direction so that it is pointing to the
maximum flame setting E.
3. Adjust the intensity of the flame to the desired
level by turning the BURNER knob in an
anticlockwise direction. This may be the minimum
setting C, the maximum setting E or any position in
between the two.
If the appliance is fitted with
an electronic lighting
X
device*(C) ( see figure ),
press the BURNER knob
and turn it in an
anticlockwise direction,
C
towards the minimum flame
setting, until the burner is lit. The burner might be
extinguished when the knob is released. If this
occurs, repeat the process, holding the knob down
for a longer period of time.
If the appliance is equipped with a flame failure
safety device (X), press and hold the BURNER knob
for approximately 3-7 seconds to keep the flame
alight and to activate the device.
If the flame is accidentally extinguished, switch off
the burner and wait for at least 1 minute before
attempting to relight it.
If the appliance is equipped with a flame failure
safety device*, press and hold the BURNER knob
for approximately 2-3 seconds to keep the flame
alight and to activate the device.
To switch the burner off, turn the knob until it
reaches the stop position .
Flame adjustment according to levels
Ideal for gentle cooking (e.g: rice, sauces, roasts, fish) with
liquids (water, wine, broth, milk)
Ideal for stewing ( for a long period of time) and thickening.
Creaming pasta,
Ideal for sautéing.
Cooking on a high flame and browning (roast, steaks,
escalopes, fish fillets, fried eggs.)
Ideal for grilling and browning, starting to cook, frying deep
frozen products.
Ideal for rapidly increasing the temperature of food to fast
boiling in the case of water or rapidly heating cooking liquids.
Advice when using burners
For the burners to work in the most efficient way
possible and to save on the amount of gas
consumed, it is recommended that only pans which
have a lid and a flat base are used. They should
also be suited to the size of the burner.
Burner
Cookware Diameter (cm)
Fast (R)
Semi Fast (S)
Auxiliary (A)
Triple Crown (TC)
To identify the type of burner, please refer to the
diagrams contained in the paragraph "Burner and
nozzle specifications."
For models equipped with a reducer grid, the latter
must be used only for the auxiliary burner, when
pans with a diameter of less than 12 cm are used.
Using the oven
The first time you use your appliance, heat the empty
oven with its door closed at its maximum temperature
for at least half an hour. Ensure that the room is well
ventilated before switching the oven off and opening
the oven door. The appliance may emit a slightly
unpleasant odour caused by protective substances
used during the manufacturing process burning away.
Before operating the product, remove all plastic film
from the sides of the appliance.
Never put objects directly on the bottom of the oven;
this will avoid the enamel coating being damaged.
1. Select the desired cooking mode by turning the
SELECTOR knob.
2. Select the recommended temperature for the
cooking mode or the desired temperature by turning
the THERMOSTAT knob.
A list detailing cooking modes and suggested cooking
temperatures can be found in the relevant table (see
Oven cooking advice table).
During cooking it is always possible to:
• Change the cooking mode by turning the
SELECTOR knob.
• Change the temperature by turning the
THERMOSTAT knob.
• Stop cooking by turning the SELECTOR knob to the
"0" position.
Always place cookware on the rack(s) provided.
All cooking modes have a default cooking
*
Only available in certain models.
24 - 26
16 - 20
10 - 14
24 - 26
GB
17
