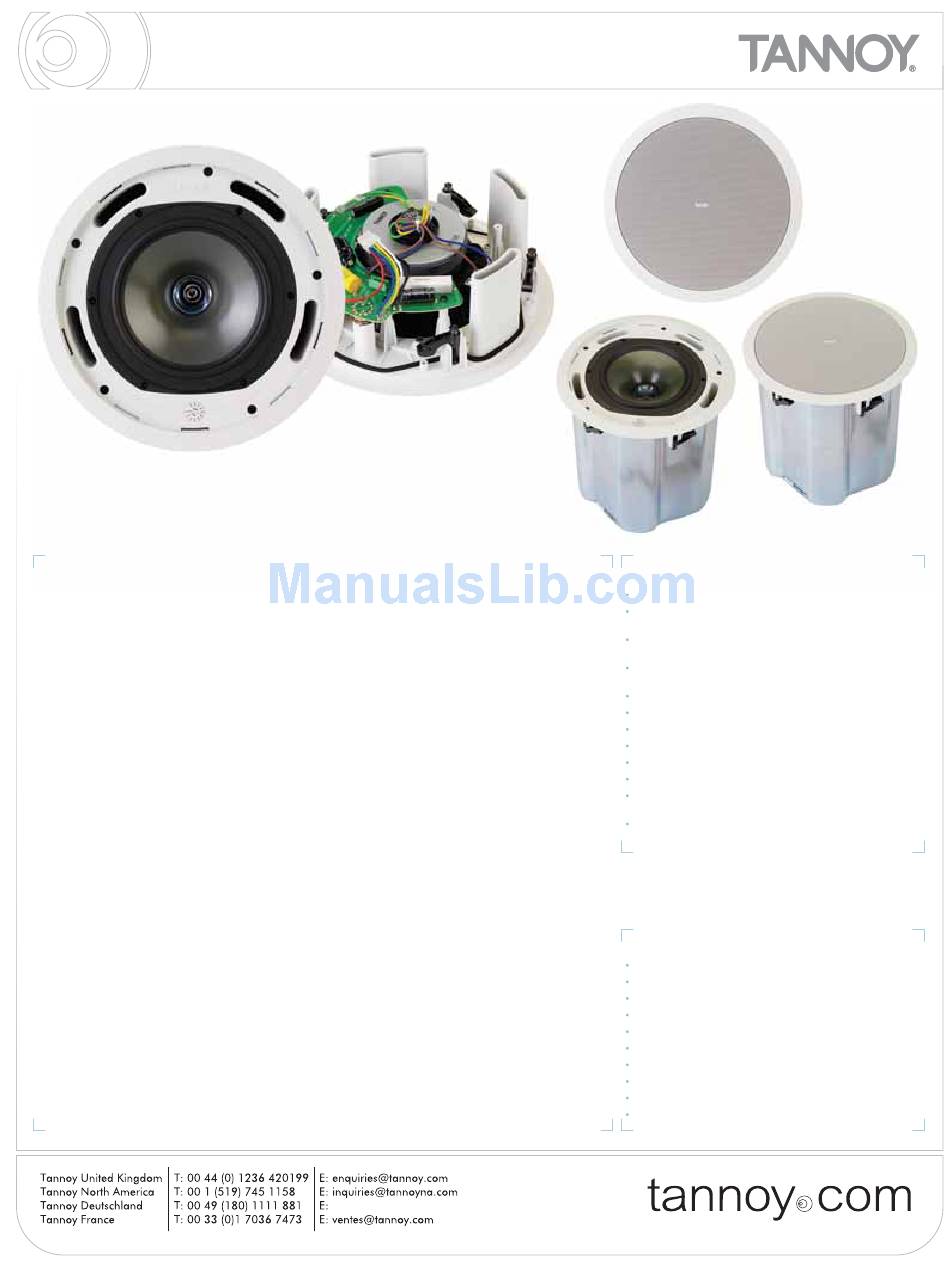

Tannoy CMS801 DC Specifications

CMS801 DC
Product Description
The Tannoy CMS801 DC is a full bandwidth; high power and high sensitivity ceiling monitor system. The
200mm (8.00") Tannoy Dual Concentric
pulp mid bass cone and a 25mm (1.00") ferrofluid cooled, titanium dome HF unit with neodymium magnet
system. The driver and passive frequency dividing network are mounted in a vented, injection moulded,
paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The mid-bass and tweeter sections of the Tannoy Dual Concentric
aligned to a true point source; ensuring a wide and controlled dispersion for optimum coverage; this while
avoiding the massive loss of energy, in the vertical plane at the crossover frequency, inherent in two-way
discreet designs. This high power and high sensitivity design, with extended frequency response and very
low distortion, is equipped with dynamic high frequency protection.
This compact unit is specifically designed for applications requiring the combination of premium sonic quality
for music and speech reinforcement and exceptional reliability and intelligibility.
Two CMS801 DC model versions and a separate back can are available to satisfy the vast majority of
installation application requirements:
CMS801 DC BM (Blind Mount) - supplied with an integral back can.
CMS801 DC PI (Pre-Install) - supplied without a back can.
CMS801 PI Back Can (Pre-wire back can) - use with the CMS801 DC PI.
The CMS801 DC BM model is equipped with a low insertion loss 60W line transformer mounted within the
back can. This is easily configurable to the following settings via front baffle mounted rotary tapping switch:
70V systems: 60W / 30W / 15W / 7.5W / OFF & low Impedance operation
100V systems: 60W / 30W / 15W / OFF & low Impedance operation
The CMS801 DC PI is supplied without a transformer. If the product is to be used without a back can a 60W
line transformer (7600 1658) is available as an optional accessory for easy connection to the baffle mounted
control switch circuit. Installing the transformer in this manner (flying) requires installation in accordance
with local building regulations.
NOTE: For optimum performance and full compliance with safety ratings Tannoy recommends using the
CMS801 PI back can (8001 4570) accessory option in which the transformer is pre-fitted.
The zinc plated steel back cans have an integrated, recessed termination box. The removable locking
connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided
by a clamping mechanism for use with plenum rated cable or conduit.
Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied
with two tile support rails and one C-ring included in the package.
A plaster (mud) ring is available as an optional accessory.
Tannoy adopts a policy of continuous improvement and product specification is subject to change.
TM is a point source drive unit design comprising a multi fibre paper
TM constant directivity driver are coincidentally
anfragen@tannoy.com
Features
200mm (8.00") point source Dual Concentric" driver
High power & high sensitivity with extended frequency
response and very low distortion
Wide, controlled constant directivity dispersion for optimum
coverage.
Does not suffer from massive loss of energy in the vertical
plane at crossover caused by two way discreet designs
UV/weather resistant UL94V-0 ABS front baffle
Blind Mount & Pre Install options
Dynamic high frequency protection
Easily accessible tapping switch on front baffle.
Low insertion loss 60W line transformer
Ferrofluid cooled neodymium HF
Packaged with tile rails and C-ring for quick & easy
installation and simple stocking logistics
Five year warranty
Applications
Multi-zone foreground music & paging systems
Boardrooms & offices
Business music systems
Airports, convention centres, hotels
Reception and waiting rooms
Houses of worship
Retail outlets and shopping malls
Lounges and bars
Cruise ships
Courtrooms
CMS801 DC data file // issue 1.07// 15.07.08
