Summary of Contents for Neopost CS-200

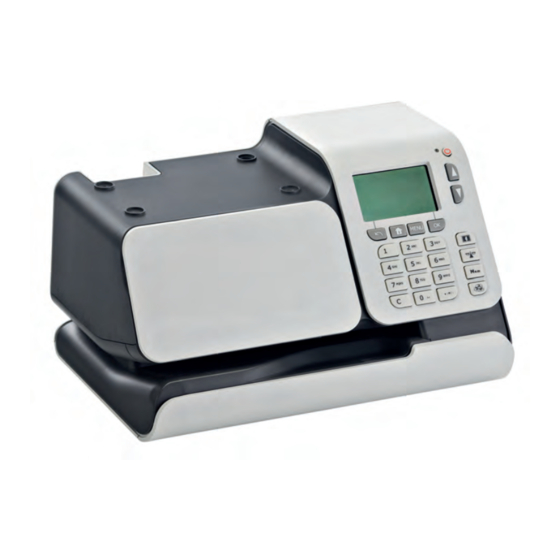

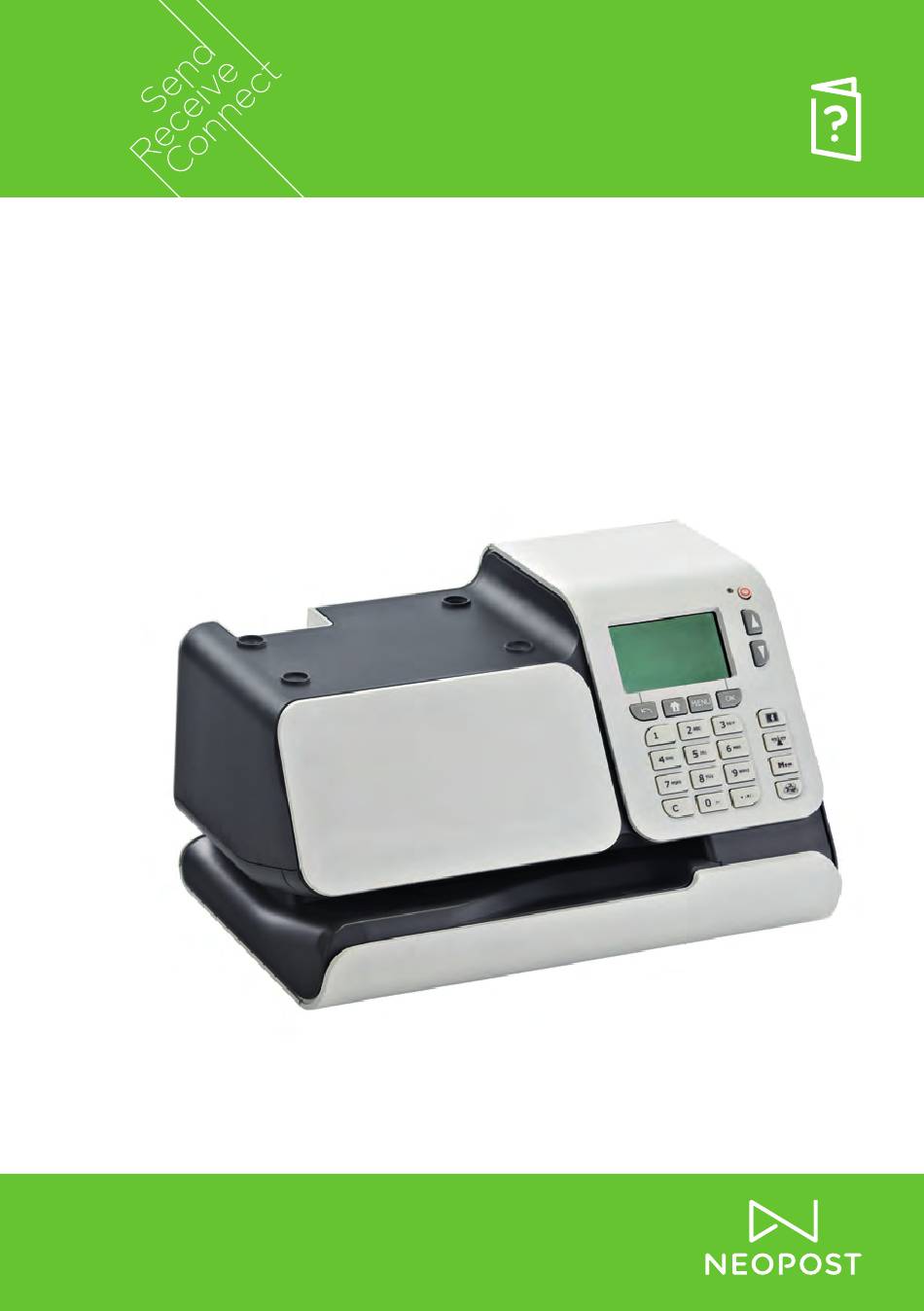

- Page 1 Base Swap Guide Fee-Franking Machine CS-200...
- Page 2 Note: It is extremely important that you follow the steps outlined in this document Disconnecting The Old Base 1. Disconnect the power cable from the wall outlet. This will turn off the CS-200. 2. Disconnect the power adapter from the CS-200.
- Page 3 4. Place the CS-200 onto its back to access the PSD cover. Open the PSD cover by pushing down on the tab. 5. Remove the PSD by sliding it up and then out of the base. Put the PSD aside; it will be re-installed in the new base.
- Page 4 5. Reconnect the USB cable on the internet adapter or phone modem to the USB port on the new CS-200. 6. Connect the power adapter to the back of the new CS-200. 7. Connect the power cable to the wall outlet. This will turn on the CS-200.
- Page 5 3. Depending on your connection type, one of the following will be displayed: - LAN (Internet) - Modem Press “OK”. 4. To check the connection to the server press “OK” or “Continue”. 5. The call is connecting to the server. Do not interrupt this process.
- Page 6 12. It is now time to install the headset. Press “OK” to continue. 13. To Install the headset, Open the front Cover 14. Pull the Blue lever to the open position 15. Fit the headset and then click the blue lever back to the closed position 16.
- Page 7 18. Select the letter that indicates the straightest line and then select “OK” 19. Press “Yes” to restore the settings of your previous base. 20. The transaction is in progress. Do not interrupt this process. 21. The data has been successfully restored. Press “OK”.
- Page 9 A0013336/A - 01/02/2015...
