Model Number:
TPH-200/210

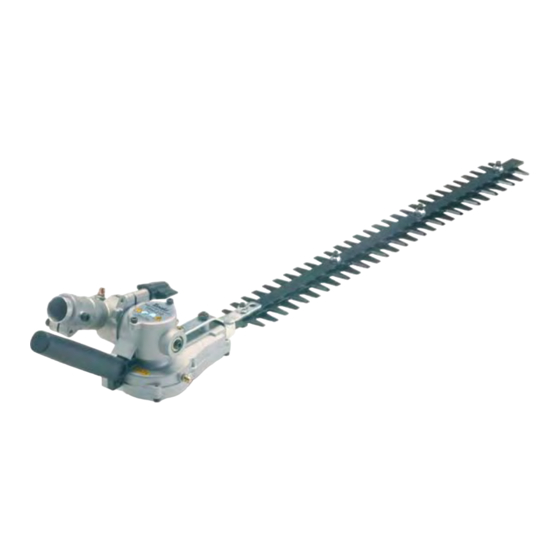

HEDGETRIMMER ATTACHMENT
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4
www.tanakapowerequipment.com
Illustr
Illustr a a a a a ted P
Illustr
Illustr
Illustr
th
Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
ted P
ted P
ar
ar
ted P ar
ar ts Man
ted P
ar
ts Man
ts Man
ts Man ual
ts Man
P/N 31778
Rev 000
Date 1-14-08
custsvc@nikko-tanaka-usa.com
ual
ual
ual
ual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tanaka TPH-210/200
Summary of Contents for Tanaka TPH-210/200
- Page 1 Illustr Illustr Illustr Model Number: TPH-200/210 HEDGETRIMMER ATTACHMENT Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4 www.tanakapowerequipment.com ted P ted P ted P ar ted P Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212...
- Page 2 PARTS INFORMATION TPH-200/210 GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 1 TPH-200 Units Prior to S/N W040350 Page 1 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...
- Page 3 BOLT,HEX HOLE 5x22/S 1-13 99053060125 SCREW,HEX HOLE 6X12 1-14 87132600200 1-15 3013228022 CASE,GEAR 1-16 99961600004 BEARING,BALL,#6000DD 1-23 99961608002 1-27 87132600200 1-44 0863228620 SEAL,GREASE, www.tanakapowerequipment.com PARTS INFORMATION GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 1 DESCRIPTION & Page 2 TPH-200/210 QTY COMMENTS custsvc@nikko-tanaka-usa.com...
- Page 4 PARTS INFORMATION TPH-200/210 GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 2 TPH-200 - Units from S/N W040351 to Z101320 Page 3 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...
- Page 5 ITEM PART NUMBER 99961690101 BEARING,BALL,#6901ZZ 99352012002 RING,STOP,S12,OUTER 2-12 99461050224 BOLT,HEX HOLE 5x22/S 2-16 99961600014 BEARING,BALL,#6000DD www.tanakapowerequipment.com PARTS INFORMATION GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 2 DESCRIPTION & Page 4 TPH-200/210 QTY COMMENTS custsvc@nikko-tanaka-usa.com...
-
Page 6: Parts Information
PARTS INFORMATION TPH-200/210 GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 3 TPH-210 Units After S/N Z101321 Page 5 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com... - Page 7 99461050254 BOLT,HEX HOLE,5X25S 3-13 99053060125 SCREW,HEX HOLE 6X12 3-14 87132600200 3-15 3013228620 3-16 99961600014 BEARING,BALL,#6000DD 3-23 99961608013 3-30 0883228720 3-44 086322 www.tanakapowerequipment.com PARTS INFORMATION GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 3 DESCRIPTION & Page 6 TPH-200/210 QTY COMMENTS custsvc@nikko-tanaka-usa.com...
- Page 8 PARTS INFORMATION TPH-200/210 BLADES, CUTTER GUIDE, BLADE HARDWARE • FIGURE 4 Page 7 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...
- Page 9 BOLT,CUTTER FIXING,A 4-21 99052060255 BOLT,HEX FLUSH,6X25 4-61 1253228720 BOLT,CUTTER FIXING,B www.tanakapowerequipment.com PARTS INFORMATION BLADES, CUTTER GUIDE, BLADE HARDWARE • FIGURE 4 DESCRIPTION " 2 " 2 " 2 " 2 Page 8 TPH-200/210 QTY COMMENTS ~Z101320 ~A290200 Z101321~ A290201~ custsvc@nikko-tanaka-usa.com...
- Page 10 ITEM PART NUMBER 9193233120 DECAL,CAUTION,TPH-210 www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 9 TPH-200/210 DECALS • FIGURE 5 QTY COMMENTS Z101321~ custsvc@nikko-tanaka-usa.com...
