Tanaka THT-2000 Illustrated Parts Manual
  1. Manuals
  2. Brands
  3. Tanaka Manuals
  4. Trimmer
  5. THT-2000
  6. Illustrated parts manual

Tanaka THT-2000 Illustrated Parts Manual

21cc, 20” hedgetrimmer
Hide thumbs Also See for THT-2000:

Advertisement

Quick Links

Download this manual See also: Operation Manual & Safety Instructions, Owner's Manual
Model Number:
THT-2000
21cc, 20" HEDGETRIMMER
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4
www.tanakapowerequipment.com
Illustr
Illustr a a a a a ted P
Illustr
Illustr
Illustr
th
Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
ted P
ted P
ar
ar
ted P ar
ar ts Man
ted P
ar
ts Man
ts Man
ts Man ual
ts Man
P/N 32826
Rev 000
Date 04-09-08
custsvc@nikko-tanaka-usa.com
ual
ual
ual
ual

Advertisement

loading
Need help?

Need help?

Do you have a question about the THT-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Tanaka THT-2000

Summary of Contents for Tanaka THT-2000

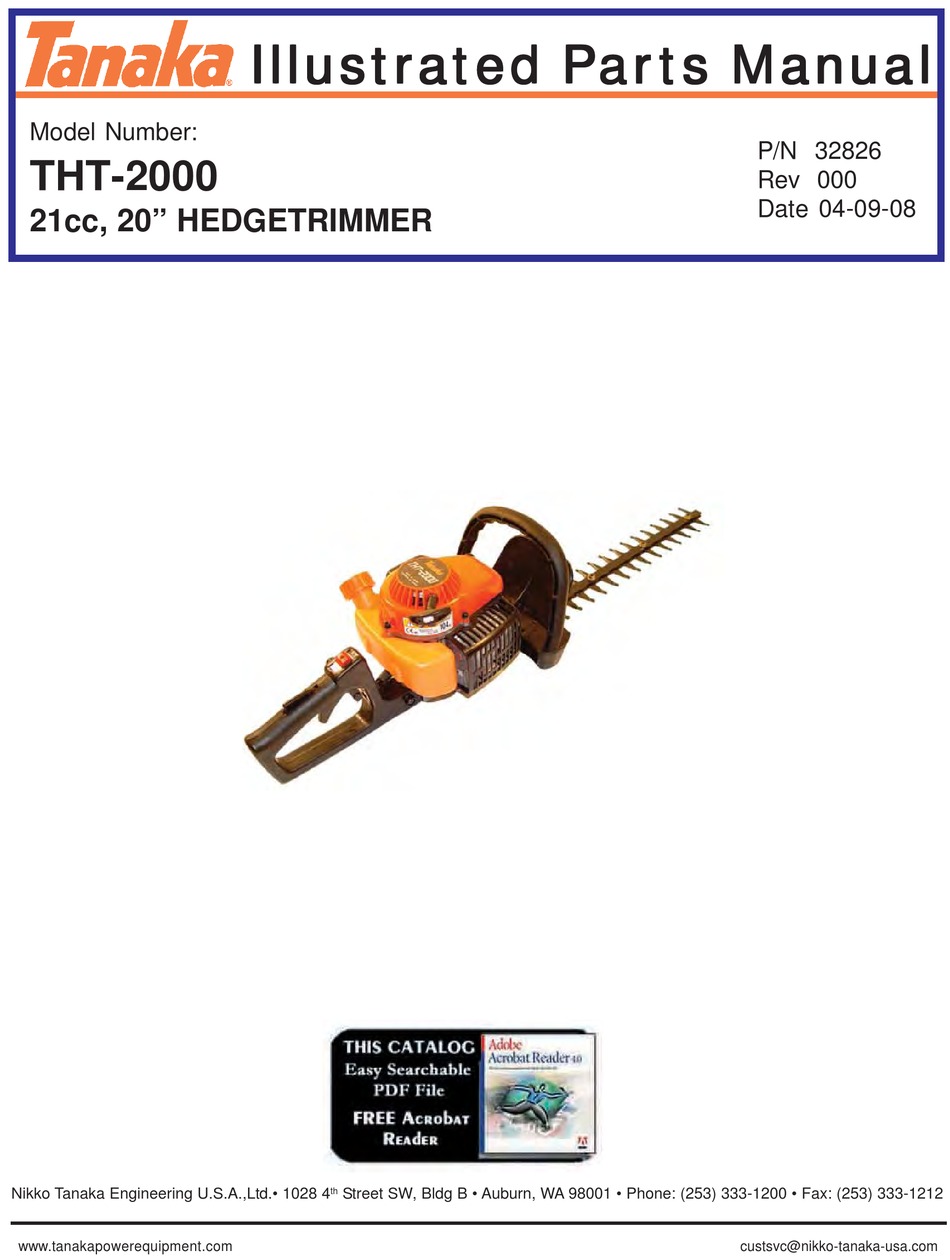

  • Page 1 Illustr Illustr Illustr Model Number: THT-2000 21cc, 20” HEDGETRIMMER Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4 www.tanakapowerequipment.com ted P ted P ted P ar ted P Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212...
  • Page 2 25006500200 TUBE,INSULATOR 1-37 1780650080 CORD,STOP www.tanakapowerequipment.com PARTS INFORMATION CYLINDER, PISTON, CRANKSHAFT • FIGURE 1 DESCRIPTION Page 1 THT-2000 COMMENTS Includes gasket Includes rings and circlips Units prior to S/N ~D070201 Units after S/N D070202~ Units prior to S/N ~D070201 custsvc@nikko-tanaka-usa.com...
  • Page 3 CUSHION 2-30 99461050304 BOLT,HEX,5X30S 2-31 1552154980 ROTOR,MAGNETO 2-34 99101080011 NUT,8 2-35 10002100200 BOLT,STUD,6X22 www.tanakapowerequipment.com PARTS INFORMATION See Figure 1 DESCRIPTION Page 2 THT-2000 CRANKCASE & FLYWHEEL • FIGURE 2 COMMENTS Includes bearings, seals and gasket Shims are as needed custsvc@nikko-tanaka-usa.com...
  • Page 4 THT-2000 PARTS INFORMATION FUEL SYSTEM • FIGURE 3 A small retainer (560-02170- 20), has been added to this model after serial # A099801 to prevent the barrel end of the throttle wire from coming detached from the carburetor. www.tanakapowerequipment.com Page 3...
  • Page 5 5950007390 CAP,TANK 3-55 65900801200 COLLAR 3-58 99463050185 BOLT,HEX 5X18PS 3-59 61425137200 ADJUSTER,CABLE 3-60 99101060013 NUT,6 3-78 7000300507 PIPE,FUEL,3X5X75 3-79 53432710200 GROMMET,FUEL PIPE www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 4 THT-2000 FUEL SYSTEM • FIGURE 3 COMMENTS Includes gasket Includes gasket custsvc@nikko-tanaka-usa.com...
  • Page 6 99463040154 BOLT,HEX,4X15,PS 4-21 75106500200 GASKET,MUFFLER 4-61 99072045164 SCREW,TAPPING,4.5X16 4-65 79006097200 SPRING,STARTER PAWL www.tanakapowerequipment.com PARTS INFORMATION MUFFLER, STARTER, FAN CASE & ENGINE COVER • FIGURE 4 DESCRIPTION Page 5 THT-2000 Recoil Starter Assy #762-06500-90 Incl. items 11-15 and 17-19 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 7 5-201 57825007200 SCREEN,INLET www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 6 THT-2000 CARBURETOR • FIGURE 5 A small retainer (560-02170- 20), has been added to this model after serial # A099801 to prevent the barrel end of the throttle wire from coming detached from the carburetor.
  • Page 8 THT-2000 PARTS INFORMATION HANDLES • FIGURE 6 See Figure 7 www.tanakapowerequipment.com Page 7 custsvc@nikko-tanaka-usa.com...
  • Page 9 36832057200 WASHER,BRAKE SHAFT 6-64 99210050062 WASHER,S,5 6-65 99051050403 BOLT,HEX,5X40 6-73 1641001500 TUBE,PROTECTION,10X150 6-82 65900801200 COLLAR www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 8 THT-2000 HANDLES • FIGURE 6 COMMENTS Includes #25 & #33 only Included in #25 - Rear Handle Ass'y custsvc@nikko-tanaka-usa.com...
  • Page 10 THT-2000 PARTS INFORMATION GEAR CASE & BLADES • FIGURE 7 www.tanakapowerequipment.com Page 9 custsvc@nikko-tanaka-usa.com...
  • Page 11 WASHER,SMALL,5 7-28 99178050010 NUT,LOCK 5 7-29 0703328720 PLATE,HOLDING 7-67 19810246800 CLAMP,CORD 7-69 1383325820 COVER,CUTTER 7-72 99440060011 NUT,SPRING 6 7-75 03629331501 SPANNER,COMBI 7-76 81320000200 WRENCH,HEX,4 www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 10 THT-2000 GEAR CASE & BLADES • FIGURE 7 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 12 ITEM PART NUMBER 9150662020 DECAL,THT-2000 8-17 9203246620 DECAL,CAUTION www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 11 THT-2000 DECALS • FIGURE 8 COMMENTS custsvc@nikko-tanaka-usa.com...
