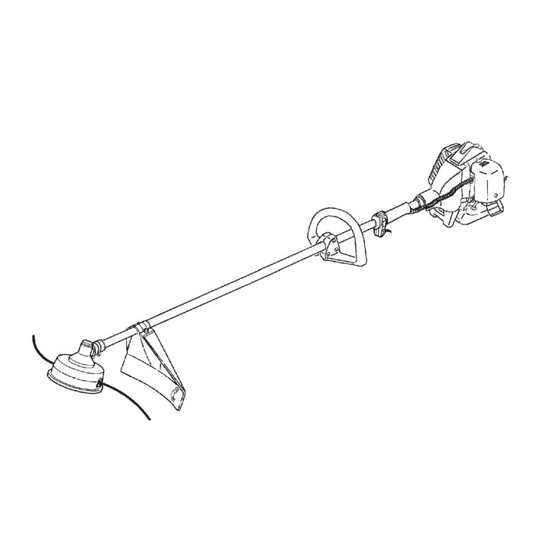

Tanaka TBC-225 Illustrated Parts Manual

Tanaka grass trimmer parts manual
Hide thumbs Also See for TBC-225:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Model Number:
TBC-225
GRASS TRIMMER
Nikko Tanaka Engineering U.S.A., Ltd. • 1028 4
www.tanakapowerequipment.com
Illustr
Illustr a a a a a ted P
Illustr
Illustr
Illustr
Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
th
ted P
ted P
ar
ar
ted P ar
ar ts Man
ted P
ar
ts Man
ts Man
ts Man ual
ts Man
P/N 39721
Rev 000
Date 11-06-08
custsvc@nikko-tanaka-usa.com
ual
ual
ual
ual

Advertisement

loading

Related Manuals for Tanaka TBC-225

Summary of Contents for Tanaka TBC-225

  • Page 1 Illustr Illustr Illustr Model Number: TBC-225 GRASS TRIMMER Nikko Tanaka Engineering U.S.A., Ltd. • 1028 4 www.tanakapowerequipment.com ted P ted P ted P ar ted P Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212...
  • Page 2 CORD B 1-46 99463040154 BOLT,HEX,4X15,PS 1-50 1672054691 COIL,IGNITION 1-56 56020517200 CAP,RUBBER 1-58 1780136M800 CORD,STOP www.tanakapowerequipment.com PARTS INFORMATION CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1 DESCRIPTION Page 1 TBC-225 COMMENTS Includes gasket Includes piston rings and circlips ~B001000 B001001~ ~B001000 custsvc@nikko-tanaka-usa.com...
  • Page 3 2-34 0900641020 GASKET,CRANKCASE 2-36 99461050184 BOLT,HEX,5X18,S 2-51 1552055080 ROTOR,MAGNETO 2-51 1552055081 ROTOR,MAGNETO 2-52 99201080011 WASHER,8 2-54 99101080011 NUT,8 www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 2 TBC-225 CRANKCASE & FLYWHEEL • FIGURE 2 COMMENTS Includes gasket, seals and bearings ~B001000 B001001~ custsvc@nikko-tanaka-usa.com...
  • Page 4 PARTS INFORMATION TBC-225 FUEL SYSTEM • FIGURE 3 Page 3 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...

  • Page 5: Parts Information

    4550713990 CARBURETOR SET 3-67 99463050164 BOLT,HEX,5X16,PS 3-68 99465050205 SCREW,5x20,WS 3-78 7000300508 PIPE,FUEL,3X5X85 3-79 53432710200 GROMMET,FUEL PIPE www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 4 TBC-225 FUEL SYSTEM • FIGURE 3 COMMENTS Includes gasket Before S/N ~D067000 After S/N D067001~ Includes gasket custsvc@nikko-tanaka-usa.com...
  • Page 6 PARTS INFORMATION TBC-225 MUFFLER, CLUTCH & COVER • FIGURE 4 Page 5 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...
  • Page 7 4-38 99205080030 WASHER,8 4-45 99464050304 BOLT,HEX,5X30,WS 4-63 19805015800 CLAMP,CORD 4-77 75104200201 GASKET,MUFFLER 4-78 7340099K90 PIPE,EXHAUST 4-79 99434040081 SCREW,4X8/S 4-80 7320099F90 SET,SPARK ARRESTER www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 6 TBC-225 MUFFLER, CLUTCH & COVER • FIGURE 4 COMMENTS Includes gasket custsvc@nikko-tanaka-usa.com...
  • Page 8 5-24 99463040154 HEX, HOLE BOLT 4X15/PS www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 7 TBC-225 STARTER • FIGURE 5 748744 Consider ordering the 748744, S-Start Kit if you are replacing the starter assy. It decreases the pull- effort by 60%. They are dependable and easy to install.
  • Page 9 ITEM PART NUMBER 41000025900 CLEANER,AIR ASS'Y 42400025200 CAP,AIR CLEANER 44600025200 ELEMENT,CLEANER 47000025200 COLLAR 42300025800 BODY,CLEANER,AIR www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 8 TBC-225 AIR CLEANER • FIGURE 5 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 10 48825145800 7-14 VALVE, THROTTLE 7-15 54825140200 SCREW,THROTTLE SET 7-20 5482515120 SCREW,SET 7-201 57825007200 SCREEN,INLET www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 9 TBC-225 CARBURETOR • FIGURE 7 COMMENTS Includes gasket ~ Contained in Carb Repair Kit P/N 650-25140-900 (not available individually) custsvc@nikko-tanaka-usa.com...
  • Page 11 1120716480 FAN CASE 8-15 99191050001 NUT,5 8-31 2490712K20 SPACER www.tanakapowerequipment.com PARTS INFORMATION This item is no longer sold as assembly. Order individual p arts. DESCRIPTION Page 10 TBC-225 FAN CASE & CLUTCH DRUM • FIGURE 8 COMMENTS Includes bearing custsvc@nikko-tanaka-usa.com...
  • Page 12 PARTS INFORMATION TBC-225 DRIVE SHAFT & FRONT HANDLE • FIGURE 9 Page 11 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...
  • Page 13 SPRING,RETURN 9-43 1623845120 BUTTON,STOP 9-44 9253845120 DECAL,STOP SWITCH 9-45 1563845180 SWITCH,STOP 9-46 99011050301 SCREW,5X30 9-47 99101050011 NUT,5 9-48 1640701701 TUBE,PROTECTION,7x170 9-49 5093845320 GRIP,SHAFT www.tanakapowerequipment.com PARTS INFORMATION DRIVE SHAFT & FRONT HANDLE • FIGURE 9 DESCRIPTION Page 12 TBC-225 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 14 PARTS INFORMATION TBC-225 GEAR CASE & SAFETY GUARD • FIGURE 10 Page 13 www.tanakapowerequipment.com custsvc@nikko-tanaka-usa.com...
  • Page 15 BRACKET,SAFETY GUARD 10-32 7973782020 LIMITER,LINE 10-34 99101040011 NUT,4 10-35 3013836000 SET,GEAR & PINION 10-36 99201040011 WASHER,4 10-38 99414040121 SCREW,4X12/S 10-45 3033836020 COVER,GEAR CASE www.tanakapowerequipment.com PARTS INFORMATION GEAR CASE & SAFETY GUARD • FIGURE 10 DESCRIPTION Page 14 TBC-225 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 16 11-6 7883819520 EYELET 11-7 746560 TRIMMER LINE,.095 11-8 4033819520 DISK 11-9 99414050141 SCREW 11-10 4023819580 SLIDER 11-30 8132901460 WRENCH,HEX 14 11-31 829290052H SPANNER,COMBI 13x19 www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 15 TBC-225 CUTTING HEAD & TOOLS • FIGURE 11 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 17 ITEM PART NUMBER 12-1 9060716220 DECAL,TBC-225C 12-2 9290716420 DECAL,TBC-225 12-4 9233738F20 DECAL,LEVEL 12-10 9193782020 DECAL,CAUTION A 12-26 9233844720 DECAL,LEVEL www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 16 TBC-225 DECALS • FIGURE 12 COMMENTS custsvc@nikko-tanaka-usa.com...
  • Page 18 4453738020 HOLDER,GUARD 3133754720 NUT,FIXING L.H. 8X1.25 3273718090 PIN,COTTER 2X20 (10 PACK) 30060 KIT,BLADE GUARD 746191 STRAP,SHOULDER,PSS-175 www.tanakapowerequipment.com PARTS INFORMATION DESCRIPTION Page 1 748503 QTY COMMENTS Kit used on TBC-225, 230, 245PF, 2500, TBC-225S, TBC-255PF Includes mounting bracket/hardware custsvc@nikko-tanaka-usa.com BLADE KIT...
  • Page 19 S･START KIT A --- TBC2501/D, TPH2501, TPS-2501, TPE2501 B --- TBC230/230B/230D C --- TBC290/290D/340/340D Order Number 748733 748744 748732...
  • Page 20 REF. PART NUMBER NUMBER 756-07075-00 756-07120-00 756-07027-00 762-07075-90 762-07085-90 762-07027-90 785-07085-20 772-07085-80 783-07085-20 780-07085-20 786-07085-20 006,1 778-07027-90 006,1 778-07085-90 006,1 778-07075-90 778-07085-91 328-07085-20 008,1 774-07075-20 008,1 774-07085-20 008,1 774-07027-20 774-07085-21 182-07085-20 990-72050-144 991-01080-011 994-64040-185 806-07027-20 806-07070-20 806-07120-20 990-73045-144 994-64040-125 798-07085-90 991-91050-001 915-07078-20 314-07070-20...
