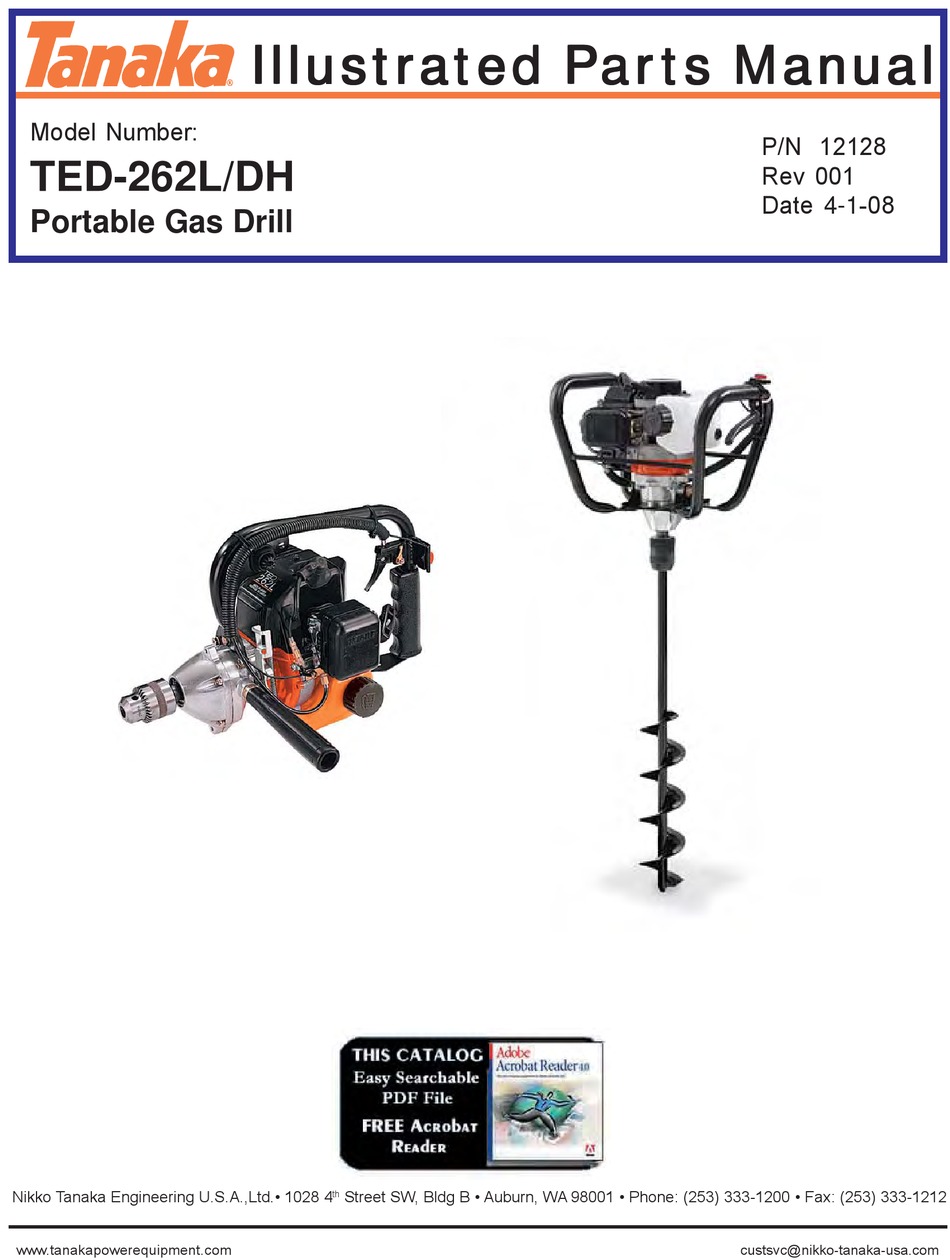

Tanaka TED-262L Illustrated Parts Manual

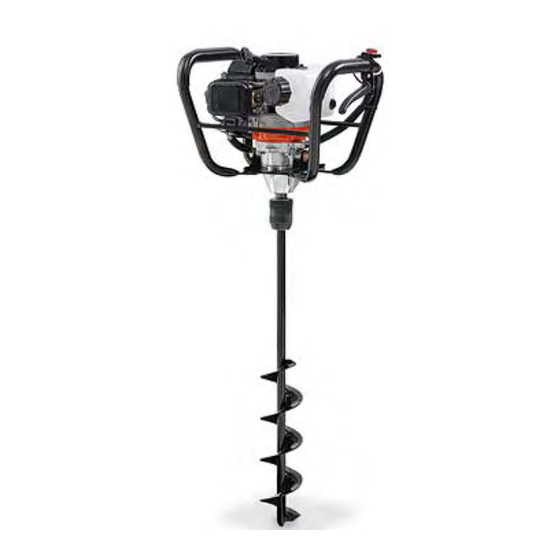

Portable gas drill
Hide thumbs Also See for TED-262L:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Model Number:
TED-262L/DH
Portable Gas Drill
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4
www.tanakapowerequipment.com
Illustr
Illustr a a a a a ted P
Illustr
Illustr
Illustr
Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
th
ted P
ted P
ar
ar
ted P ar
ar ts Man
ted P
ar
ts Man
ts Man
ts Man ual
ts Man
P/N 12128
Rev 001
Date 4-1-08
custsvc@nikko-tanaka-usa.com
ual
ual
ual
ual

Advertisement

loading

Related Manuals for Tanaka TED-262L

Summary of Contents for Tanaka TED-262L

  • Page 1 Illustr Illustr Illustr Model Number: TED-262L/DH Portable Gas Drill Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4 www.tanakapowerequipment.com ted P ted P ted P ar ted P Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212...
  • Page 2 PISTON SET 03701700200 PIN,PISTON 03900000201 CIRCLIP,PISTON PIN 0460162S81 CRANKSHAFT 1-10 99962091338 BEARING,NEEDLE,KTV91313 1-11 06810100200 KEY,WOODRUFF,3X13X4.5 1-30 99414050161 SCREW,5X16/S www.tanakapowerequipment.com PARTS INFORMATION CYLINDER, PISTON, CRANKSHAFT • FIGURE 1 Page 1 TED-262L/DH COMMENTS ~S279070 S279071~ Includes gasket Includes piston pin and circlips custsvc@nikko-tanaka-usa.com...
  • Page 3 PARTS INFORMATION TED-262L/DH CRANKCASE, FLYWHEEL, IGNITION • FIGURE 2 www.tanakapowerequipment.com Page 2 custsvc@nikko-tanaka-usa.com...
  • Page 4 LEAD,HIGH TENSION www.tanakapowerequipment.com PARTS INFORMATION CRANKCASE, FLYWHEEL, IGNITION • FIGURE 2 Page 3 TED-262L/DH COMMENTS Variable - use as needed for clearance Variable - use as needed for clearance Variable - use as needed for clearance Variable - use as needed for clearance...
  • Page 5 TANK,FUEL 3-57 99415040182 SCREW,PS,4X18 3-74 99416050601 SCREW,5x60WS 3-78 7000300507 PIPE,FUEL,3X5X75 3-79 53432710200 GROMMET,FUEL PIPE 3-81 99415040142 SCREW,4X14/PS 3-86 99416050241 SCREW 5x24WS www.tanakapowerequipment.com PARTS INFORMATION Page 4 TED-262L/DH FUEL SYSTEM (LATEST REV) • FIGURE 3 COMMENTS Includes gasket Includes gasket custsvc@nikko-tanaka-usa.com...

  • Page 6: Parts Information

    S279071 & Z207351 www.tanakapowerequipment.com PARTS INFORMATION FUEL SYSTEM (OLDER VERSIONS) • FIGURE 4 Page 5 TED-262L/DH Tanaka Parts Update To Convert To The Primer Type Fuel System Order The Following Parts*; 455.01602.90 Carburetor 591.01620.80 Fuel Tank 700.03005.350 Fuel Pipe 534.32710.200 Grommet 595.03002.90 Gas Cap...
  • Page 7 68000206200 CLIP,5.5 4-124 68000206200 CLIP,5.5 4-125 5610007020 COVER,AIR VENT 4-125 5610007020 COVER,AIR VENT www.tanakapowerequipment.com PARTS INFORMATION Page 6 TED-262L/DH FUEL SYSTEM • FIGURE 4 COMMENTS ~S279070 S279071~ ~S279070 S279071~ Includes gasket ~S279070 S279071~ S279071~ Includes gasket ~S279070 ~S279070 S279071~ ~T253552...
  • Page 8 PARTS INFORMATION TED-262L/DH MUFFLER, CLUTCH & COVER • FIGURE 5 www.tanakapowerequipment.com Page 7 custsvc@nikko-tanaka-usa.com...
  • Page 9 SCREW,5X18/PS 5-63 99415050122 SCREW,5X12/PS 5-77 99413040122 SCREW,4X12/P 5-79 99051050453 BOLT,HEX,5X45 5-80 99201050061 WASHER,5 5-84 99414050161 SCREW,5X16/S 5-89 99413050101 SCREW,5X10/P 5-91 13201620200 DEFLECTOR,AIR www.tanakapowerequipment.com PARTS INFORMATION Page 8 TED-262L/DH MUFFLER, CLUTCH & COVER • FIGURE 5 COMMENTS ~S279070 ~S279070 ~S279070 custsvc@nikko-tanaka-usa.com...
  • Page 10 DESCRIPTION 4100650D90 AIR CLEANER ASSY 4240602K201 CAP,CLEANER 4460602K200 ELEMENT,CLEANER 4530602K200 COLLAR 4700602K200 COLLAR 47000025200 COLLAR 5280602D200 PLATE,CHOKE 5280072Z20 PLATE,CHOKE 5280635A200 PLATE,CHOKE 4230072Z81 BODY,CLEANER www.tanakapowerequipment.com PARTS INFORMATION Page 9 TED-262L/DH AIR FILTER • FIGURE 6 COMMENTS ~R007764 R007765~ ~R007764 S279071~ custsvc@nikko-tanaka-usa.com...
  • Page 11 7880163021 PAWL,STARTER 80105015200 WASHER,STARTER PULLEY 7-10 8370501521 FRICTION PLATE 7-10 8370423020 PLATE,FRICTION 7-11 82205015200 SHIM,PULLEY 7-11 8220423020 SHIM,STARTER PULLEY 7-12 8390423020 BOLT,SET www.tanakapowerequipment.com PARTS INFORMATION Page 10 TED-262L/DH STARTER • FIGURE 7 COMMENTS ~V202950 V202951~ ~V202950 V202951~ ~V202950 V202951~ custsvc@nikko-tanaka-usa.com...
  • Page 12 PARTS INFORMATION TED-262L/DH CARBURETOR • FIGURE 8 Units prior to serial number S279070 www.tanakapowerequipment.com Page 11 custsvc@nikko-tanaka-usa.com...
  • Page 13 8-23 48925008200 RING,STOP 8-24 54825012200 SCREW,SET 8-25 51425001200 SCREW,SET 8-26 54625001200 SCREW,SET,HINGE PIN 8-27 46725003200 SCREW,SHUTTER www.tanakapowerequipment.com PARTS INFORMATION Page 12 TED-262L/DH CARBURETOR • FIGURE 8 COMMENTS ~S279070 ~ Contained in Carb Repair Kit P/N 650-25001-910 (not available individually) custsvc@nikko-tanaka-usa.com...
  • Page 14 54825101200 SCREW,SET 9-22 61425137200 ADJUSTER,CABLE 9-23 99101060013 NUT,6 9-24 4310634C200 GASKET,CLEANER 9-41 5492516520 WASHER,THRUST www.tanakapowerequipment.com PARTS INFORMATION Page 13 TED-262L/DH CARBURETOR • FIGURE 9 COMMENTS S279071~ Includes gasket ~ Contained in Car Repair Kit P/N 650.25124.900 (not available individually) custsvc@nikko-tanaka-usa.com...
  • Page 15 99101060013 NUT,6 10-24 4310634C200 GASKET,CLEANER 10-25 4422515180 PUMP,PRIMING 10-26 44725108200 BULB,PRIMING 10-41 5492516520 WASHER,THRUST www.tanakapowerequipment.com PARTS INFORMATION Page 14 TED-262L/DH CARBURETOR • FIGURE 10 COMMENTS Z207350~ Includes gasket ~ Contained in Car Repair Kit P/N 650.25124.900 (not available individually) custsvc@nikko-tanaka-usa.com...
  • Page 16 PARTS INFORMATION TED-262L/DH GEAR CASE • FIGURE 11 Units after S/N C085101 Use P/N 018.32182.00 Gear Set (#14 & #5) TED-262L www.tanakapowerequipment.com Page 15 custsvc@nikko-tanaka-usa.com...
  • Page 17 79310200202 BOLT,STEP 11-89 99201070011 WASHER,7 11-90 06032120911 CHUCK,1/2" www.tanakapowerequipment.com PARTS INFORMATION Page 16 TED-262L/DH GEAR CASE • FIGURE 11 COMMENTS C085101~ NLA - Use 018.32182.00 Gear Set After S/N C085101~ NLA - Use 018.32182.00 Gear Set After S/N C085101~ custsvc@nikko-tanaka-usa.com...
  • Page 18 PARTS INFORMATION TED-262L/DH HANDLES & THROTTLE • FIGURE 12 Units Prior to S/N P151800 Units before S/N Z248300 Units after S/N Z248301 45-2 TED-262DH TED-262DH www.tanakapowerequipment.com Page 17 custsvc@nikko-tanaka-usa.com...
  • Page 19 12-86 1703217580 SWITCH,STOP 12-87 99101040011 NUT,4 12-88 99414040161 SCREW,S,4X16 12-90 19833130200 CLAMP,CORD www.tanakapowerequipment.com PARTS INFORMATION Page 18 TED-262L/DH HANDLES & THROTTLE • FIGURE 12 COMMENTS ~N204150 N204151~ ~N204150 N204151~ ~Z248301 From N204150 to Z248300 N204151~ ~N204150 ~N204150 ~N204150 ~N204150 ~N204150...
  • Page 20 HOLDER,CHUCK KEY 13-71 2581165020 BUTTON,STOP 13-72 99011030101 SCREW,3X10 13-76 9253317620 DECAL,STOP BUTTON 13-81 8850162V800 WIRE,THROTTLE 13-81 8850160180 WIRE,THROTTLE 13-82 2653218280 HANDLE,BRACE www.tanakapowerequipment.com PARTS INFORMATION Page 19 TED-262L/DH HANDLES & THROTTLE • FIGURE 13 COMMENTS ~S279070 S279071~ ~S279070 S279071~ R197189~ custsvc@nikko-tanaka-usa.com...
  • Page 21 84520000200 SPANNER,DRILL CHUCK 14-7 29728 ADAPTER 14-8 EBF-PIN PIN,8X60mm 14-9 ASP-100 PIN,SNAP,EBF/IBH 14-10 99201080011 WASHER,8 14-11 27218 KEYLESS CHUCK 1/2" www.tanakapowerequipment.com PARTS INFORMATION CHUCK, KEY, ADAPTER, TOOLS • FIGURE 14 Page 20 TED-262L/DH COMMENTS OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL custsvc@nikko-tanaka-usa.com...
  • Page 22 ITEM PART NUMBER DESCRIPTION 15-1 95037900200 DECAL,PRO-FORCE A 15-2 90632173200 DECAL 15-3 9060163V20 DECAL 15-4 9060162T20 DECAL 15-17 9203246620 DECAL,CAUTION www.tanakapowerequipment.com PARTS INFORMATION Page 21 TED-262L/DH DECALS • FIGURE 15 COMMENTS R007765~ custsvc@nikko-tanaka-usa.com...

This manual is also suitable for:

Ted-262dh
