Summary of Contents for Microtech FireSCSI Xpress IEEE1394

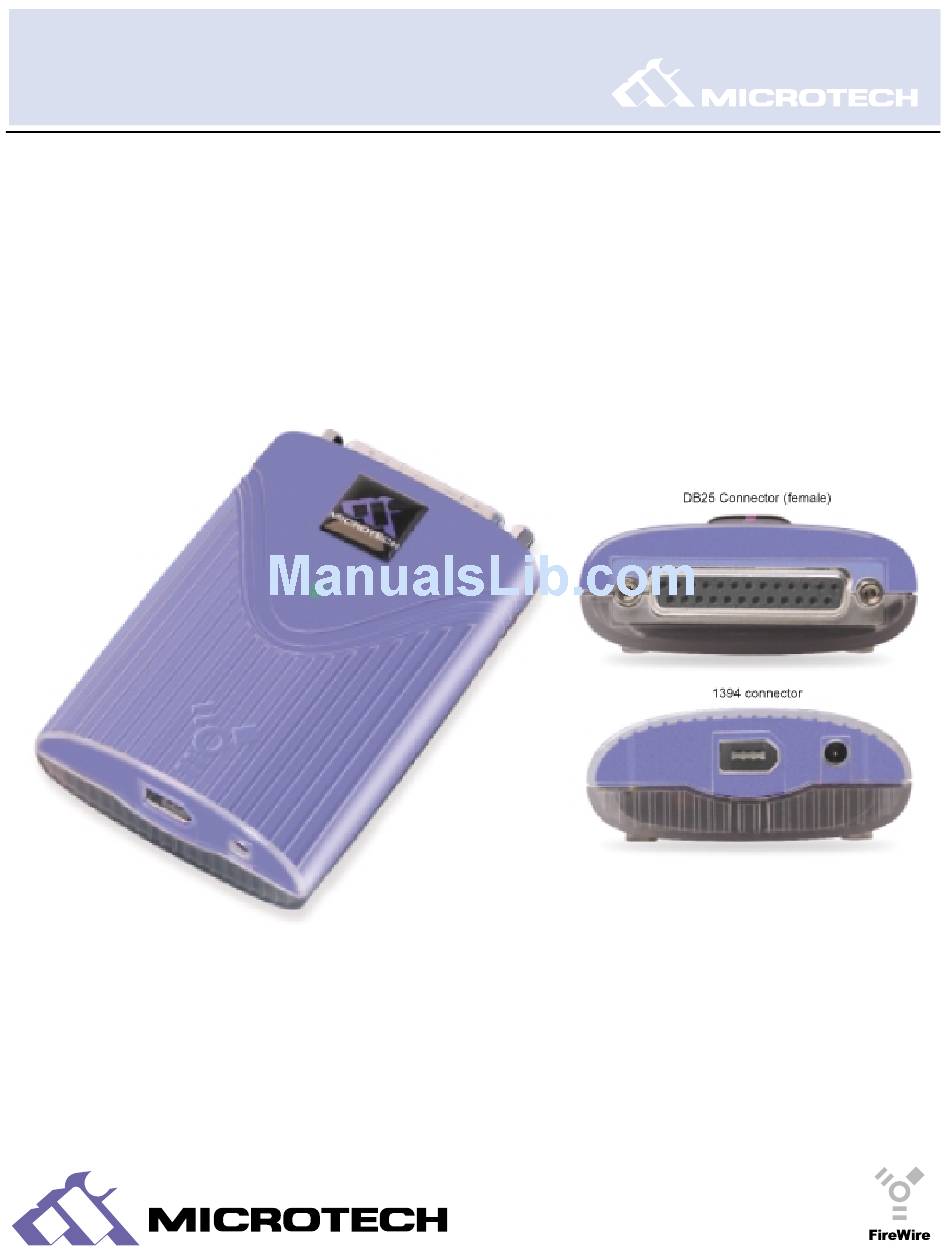

- Page 1 USER'S MANUAL USER'S MANUAL USER'S MANUAL USER'S MANUAL FireSCSI Xpress FireWire (IEEE1394) to SCSI Adapter I N T E R N A T I O N A L, I N C.
-
Page 2: Table Of Contents
USER'S USER'S MANUAL MANUAL CONTENTS Controls within Adobe ® Acrobat What's included with the FireSCSI Xpress Connecting to a Macintosh Installing the driver software Connect a SCSI device to the FireSCSI Xpress Connect the FireSCSI Xpress to your computer Using the FireSCSI Xpress Connecting to a PC Compatible Installing the driver software Connect a SCSI device to the FireSCSI Xpress... -
Page 3: Acrobat Reader
USER'S MANUAL USER'S MANUAL Controls within Adobe ® This manual has been produced as a Portable Document Format (PDF). Using the Adobe Acrobat Reader, this manual may be viewed either directly on-screen or printed using your own printer. Go to next page or to previous page. (Note: The "Left" and "Right" arrows on the keyboard can also be used to advance to the previous or next page. - Page 4 USER'S USER'S MANUAL MANUAL GETTING STARTED...
-
Page 5: What's Included With The Firescsi Xpress
USER'S MANUAL USER'S MANUAL Introduction: Thank you for purchasing the FireSCSI Xpress from Microtech International, Inc. The FireSCSI Xpress is a USB to SCSI converter for new Apple Macintosh and PC Compatible owners who wish to use their existing SCSI peripherals such as hard drives, Zip drives, and CD- ROM drives on a enabled system. - Page 6 USER'S USER'S MANUAL MANUAL CONNECTING to a Macintosh...
-
Page 7: Installation Overview
USER'S MANUAL USER'S MANUAL Installation Overview The FireSCSI Xpress is relatively easy to install and operate. To avoid complications during the installation process, please follow the steps in order as described in this chapter. Installing the Driver Software Macintosh Installation (Mac OS 8.5 or above): Insert the Microtech Installer CD-ROM Double-click on the "Microtech Installer"... -
Page 8: Connect A Scsi Device To The Firescsi Xpress
USER'S MANUAL USER'S MANUAL Connect a SCSI Device to the FireSCSI Xpress Microtech includes accessories to help make setup as convenient and hassle free as possible. The SCSI connector on your FireSCSI Xpress model may or may not be the appropriate SCSI connector to use in your system configuration (depending on the type of connectors on your SCSI device(s). -
Page 9: Scsi Termination
USER'S MANUAL USER'S MANUAL Connect the FireSCSI Xpress to your computer Connect one end of the FireWire (IEEE1394) cable to the FireSCSI Xpress. Then connect the other end to and available FireWire port on your Macintosh computer as shown. Follow any special instructions that accompanied your SCSI deviceand then restart your computer to complete the installation. - Page 10 USER'S MANUAL USER'S MANUAL SCSI Addressing As only one device can be connected at once, the SCSI address on your SCSI device can be set at any ID you choose. Using the FireSCSI Xpress The FireSCSI Xpress cable by itself is "hot-pluggable," that is it can be safely attached to and detached from a live system.
-
Page 11: Connecting To A Pc Compatible
USER'S USER'S MANUAL MANUAL CONNECTING to a PC Compatible... - Page 12 USER'S MANUAL USER'S MANUAL Installation Overview The FireSCSI Xpress is relatively easy to install and operate. To avoid complications during the installation process, please follow the steps in order as described in this chapter. IInstalling the Driver Software For Windows 98SE: Insert the Microtech Installer CD-ROM.
-
Page 13: Connect A Scsi Device To The Firescsi Xpress
USER'S MANUAL USER'S MANUAL Connect a SCSI Device to the FireSCSI Xpress Microtech includes accessories to help make setup as convenient and hassle free as possible. The SCSI connector on your FireSCSI Xpress model may or may not be the appropriate SCSI connector to use in your system configuration (depending on the type of connectors on your SCSI device(s). -
Page 14: Connect The Firescsi Xpress To Your Computer
USER'S MANUAL USER'S MANUAL Connect the FireSCSI Xpress to your computer Connect one end of the IEEE1394 cable to the FireSCSI Xpress. Then connect the other end to an available IEEE1394 port on your Macintosh computer as shown. Follow any special instructions that accompanied your SCSI device and then restart your computer to complete the installation. - Page 15 USER'S MANUAL USER'S MANUAL SCSI Addressing As only one device can be connected at once, the SCSI address on your SCSI device can be set at any ID you choose. Using the FireSCSI Xpress The USB Xpress SCSI is hot-pluggable on the Windows 98 operating environment, meaning that you can connect and disconnect the cable from your computer without having to shutdown.
-
Page 16: Obtaining Technical Support
USER'S USER'S MANUAL MANUAL OBTAINING Technical Support... -
Page 17: Solutions To Common Problems
USER'S MANUAL USER'S MANUAL Solutions to Common Problems If you are experiencing problems regarding your FireSCSI Xpress refer to the questions below for a possible solution. Additionally up to the minute tips and solutions can also be found on our web site: www.microtechint.com. - Page 18 USER'S MANUAL USER'S MANUAL The SCSI connector on my FireSCSI Xpress does not appear to be the same as on my SCSI device(s) — how do I connect them? A. The SCSI connector on your FireSCSI Xpress model may or may not be the appropriate SCSI connector to use in your system configuration (depending on the SCSI connection required for your hardware set up.
-
Page 19: Contacting Microtech Technical Support
USER'S MANUAL USER'S MANUAL Contacting Microtech Technical Support The FireSCSI Xpress is relatively easy to install and operate and normally should not produce many complications. However, if you need assistance or have questions of any kind, our trained staff members are ready to help. Our Technical Support and Customer Service Departments can be reached via e-mail at tech@microtechint.com or by calling 800-666-9689 or 203-483-9402 from 8:00 a.m. -
Page 20: Microtech Limited Warrantys
USER'S MANUAL USER'S MANUAL MICROTECH LIMITED WARRANTY Microtech’s warranty obligations are limited to the terms set forth below: Microtech International, Inc., (“Microtech”) warrants this product against defects in material and workmanship for the period of two (2) years. The warranty period begins with the date of original retail purchase. This limited warranty is made only to the original end user purchaser ("you") of the product and does not extend to any subsequent purchasers or owners of the product. - Page 21 USER'S USER'S MANUAL MANUAL CONTACTING Microtech International Microtech International, Inc. is an industry leader in digital connectivity solutions and personal computer memory upgrades. Our digital connectivity solutions include an exten- sive line of PC Card and flash memory readers and media, which improve the performance, capacity, and flexibility of any digital appliance.
- Page 22 USER'S MANUAL USER'S MANUAL Copyright Information The contents of this manual are copyrighted by Microtech International, Inc. and may not be reproduced in whole or in part without written permission of Microtech International, Inc. The same proprietary and copyright notices must be affixed to any permitted copies as were affixed to the original.
