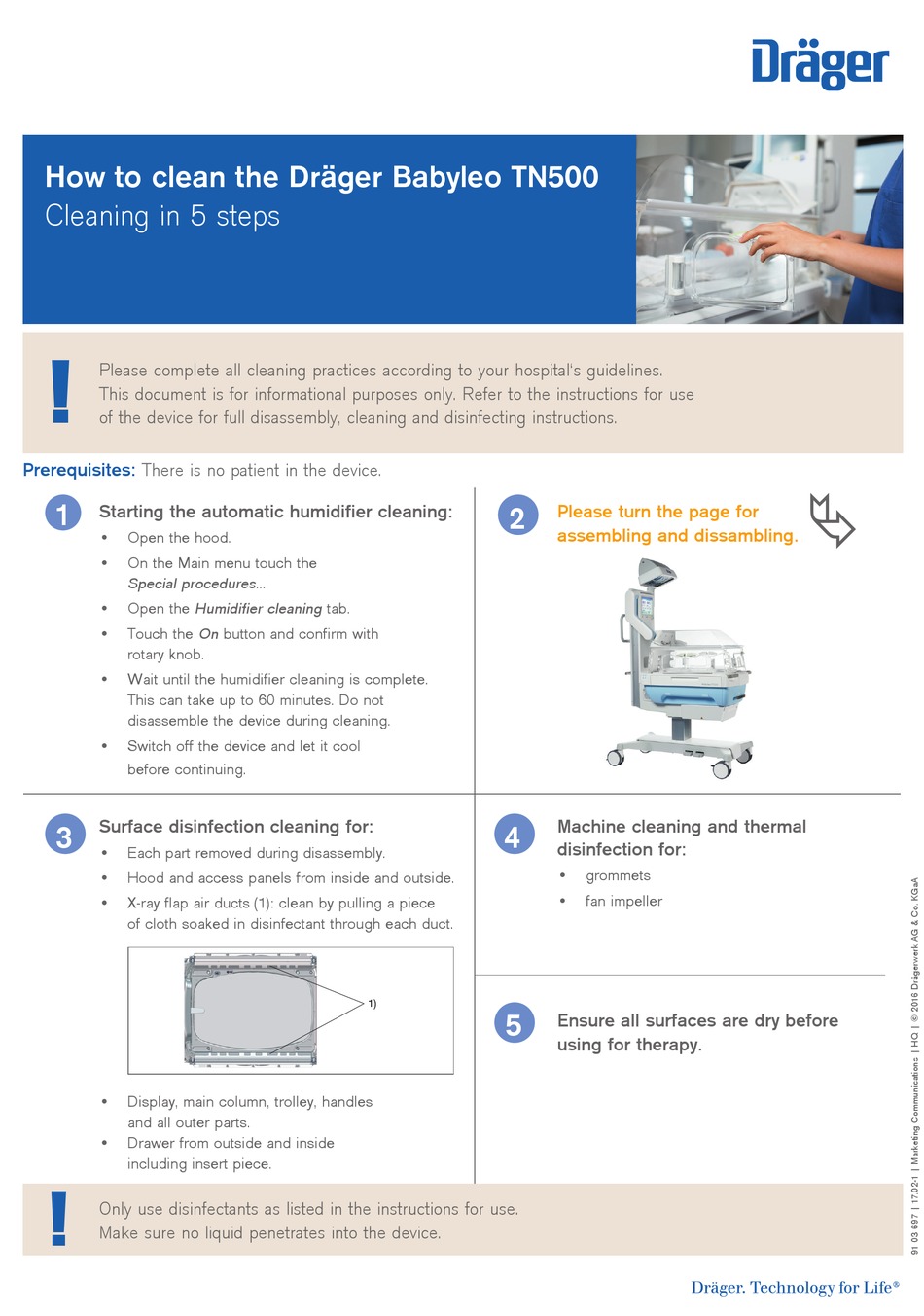

Dräger Babyleo TN500 Cleaning Manual

How to clean the Dräger Babyleo TN500
Cleaning in 5 steps
!
Please complete all cleaning practices according to your hospital's guidelines.
This document is for informational purposes only. Refer to the instructions for use
of the device for full disassembly, cleaning and disinfecting instructions.
Prerequisites: There is no patient in the device.
1
Starting the automatic humidifier cleaning:
• Open the hood.
• On the Main menu touch the
Special procedures ...
• Open the Humidifier cleaning tab.
Touch the On button and confirm with
•
rotary knob.
• Wait until the humidifier cleaning is complete.
This can take up to 60 minutes. Do not
disassemble the device during cleaning.
• Switch off the device and let it cool
before continuing.
Surface disinfection cleaning for:
3
• Each part removed during disassembly.
• Hood and access panels from inside and outside.
• X-ray flap air ducts (1): clean by pulling a piece
of cloth soaked in disinfectant through each duct.
• Display, main column, trolley, handles
and all outer parts.
• Drawer from outside and inside
including insert piece.
!
Only use disinfectants as listed in the instructions for use.
Make sure no liquid penetrates into the device.
2
4
1)
5
Please turn the page for
assembling and dissambling.
Machine cleaning and thermal
disinfection for:
• grommets
• fan impeller
Ensure all surfaces are dry before
using for therapy.

