Fantech RIL-150SW Installation & Maintenance Instructions

In-line duct mounted fan

Enlarged version

2.5. Mount the base in the desired position using the fasteners supplied.

2.6. Replace the fan body in-between the spigots and tighten the two

retaining clamps or clamp screws.

3.1. Inspect the fan at least once every 12 months to ensure that the motor

and fan blades are clean. Any build up of dust should be removed using

a non-abrasive cleaner.

3.2. All fastenings should be checked for tightness.

3.3. Bearings are of the 'sealed for life' type and will not need a detailed

inspection.

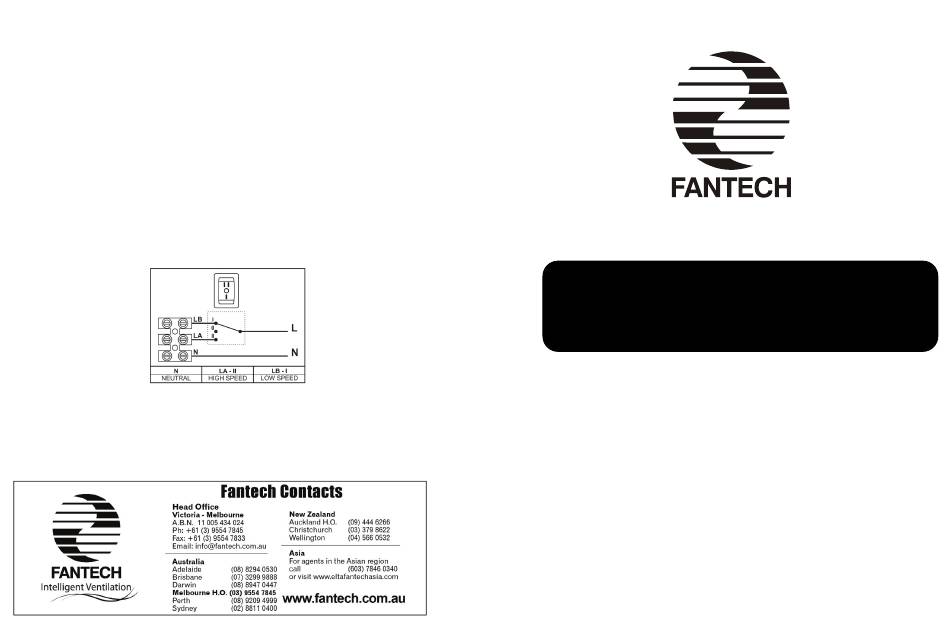

Wiring Diagram

Part No: INST-RIL-SW 11/12

In-Line

Duct Mounted Fan

RIL-150SW

RIL-200SW

INSTALLATION & MAINTENANCE

INSTRUCTIONS

Table of Contents

Do you have a question about the RIL-150SW and is the answer not in the manual?

Page 1: Wiring Diagram
3.2. All fastenings should be checked for tightness. 3.3. Bearings are of the ‘sealed for life’ type and will not need a detailed inspection. Wiring Diagram In-Line Duct Mounted Fan RIL-150SW RIL-200SW Contact Us INSTALLATION & MAINTENANCE INSTRUCTIONS Part No: INST-RIL-SW 11/12...
Page 2 2.4. Remove the fan body from the spigots that are attached to the base by To select high or low speed, switch the speed selector fitted to releasing the two retaining clamps (RIL-150SW, see diagram), or the the side of the unit’s junction box to either “II” for high speed or two clamp screws (RIL-200SW).
