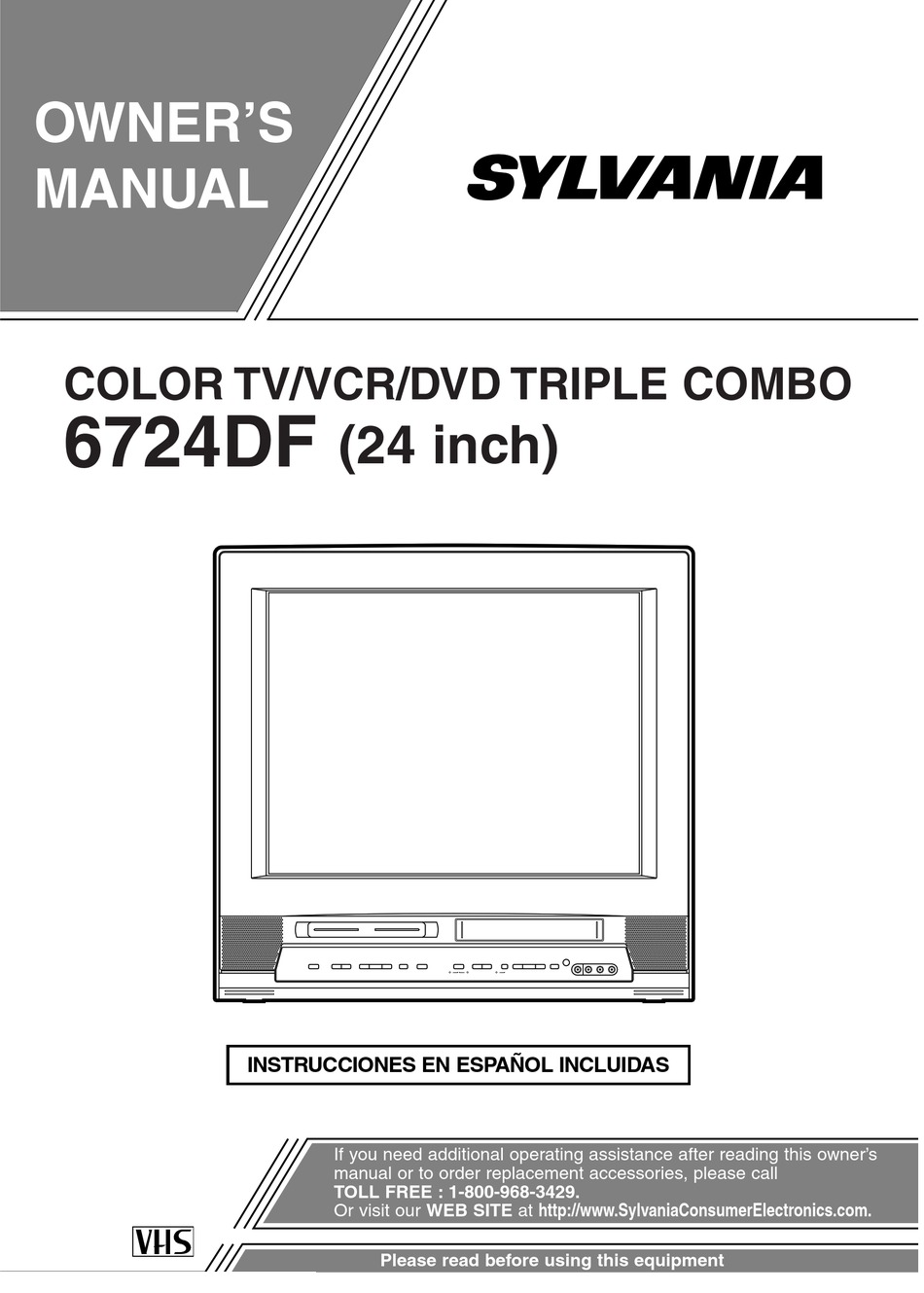

OWNER'S
MANUAL
COLOR TV/VCR/DVD TRIPLE COMBO
6724DF
(24 inch)
INSTRUCCIONES EN ESPAÑOL INCLUIDAS
If you need additional operating assistance after reading this owner's
manual or to order replacement accessories, please call
TOLL FREE : 1-800-968-3429.
Or visit our WEB SITE at http://www.SylvaniaConsumerElectronics.com.
Please read before using this equipment
I
I
I
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sylvania 6724DF
Summary of Contents for Sylvania 6724DF
- Page 1 OWNER’S MANUAL COLOR TV/VCR/DVD TRIPLE COMBO 6724DF INSTRUCCIONES EN ESPAÑOL INCLUIDAS (24 inch) If you need additional operating assistance after reading this owner’s manual or to order replacement accessories, please call TOLL FREE : 1-800-968-3429. Or visit our WEB SITE at http://www.SylvaniaConsumerElectronics.com.
-
Page 2: Important Safeguards
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. - Page 3 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECT RICAL CODE NEC - NATI O NAL EL ECTRI CAL CO DE S2 8 9 8 A 13. Outdoor Antenna grounding - If an outside antenna or cable system is connected to the unit, be sure the anten- na or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
-
Page 4: C Precautions
IMPORTANT COPYRIGHT INFORMATION Unauthorized copying, broadcasting, public perfor- mance and lending of discs are prohibited. This product incorporates copyright protection tech- nology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise autho- rized by Macrovision. -
Page 5: Location
LOCATION For safe operation and satisfactory performance of your unit, keep the following in mind when selecting a place for its installation: • Shield it from direct sunlight and keep it away from sources of intense heat. • Avoid dusty or humid places. •... -
Page 6: Table Of Contents
C IMPORTANT SAFEGUARDS ..2 C PRECAUTIONS ....4 LOCATION ....5 AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE .5 WARNING . -
Page 7: C Features
TV/VCR Mode ¡ Hi-Fi system The Hi-Fi stereo recording system offers you excellent sound quality with a dynamic range of 80dB, frequency response from 20Hz to 20kHz and 0.005% wow and flutter. ¡ Rotary 4-head Record/Playback System Four heads ensure excellent picture quality and special effects playback. - Page 8 DVD Mode ¡ Dolby Digital sound This unit can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder ¡ Still/fast/slow/step playback Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.
-
Page 9: Functions
OPERATING CONTROLS AND FUNCTIONS - FRONT PANEL - [Fig.1] POWER L VOLUME K H SKIP B PLAY E – SEARCH – D - REMOTE CONTROL - [Fig. 2] POWER PICTURE SLEEP PAUSE +100 SPEED C.RESET ZOOM (DVD) PLAY (TV/VCR) STOP RECORD DISPLAY ENTER... - Page 10 - REAR PANEL - [Fig.3] ANT. VIDEO input Jack Connect to the video output jack of a video camera or VCR. AUDIO L/R input Jacks Connect to the audio output jacks of a video camera or VCR. Cassette compartment PICTURE Button Press to adjust the picture.
-
Page 11: Installing The Batteries
MUTE Button [TV/VCR P.15] Mutes the sound. Press it again to restore sound. SLEEP Button [TV/VCR P.16] Sets the Sleep Timer. ANT. Jack [P.12] Connect to an antenna, cable system or satellite system. NOTE: • We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control. -
Page 12: C Preparation For Use
ANTENNA/CABLE CONNECTIONS Plug the incoming cable into the ANT. jack on the rear of the unit. If your cable service supplies you with a converter box or if you use a satellite system, connect the box with this unit as shown below. Cable Antenna TV signal... -
Page 13: Connecting To Front A/Vinput Jacks
CONNECTING TO FRONT A/V INPUT JACKS When you watch a program recorded on another source (VCR or video camera), use the AUDIO/VIDEO input jacks on the front of the unit. Connect the Audio/Video output jacks of another source to the AUDIO L/R and VIDEO jacks of this unit. -
Page 14: Connecting To A Dolby Digital Decoder (For Dvd)
CONNECTING TO A DOLBY DIGITAL DECODER (for DVD) If using this unit to play a DVD disc in a 5.1 channel Dolby Digital surround format, the unit outputs a DOLBY DIGITAL Data stream from its AUDIO OUT COAXIAL jack. By hooking the unit up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound as enjoyed in movie theaters. -
Page 15: Tv/Vcr Section
TV OPERATION AND SETTINGS WATCHING A TV PROGRAM Plug in the unit power cord Plug the unit power cord into a standard AC outlet. NOTE: • If any digits appear in the corner of the screen, press [POWER] without unplugging the power cord. -
Page 16: Sleep Timer
SLEEP TIMER The Sleep Timer function turns off the unit without using [POWER] after a desired period of time. NOTE: • This function does not work during the record- ing mode. Call up the Sleep Timer Setting Press [SLEEP] so that “SLEEP 0 MINUTE” appears. Set sleep time Press [SLEEP] repeatedly until your desired sleep time appears. -
Page 17: Channel Set Up
CHANNEL SET UP Make sure ... • The unit must be turned on. AUTO CHANNEL PROGRAMMING As the initial setting, this unit has memorized all channels, including the ones not available in your area. This feature automatically puts only available channels into the memory. -
Page 18: Manual Clock Setting
CLOCK SET UP (AUTO / MANUAL) The unit clock must be set correctly so that VCR timer recording is possible. It is suggested that the clock be set manually when first setting up the unit, then set to [ON] the auto clock setting which will periodically correct the setting if necessary. -
Page 19: Daylight-Saving Time
AUTOMATIC CLOCK SETTING Make sure ... • The unit must be turned on. • Confirm the unit is receiving a RF (Radio Frequency) signal from either an antenna or cable system connection using the ANT. jack on the rear of the unit. NOTES: •... -
Page 20: V-Chip Set Up
V-CHIP SET UP This feature enables parents to prevent their children from watching inappropriate material on TV. When you try to access a program which is blocked, “PROTECTED PROGRAM by ...” message appears on the TV screen. V-CHIP SET UP Make sure ... -
Page 21: Mpaa Rating Set Up
MPAA RATING SET UP Follow steps 1 to 3 in the “V-CHIP SET UP” section on page 20. Select your desired item Using [K / L] point to your desired item, then press [ENTER] to select [BLOCK] or [VIEW]. Selection Rating Category Explanations General Audience Parental Guidance suggested. -
Page 22: C Mts (Multi-Channel Television Sound) System
MTS (Multi-Channel Television sound) SYSTEM This unit have a feature that allows for reception of sound other than the main audio program. This feature is called Multi-channel Television Sound (MTS). You can listen or record mono audio sound, stereo sound, or Secondary Audio Program (SAP). CHECKING THE SELECTED MTS MODE By pressing [DISPLAY], the status shown below will appear on the display when you play a VHS... -
Page 23: Selecting The Mts System
SELECTING THE MTS SYSTEM You can select the MTS output mode for recording or watching the program, also the audio output mode for playing cassettes. WHEN RECEIVING AN MTS BROADCAST Press [AUDIO] repeatedly to select the MTS output mode. • The output mode changes as described below every time you press the button. -
Page 24: Two Different Tape Speeds
This unit will operate with any cassette that has the high-quality tapes. Do not use poor quality or damaged tapes. PRECAUTIONS • Avoid moisture. Moisture condensation may occur on the tape if it is moved from a cold place to a warm place or vice versa. -
Page 25: C Playback
NORMAL PLAYBACK Make sure ... • The unit must be turned on. Insert a prerecorded tape If the erase-prevention tab has been removed, the unit will start playback automatically. To begin playback Press [PLAY O]. To stop playback Press [STOP C]. NOTES: •... -
Page 26: C Special Playback
Make sure ... • The unit must be turned on. • Insert a prerecorded tape. RENTAL PLAYBACK This function enables you to improve the picture quality when playing back worn cassettes such as rented tapes. Select “USER’S SET UP” Press [SETUP]. Using [K / L] point to “USER’S SET UP”, then press [ENTER]. -
Page 27: C Search
Make sure ... • The unit must be turned on. • Insert a tape. ZERO RETURN This function allows you to search easily a beginning point that you want to review by rewinding or fast forwarding. NOTE: • Zero Return WILL NOT work on a blank tape or a blank portion of a tape. -
Page 28: Index Search
INDEX SEARCH This feature provides a method of indexing the start- ing point so that it can be easily returned to in either fast forward or rewind mode. • The index mark will be made automatically when [RECORD] is pressed. It will also be marked at the starting point of Timer recording and OTR. -
Page 29: C Recording
Make sure ... • The unit must be turned on. • Insert a cassette tape with its erase-prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.) NOTES: •... -
Page 30: Otr (One Touch Recording)
OTR (One Touch Recording) This function enables you to set a recording length simply by pressing [I REC/OTR] on the unit. Make sure ... • The unit must be turned on. • Insert a cassette tape with its erase-prevention tab in place. -
Page 31: C Timer Recording
AUTOMATIC TIMER RECORDING You may set the unit to start and end a recording while you are away. You can set 8 programs to record on specific days, daily or weekly within a 1 year period. In the example below, the timer is being set to record: DATE: July 4th, 2005 SETTING TIME: from 7:30PM to 8:50PM... -
Page 32: To Cancel An Automatic Timer Recording
Set beginning hour Use [K / L] until the desired hour appears. (Example: “ 7, PM” for 7:30PM) Then press [ Set beginning minute Use [K / L] until the desired minute appears. (Example: “30” for 7:30PM) Then press [B]. Set end hour Use [K / L] until the desired hour appears. -
Page 33: Auto Return
TO CONFIRM THE TIMER SETTING 1)Press [POWER] so that the Recording indicator light goes off. 2)Press [SETUP]. 3)Confirm “TIMER PROGRAMMING” is selected. 4)Press [ENTER]. The details of programs appear on the TV screen. 5)Press [SETUP] to return to TV mode. AUTO RETURN With this feature, after timer recording is finished, the beginning of the recorded program(s) can be... -
Page 34: C On Screen Display
To check the Counter, Clock and Channel number on the TV screen, press [DISPLAY]. Each time you press [DISPLAY], the TV screen will change as follows: When the Closed Caption mode is OFF: • Counter mode: After 5 seconds, only the counter remains. -
Page 35: Dvd Section
Playable Mark (logo) discs DVD-Video * 1,2,4,6,10,11 DVD-RW DVD-R * 1,3,4,5,6 7,9,10 DVD+RW DVD+R * 1,3,4,5,6,8,9,10 Audio CD * 4,6,10 CD-RW CD-R * 4,5,6,9,10 is a trademark of DVD Format/Logo Licensing Corporation. If you cannot play back a disc which bears one of the marks above, check the following notes. *1: This unit conforms to the NTSC color system. -
Page 36: C Playing A Disc
BASIC PLAYBACK Getting started ¡ Turn on the power of amplifier and any other com- ponents, if necessary. Press [POWER]. ¡ The power will turn on. Press [A OPEN/CLOSE] to open disc load- ing tray. Place the chosen disc in the tray, with the label facing up. -
Page 37: Resume
RESUME During playback, press [STOP C]. ¡ Resume message will appear on the TV screen. Press [PLAY O], playback will resume from the point at which playback was stopped. ¡ To cancel resume, press [STOP C] twice. ¡ The resume information stays on even when the power is turned off. -
Page 38: C Search Function
TRACK SEARCH There are three ways to begin playback on an Audio CD at a specific track. Using the Number buttons Press the Number buttons to enter the desired track number. ¡ Playback will start at the selected track. ¡ For single digit tracks (1-9), press a single number (eg. -
Page 39: C Special Playback Function
SPECIAL PLAYBACK FUNCTION REPEAT REPEAT is available only during playback. REPEAT TITLE / CHAPTER To activate the repeat function, press [REPEAT] during playback. ¡ The repeat mode changes as described below every time you press the button. CHAPTER TITLE (current chapter repeat) (current title repeat) NOTES: ¡... -
Page 40: C Changing The Settings
CHANGING THE SETTINGS SUBTITLE LANGUAGE The unit allows you to select a language for subtitles during DVD disc (if available) playback. Press [SUBTITLE] during playback. ¡ The subtitle language will appear on the display bar at the top of the TV screen. Press [SUBTITLE] repeatedly to select your desired subtitle language. -
Page 41: Camera Angle
CAMERA ANGLE Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the “ screen. Press [ANGLE] during playback. ¡ The selected angle will be displayed on the display bar at the top of the screen. ¡... -
Page 42: C The On-Screen Information
THE ON-SCREEN INFORMATION You can check the information about the current disc by pressing For DVD-Vs Press [DISPLAY] during playback to show current Chapter. ¡ The elapsed and remaining playing time of the current chapter will be displayed. Press [DISPLAY] again to show current Title. ¡... -
Page 43: Items
CHANGING THE DVD SET UP ITEMS CUSTOM MENU You can change the DVD player’s settings. Press [SETUP] twice in the stop mode so that the DVD SETUP menu appears. ¡ Press [L] to select “CUSTOM” then press [ENTER]. NOTE: ¡ If the menu does not appear, press [PLAY O] first, then press [STOP C]. -
Page 44: Display Setting
DISPLAY SETTING Follow steps 1 to 2 in the “CUSTOM MENU” section on page 43. Using [ ] select the below items then press [ENTER]. TV MODE: QUICK You can change certain aspects of the DVD display screens and on-screen messages on the TV screen. ¡... -
Page 45: Parental Control
PARENTAL CONTROL Parental Control limits the disc viewing that exceed your setting (with a password or playback will stop). This feature allows you to prevent discs with alterna- tive scenes from being played by your children. PARENTAL LEVEL Parental Level allows you to set the rating level of your DVD discs. -
Page 46: Troubleshooting Guide
TROUBLESHOOTING GUIDE If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the unit, con- sulting the following checklist. PROBLEM No power The unit does not respond to the remote control TV/VCR Mode Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. - Page 47 PROBLEM Sound OK, Picture Poor Picture OK, Sound Poor Timer recording is not possible Cannot go into the recording mode Playback picture is partially noisy No picture but the audio is OK in playback No operation by infrared remote control Video or color fades in and out when making a copy of a video tape Different color marks on screen...
- Page 48 DVD Mode PROBLEM No picture Disc cannot be played No sound No DTS audio is output Distorted picture Audio or subtitle language does not match the set up The camera angle cannot be changed Audio or subtitle language cannot be changed “Prohibited icon”...
-
Page 49: C Maintenance
CABINET CLEANING • Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry. • Never use a solvent or alcohol. Do not spray insec- ticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed sur- faces. -
Page 50: Electrical Specifications
GENERAL SPECIFICATIONS TV/VCR CRT: 24 inch in-line gun, 90˚ deflection tube Television system: NTSC-M Closed caption system: §15.119/FCC Video Heads: Rotary four-head Tape width: 1/2 inch Tape speed 33.40mm/sec. 16.67mm/sec. SLP: 11.12mm/sec. Tuner channel TV VHFLow: #2~#6 TV VHFHigh: #7~#13 TV UHF: #14~#69 CATV... -
Page 51: C Español
INDICE ■ INDICE ........51 ■... -
Page 52: Conexiones De Antena/Cable
30. Botón CLEAR Presione para cancelar o borrar un ajuste entrado actualmente. 31. Botón MODE Presione para llamar la pantalla de la reproducción programada o la de reproducción aleatoria en el modo de parada. Presione para llamar la pantalla de ajuste del nivel del negro o la pantalla de sonido ambiental durante la reproducción. - Page 53 CONEXIÓN A TOMAS DE ENTRADA DELANTERAS Cuando vea un programa grabado en otra fuente (videograbadora o videocámara), utilice las tomas de entrada AUDIO/VIDEO de la parte delantera de la unidad. Conecte las tomas de salida de audio/vídeo de otra fuente a las tomas AUDIO L/R y VIDEO de esta unidad.
-
Page 54: Para Mirar Un Programa De Tv
SECCIÓN DE TV/VCR FUNCIONES Y AJUSTES DE TV PARA MIRAR UN PROGRAMA DE TV Enchufe el cable eléctrico Enchufe el cable eléctrico de la unidad en un tomacorriente de CA del hogar. NOTA: • Si aparecen números en la esquina de la pantalla, presione [POWER] sin desenchufar el cable eléctrico. -
Page 55: Reproducción Básica
Seleccione el año Presione [K / L] hasta que aparezca el año deseado. (Ejemplo: “2005”) Presione [ Seleccione la hora Presione [K / L] hasta que aparezca la hora deseada. (Ejemplo: “5”, “PM”) Presione [ Seleccione los minutos Presione [K / L] hasta que aparezcan los minutos deseados. -
Page 56: Limited Warranty
FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
