Sylvania SRCD5670 Instruction Manual

SRCD5670 English (371 x 210mm) 17 July 2010 /L

SAFETY INSTRUCTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

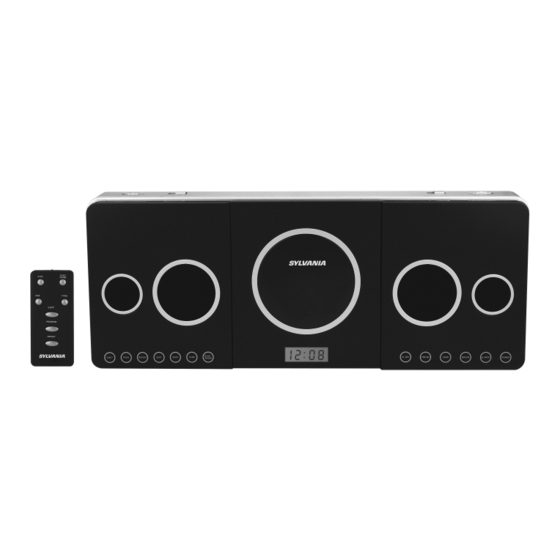

Micro System CD Player
with Clock Radio
MODEL: SRCD5670
LASER SAFETY: This unit employs a laser. Only qualified service
personnel should attempt to service this device due to possible eye
injury.
CAUTION: USE OF CONTROLS, ADJUSTMENTS OR
PERFORMANCE PROCEDURE HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty
for this product.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment
if an unauthorized change or modification is made.
INFORMATION:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
INSTRUCTION MANUAL
no guarantee that interference will not occur in a particular installation.
Operating Instructions
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
READ THIS INSTRUCTION MANUAL BEFORE
CONNECTING OR OPERATING THIS
APPLIANCE. SAVE THIS INSTRUCTION
• Consult the dealer or an experienced radio/TV technician for help.
MANUAL FOR FUTURE REFERENCE.
Before using the unit, be sure to read all operating instructions
carefully. Please note that these are general precautions and may
not pertain to your unit. For example, this unit may not have the
capability to be connected to an outdoor antenna.
1.
CAUTION
RIKS OF ELECTRIC
2.
SHOCK
DO NOT OPEN
3.
4.
DANGEROUS VOLTAGE:
5.
The lightning flash with arrowhead symbol, within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of
6.
sufficient magnitude to constitute a risk of electric
shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle
7.
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
DANGER:
Invisible and hazardous laser radiation when open
and interlock failed or defeated. Avoid direct
exposure to beam.
8.
9.
10. Protect the power cord from being walked on or pinched
11. Only use attachments/accessories specified by the
12. Use only with the cart, stand, tripod,
13. Unplug this apparatus during lightning storms or when
that to which the
receiver is connected.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
Read these instructions. apparatus has been exposed to rain or moisture does not
All the safety and operating instructions should be read before operate normally, or has been dropped.
the product is operated. 15. Power source.
Keep these instructions. This product should be operated only from the type of power
The safety and operating instructions should be retained for source indicated on the marking label. If you are not sure of the
future reference. type of power supply to your home, consult your appliance
Heed all warnings. dealer or local power company. For products intended to operate
All warnings on the product and in the operating instructions from battery power, or other source, refer to the operation
should be adhered to. instructions.
Follow all instructions. 16. Power lines.
All operating and use instructions should be followed.
An outside antenna system should not be located in the vicinity
Do not use this apparatus near water. of overhead power lines or other electric light or power circuits,
Do not use this product near water and moisture, for example: or where it can fall into such power lines or circuits. When
near a bathtub, washbowl, kitchen sink or laundry tub; in a wet installing an outside antenna system, extreme care should be
basement; or near a swimming pool. taken to keep from touching such power lines or circuits as
Clean only with dry cloth. contact with them might be fatal.
Unplug this product from the wall outlet before cleaning. Do 17. Overloading.
not use liquid cleaners or aerosol cleaners. Use a dry cloth for
Do not overload wall outlets and extension cords as this can
cleaning.
result in a risk of fire or electric shock.
Do not block any ventilation openings. Install in accordance
18. Object and liquid entry.
with the manufacturer's instructions.
Never push objects of any kind into this product through
Slots and openings in the cabinet and in the back or bottom are openings as they may touch dangerous voltage points or short
provided for ventilation, to ensure reliable operation of the out parts that could result in fire or electric shock. Never spill
product and to protect it from overheating. These openings must or spray any type of liquid on the product.
not be blocked or covered. The openings should never be 19. Outdoor antenna grounding.
blocked by placing the product on a bed, sofa, rug or other If an outside antenna is connected to the product, be sure the
similar surface. This product should never be placed near or over
antenna system is grounded so as to provide some protection
a radiator or heat source. This product should not be placed in a
against voltage surges and built up static charges. Section 810
built-in installation such as a bookcase or rack unless proper
of the National Electric Code ANSI/NFPA 70 provides
ventilation is provided or the manufacturer's instructions have information with respect to proper to grounding of the mast and
been adhered to. supporting structure, grounding of the lead-in wire to an antenna
Do not install near any heat sources such as radiators, heat discharge product, size of grounding conductors, location of
registers, stoves, or other apparatus (including amplifiers) antenna-discharge product, connection to grounding electrodes
that produce heat. and requirements for the grounding electrodes.
Do not defeat the safety purpose of the polarized or
20. Service.
grounding-type plug. A polarized plug has two blades with
Do not attempt to service
one wider than the other. A grounding type plug has two
this product yourself as
blades and a third grounding prong. The wide blade or the
opening or removing
third prong are provided for your safety. If the provided plug
covers may expose you
does not fit into your outlet, consult an electrician for to dangerous voltage or
replacement of the obsolete outlet. other hazards. Refer all
servicing to qualified
particularly at plugs,
service personnel.
convenience receptacles, and the point where they exit from
21. Replacement parts.
the apparatus.
When replacement parts are required, be sure the service
technician uses replacement parts specified by the manufacturer
manufacturer.
or those that have the same characteristics as the original parts.
PORTABLE CART WARNING Unauthorized substitutions may result in fire or electric shock
bracket, or table specified by the (symbol provided by RETAC)
or other hazards.
manufacturer, or sold with the apparatus. 22. Safety check.
When a cart is used, use caution when Upon completion of any service or repairs to this product, ask
moving the cart/ apparatus combination
the service technician to perform safety checks to determine
to avoid injury from tip-over
that the product is in proper operation condition.
An appliance and cart combination should be
23. Wall or ceiling mounting.
moved with care. Quick stops, excessive force and uneven
The product should be mounted to a wall or ceiling only as
surfaces may cause the appliance and cart combination to
recommended by the manufacturer.
overturn.
unused for long periods of time. To protect your product from
a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
24. Damage requiring service.
Unplug this product from the wall outlet and refer service to
qualified service personnel under the following conditions.
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the
product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the
operating instructions.
Adjust only those controls that are covered by the
operating instructions, as an adjustment of other controls
may result in damage and will and require extensive work
by a qualified technician to restore in the product to its
normal operation.
e) If the product has been dropped or the cabinet has been
damaged.
f) When the product exhibits a distinct change in
performance-this indicates a need for service.
25. Note to CATV system installer.
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
NOTE: Refer all servicing to qualified service personnel.
Servicing is required when the unit has been damaged in any way
such as the following: the power-supply cored or plug has been
damaged, liquid has been spilled into the unit, the unit has been
exposed to rain or moisture, the unit has been dropped or the unit
does not operate normally.
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE
UNIT
(NEC SECTION 810-20)
ELECTRIC SERVICE
EQUIPMENT
GROUNDING CONDUCTOR
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
