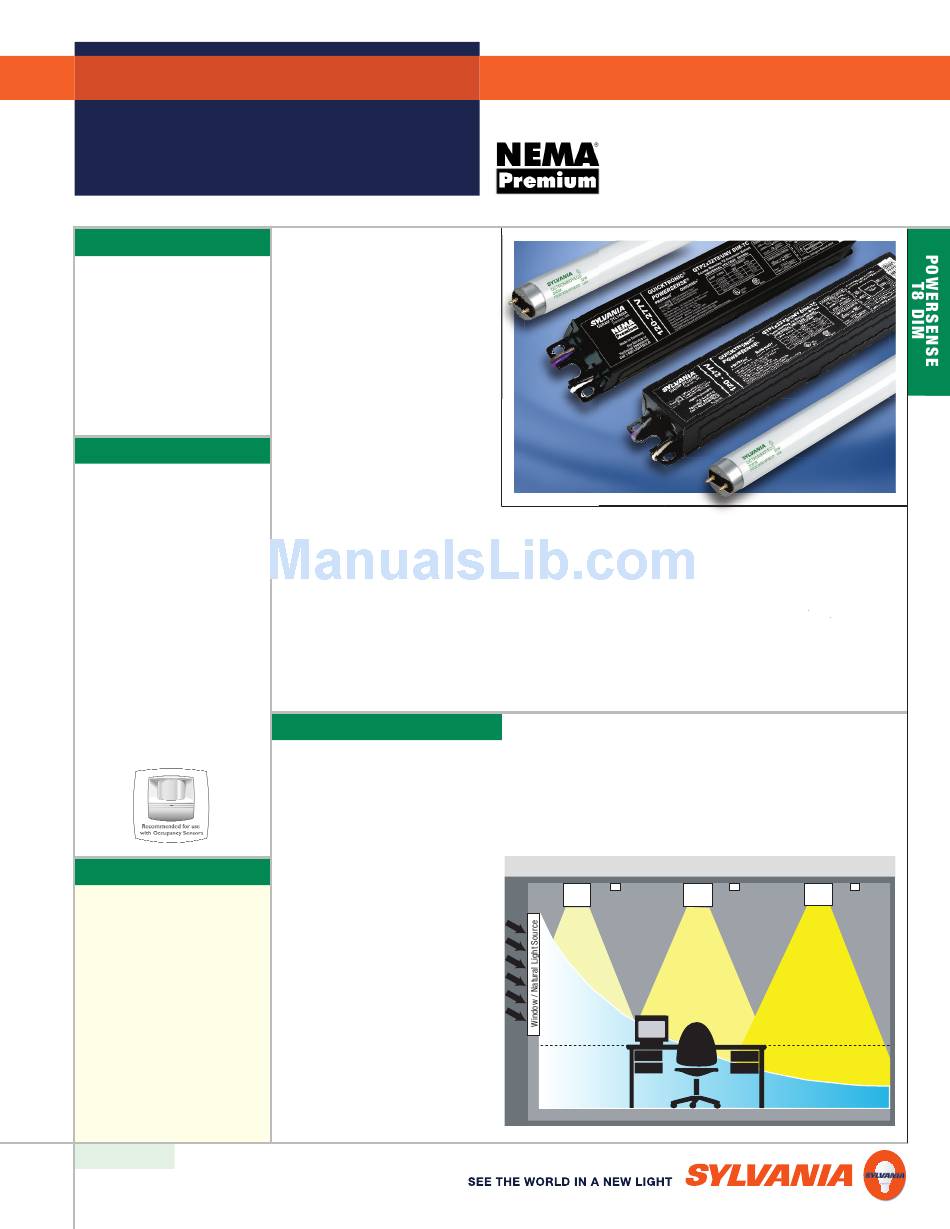

QUICKTRONIC ®
Dimming Universal Voltage
High Efficiency Series

Lamp / Ballast Guide

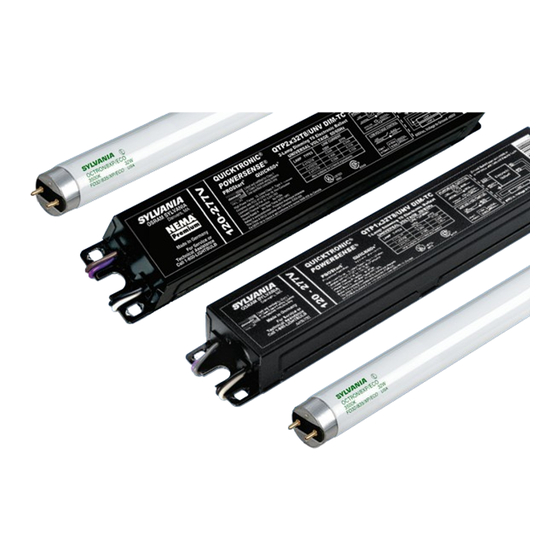

32W T8 - SYLVANIA OCTRON ®
1-lamp QTP1x32T8/UNV DIM
2-lamp QTP2x32T8/UNV DIM
3-lamp QTP3x32T8/UNV DIM
4-lamp QTP4x32T8/UNV DIM
Primary Lamp Types
FO32, FBO32 & FBO31
Also operates:
FO25, FO17, FBO24 & FBO16

Key System Features

• Industry's first ballast that combines
dimming inputs from 0-10V and/or
two-wire AC dimming providing
maximum flexibility.
• POWERSENSE compatibility with low
voltage and power line dimmers
• High Efficiency
• NEMA Premium Ballast compliant
• Lamp Detection Technology
• Universal voltage (120-277V)
• 100 - 5% Dimming Range
• PROStart ® Programmed Rapid Start
• Anti-flash circuitry - turns on in
dimmed mode
• Lightweight and low profile
• Operates at >42kHz
• QUICK 60+ ballast and lamp warranty

Application Information

SYLVANIA QUICKTRONIC
POWERSENSE ballast
is ideally suited for:
• Occupancy sensors
• Daylight harvesting
• Energy management
• Load shedding
• Commercial
• Retail
• Hospitality
• Institutional
• Schools
• New construction
• Retrofit
ECS061R6 – 1/2010
POWERSENSE ® T8
SYLVANIA QUICKTRONIC High Efficiency,
POWERSENSE T8 ballasts offer several
advantages:
1. Wide Dimming Range: operate linear
fluorescent T8 lamps over a 100-5%
dimming range and provide true versa-
tility in controls selection.
2. Industry's Most Adaptable Dimming
Ballast: ballasts feature micro-controller
technology for compatibility with:
• low voltage controls
• power line dimmers
• any line voltage from 120V to 277V
3. Unmatched Performance: patented
lamp detection technology that virtually
eliminates variations in brightness from
lamp-to-lamp and provides uniform
lighting throughout the dimming range.
At light levels of >75% unnecessary
lamp-coil power is turned off, delivering
energy efficiences comparable to non-
dimming Instant start electronic ballast.
This technology also eases installation
and troubleshooting by recognizing
failed lamps, faulty wiring or loose

System Information

QUICKTRONIC POWERSENSE ballasts
operate from standard low voltage
(0-10VDC) fluorescent controllers or
compatible 2-wire power line fluorescent
dimmers, making them ideal for individual
office lighting or automated building
applications, both in new construction
and retrofit projects.
For the individual office or conference
room, installation can be streamlined by
using a 2-wire power line dimmer; elimi-
nating the need for additional control wires.
For more advanced systems, such as
daylight harvesting or building automation
applications, standard low voltage devices
(0-10VDC, Class 1 or 2) are used to control
the lighting system. In this daylight
harvesting example, each lighting fixture
(or fixture row) is controlled by it's own
photosensor; regulating the light output to
connections, and shutting down. When
the problem is corrected, the system
restarts automatically.
4. NEMA Premium Ballast (NPB) program
compliant. The NPB program promotes
the use of high efficiency T8 electronic
ballasts by meeting or exceeding the
Ballast Efficiency Factors, (BEF) estab-
lished by the CEE, (Consortium for
compensate for changes in natural
daylight. Depending upon the specific
application, energy savings of up to 60%
compared to fixed output T8 electronic
systems can be realized.

Daylight Harvesting Scenario

Fixture
Light Sensor 1
1
Electronic T8
Fluorescent Controllable

Lighting Systems

Energy Efficiency). For additional
information on this program go to:
www.cee1.org or www.nema.org
Setting the standard for quality, QUICK-
TRONIC POWERSENSE ballasts are
covered by our QUICK 60+ ® warranty,
the first and most comprehensive lamp
& ballast system warranty in the industry.
All QUICKTRONIC POWERSENSE ballasts
include a line voltage protection circuit,
which protects the ballast in the event
that line voltage is inadvertently applied
to the low voltage control inputs.
Fixture
Fixture
Light Sensor 2 Light Sensor 3
3
2
Desired Illuminance E r
Constant setpoint value
