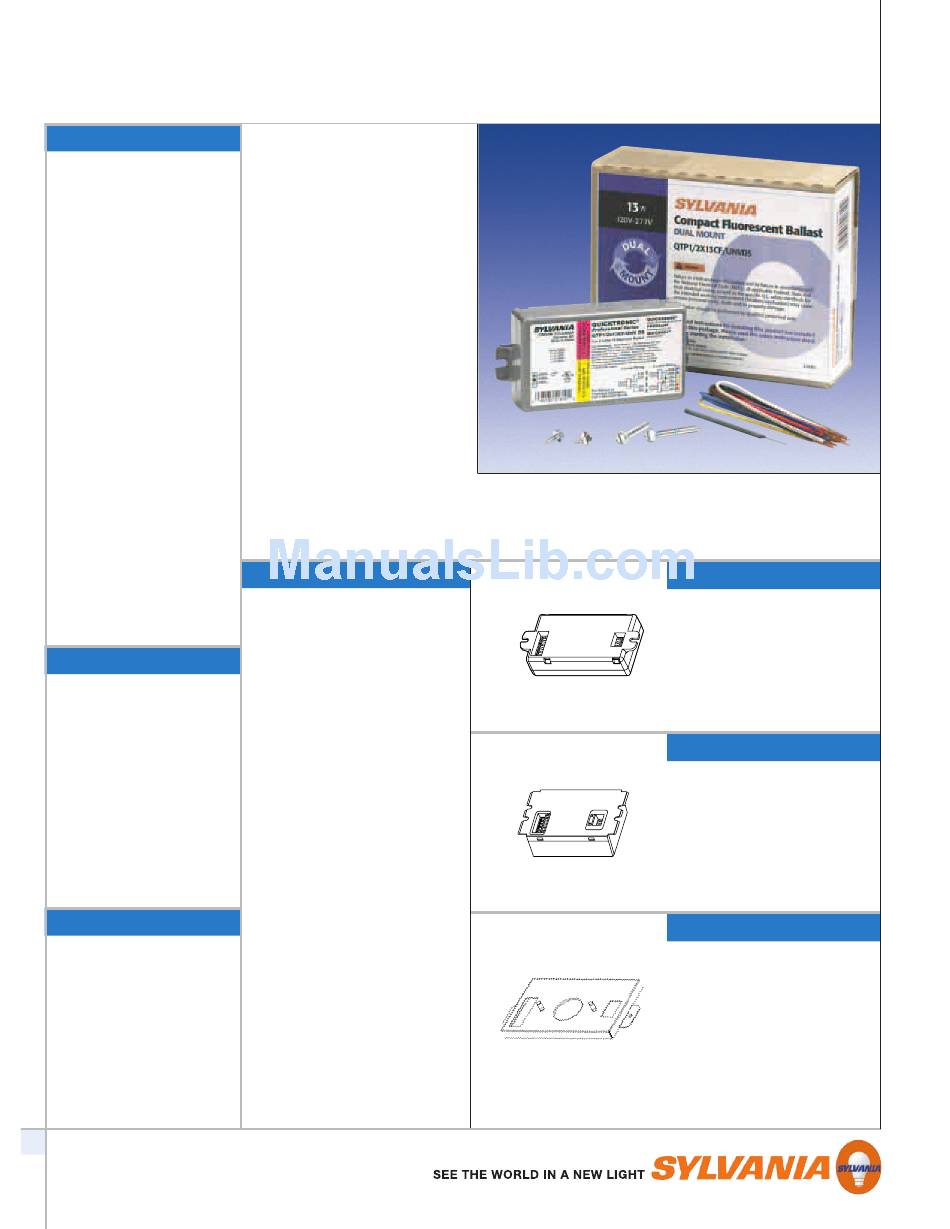

Sylvania QUICKTRONIC T4 User Manual

<10% THD Electronic T4 Compact Fluorescent Systems
QUICKTRONIC
Professional Series

Lamp/Ballast Guide

Primary Systems

13W T4 – DULUX D/E, T/E
1-lamp or 2-lamp
QTP1/2x13CF/UNV DS
18W T4 – DULUX D/E, T/E
1-lamp or 2-lamp
QTP1/2x18CF/UNV DS
26W T4 – DULUX D/E, T/E
1- or 2-lamp
QTP2x26/1x42/32CF/UNV DS
32 or 42W T4 – DULUX T/E
2-lamp QTP2x26/32/42CF/UNV DM
1-lamp QTP2x26/1x42/32CF/UNV DS
57W or 70W T4 – DULUX T/E
1-lamp QTP2x26/32/42CF/UNV DM
For other lamp types, refer to the
Performance Guide section on the
next page.

Key System Features

I Universal Input Voltage
I PROStart
® Ballasts
I QUICKSENSE
® Ballast Technlgy.
I High Power Factor
I Low Harmonic Distortion
I Small size and lightweight
I Metal or plastic enclosure
I UL, CSA, FCC
I QUICK 60+ warranty
I Dual-Mounting option

Application Information

SYLVANIA
QUICKTRONIC CF
is ideally suited for:
I Recessed Downlights
I Wall Sconces
I Ceiling Fixtures
I Commercial
I Retail, Hospitality, Institutional
56
® CF – UNIVERSAL DUAL MOUNT
SYLVANIA QUICKTRONIC CF
operates DULUX ® D/E and T/E
lamps with full lumen output and
optimal system performance.
QUICKTRONIC CF Dual-Mount
features low profile, lightweight
enclosures to provide simple
assembly for any fixture appli-
cation. Mounting screws are
provided with the ballast to
enable either a bottom-mount or
a top-mount installation. A wiring
kit and an extraction tool is
provided for ease of installation.
A separate mounting bracket is
available that allows these
electronic ballasts to replace
magnetic-style CFL ballasts.
Universal Input Voltage
(120–277V) and multi-lamp
multi-watt capability allow for
fewer SKUs to support a wide
range of applications.

System Information

PROStart ® programmed rapid
start is the optimum starting
method, providing up to
100,000 switching cycles for
use on occupancy sensors and
building control systems.
QUICKSENSE ® end of lamp life
sensing technology helps to
protect against overheated
bases and sockets, as well as
cracking of the glass wall.
QUICKSENSE ballast
technology uses dynamic
end-of-lamp-life sensing to
avoid false shutdowns caused
by some static sensing
methods and will auto-reset
when the end-of-life lamps are
replaced with new ones.
QUICKTRONIC CF comes with
wire-trap connectors for quick
and easy installation.
A complete OSRAM SYLVANIA
System Performance Guide
showing performance
characteristics of lamps and
ballasts is available upon
request.
Setting the standard for quality,
QUICKTRONIC CF is also
covered by our QUICK 60+ ®
warranty, the first and most
comprehensive system warranty
in the industry.

Plastic Enclosure Styles (S)

DS = Dual Mount for recessed
downlight fixtures or ceiling
and wall sconce installation

Metal Enclosure Styles (M)

DM = Dual Mount for recessed
downlight fixtures or ceiling
and wall sconce installation
Mounting Bracket (51814)
