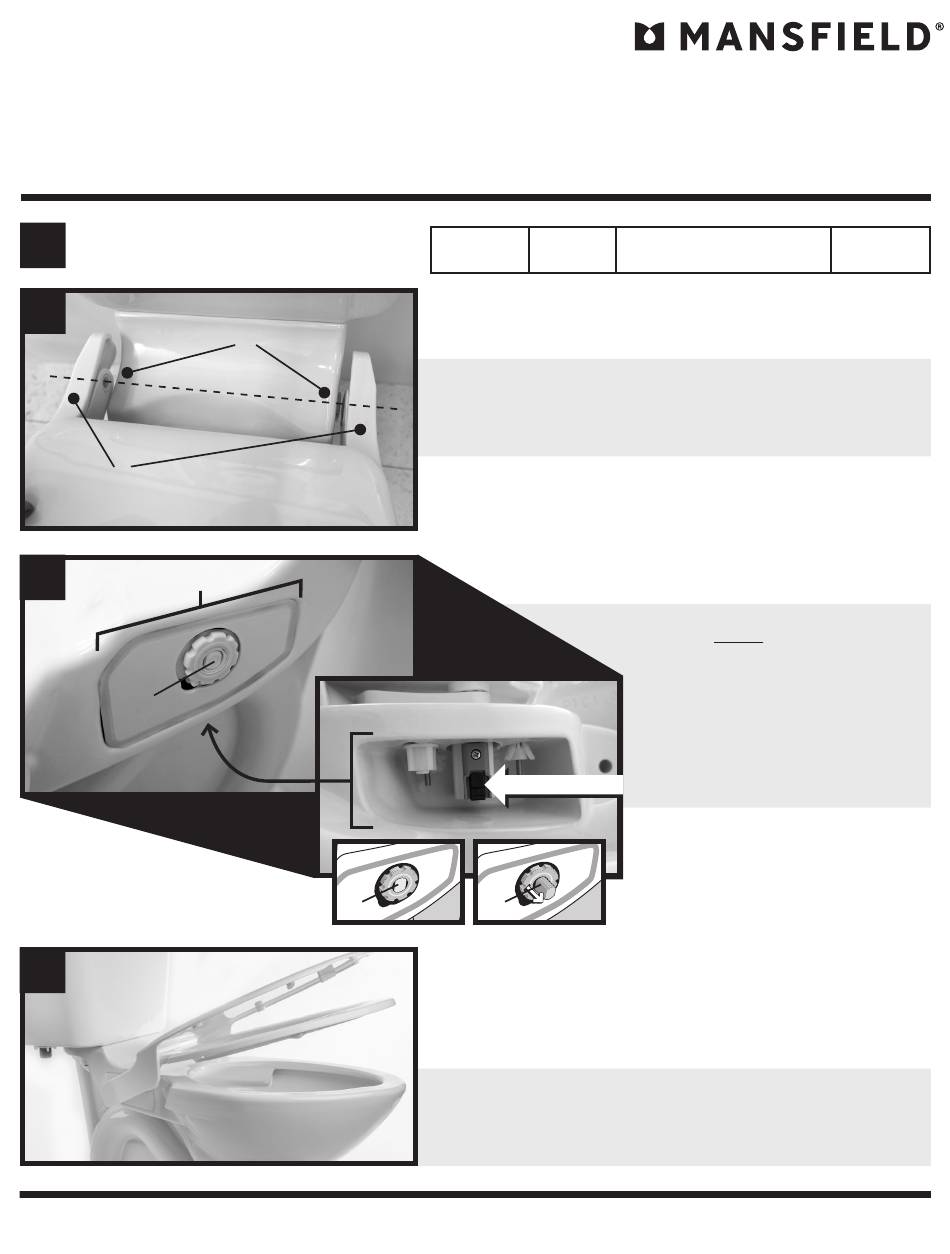

Mansfield Vanquish Quick Install Instructions

VANQUISH
SEAT QUICK-INSTALL INSTRUCTIONS
1.
Remove the seat unit from the packaging.
2.
A
3.
B (side view)
C
4.
www.mansfieldplumbing.com | 877-850-3060
®
Your Mansfield Vanquish toilet comes with the seat's side hinge assembly
pre-installed. Mounting the seat unit to the bowl's side hinge assembly is
the only installation required.
B
B (under view)
C
Parts Key: A
- Seat Arm
Place the seat unit on the toilet bowl, aligning the seat arms
(A) with the pre-mounted hinge assembly on the bowl (B).
Hinge Rod Release Button
C
Hinge rod
release button
found under
Hinge rod
hinge assembly
release button
found under
hinge assembly
Test for proper installation of the seat unit by raising the
seat and cover, releasing them and allowing the slow close
feature to lower them back down to a closed position.
B
- Side Hinge Assembly
(pre-installed)
Reaching under the side hinge
assembly on each side of the
seat and bowl, depress the black
button in the assembly mechanism
to release the hinge rod (C) and
secure the hinge assembly to
the seat arm.
If the hinge rods do not immediately
engage with the seat assembly,
gently maneuver the seat up/ down/
forward/backward to line up the hole
and allow the hinge rods to engage
fully (you will hear a click). If the hinge
rod accidentally extends outside of
the seat assembly, simply push it back
in and begin again.
U.S. Patent No. 9809967
