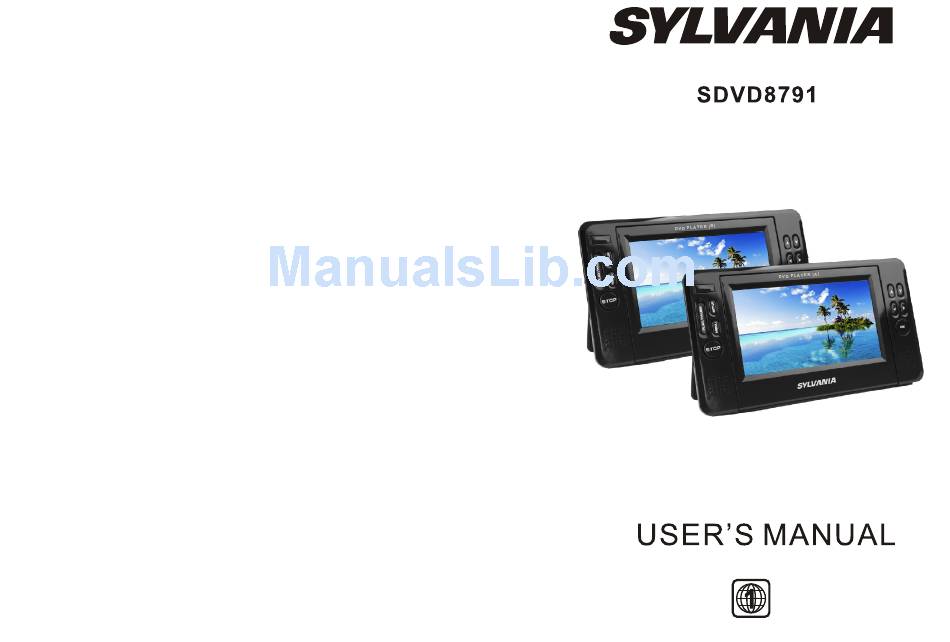

Sylvania SDVD8791 User Manual

Sylvania dvd player user manual.
Hide thumbs

   Related Manuals for Sylvania SDVD8791

   Summary of Contents for Sylvania SDVD8791

  • Page 2: Table Of Contents

    Table Of Contents Safety Precaution Introduction Package Main Unit Controls The Remote Control System Connection Basic operation Unit A System Setup Unit B System Setup Specification Troubleshooting Safety Precaution Thank you for choosing our portable DVD player. It includes a 7” wide screen and a DVD player.

  • Page 3: Introduction, Package

    Introduction Your portable DVD player plays digital video discs that conform to the universal DVDVideo standard. With it, you can play movies with true cinema picture quality and stereo or multi-channel sound (depending on disc and play back set-up).Y ou can also select sound track, subtitle languages, and different angle of view (again depending on DVD disc).

  • Page 4: The Remote Control

    The Remote Control Remote control for A unit 11. Zoom ( To zoom in or zoom out the 1. Number button scene when playing ) 2. TITLE ( To display title information) 12. Menu (To enter or exit menu page) 3.

  • Page 5: System Connection

    The Use of Remote Control Please put the battery into the remote control as per below illustration CR2025 When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres.

  • Page 6: Connect Additional Equipment

    DC IN 9-12V AV OUT AV IN A unit DC IN 9-12V AV OUT B unit Connecting DC Adaptor 1. Connect the AC adapter cable to: the DC IN jack on the A unit or B unit . The power outlet DC IN 9-12V AV OUT AV IN...

  • Page 7: Basic Operation

    Basic Operation MPEG4 SVCD Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3 1. After connecting power to the unit, turn on the unit with the ON/OFF switch. 2. Open the disc tray and place a disc into the tray with the label side facing up. 3.

  • Page 8

    Repeat playing of favorite scene MPEG4 SVCD When playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3, user can repeatedly play a specific section. During playback, press “A-B” button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between A-B Press it the third time, the unit will return to normal playback.

  • Page 9: Unit A System Setup

    Unit A System Setup Press”Setup”button,the main menu will be displayed on the screen In the General Setup Page, Press --General Setup Page-- item. TV Display Wide Press OK button to access. TV Type NTSC Press button to select the setting. Angle Mark Press OK button to confirm your selection.

  • Page 10: Unit B System Setup

    Preference page Audio: Enter this option,user can select your preferred audio --Preference Page-- language for DVDs,The default is English. Audio English Note French Subtitle The audio language depend on the material on each disc. German Disc Menu Italian User can also change the audio language during playback Parental by pressing the Audio button.

  • Page 11: Preference Page

    Enter this option, user can adjust picture quality of video output. There are items available to be adjusted: Brightness, contrast, Hue and Saturation. For all these items the default is 00 Password Setup Page Enter this option,you can set a password(four numbers). All parental Control features are password protected.

  • Page 12: Specification, Troubleshooting

    Specification Compatible disc: DVD/VCD/CD/Mp3/MPEG4 Signal system: PAL/NTSC Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 10 W Operating temperature: 0~40°C...
