8

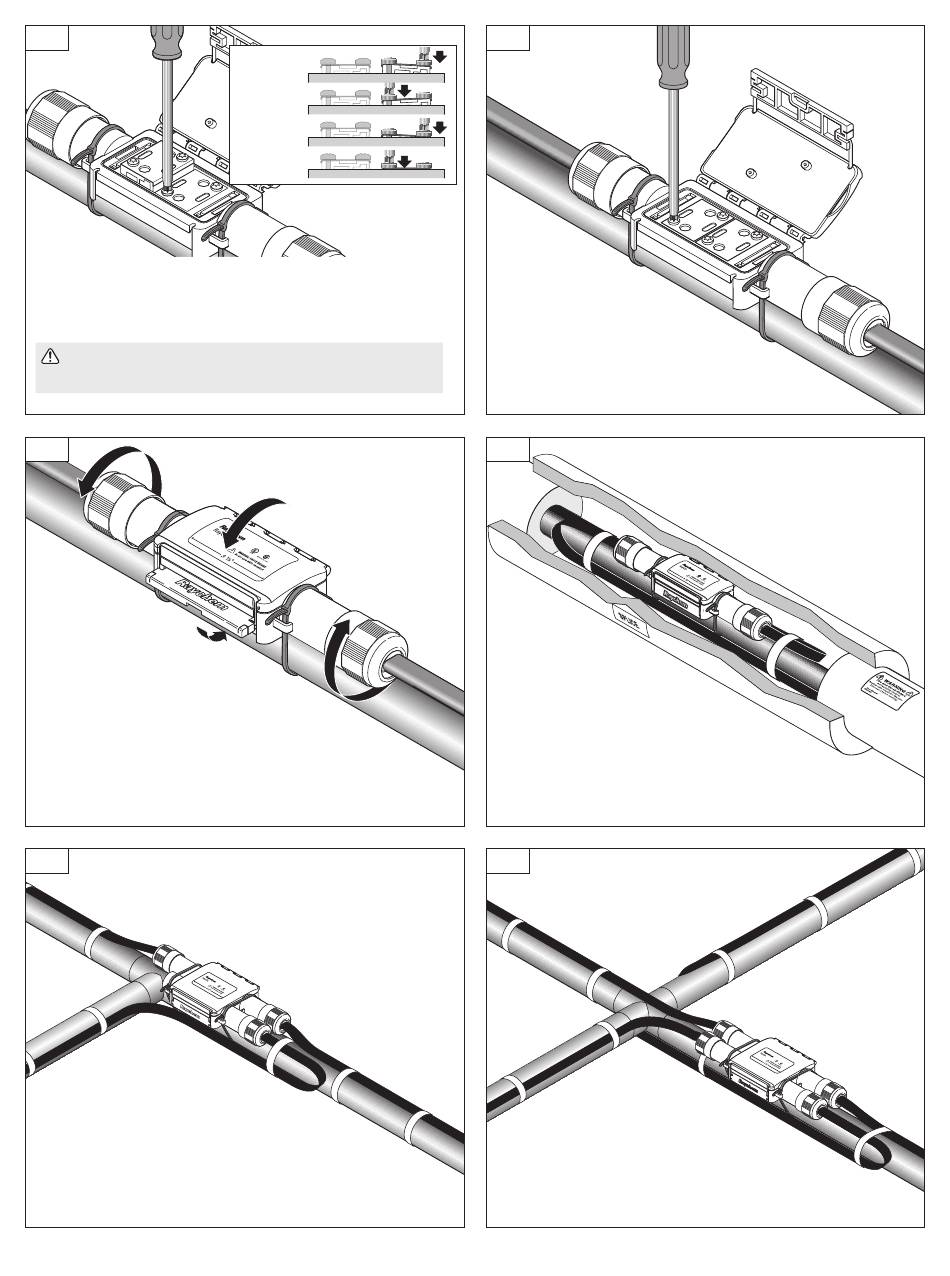

• Securely tighten the two connection screws, alternating
as they are being tightened.
WARNING: Fire hazard. Loose screws can cause
excessive heating. Be sure screws are fully tightened.
10
• Close the lid and snap the lever
shut. Do not force lid closed. If lid does
not close, check the connection to ensure
all screws are fully tightened.
• Tighten the nuts on the heating cable entries until
grommets are compressed.
11B
TEE
• Using glass cloth tape,
attach heating cable to pipe.
• Apply insulation, cladding, warning
labels and yellow splice identification label.
Tighten the
screws until
the metal top
surface is at
the same
height as the
inner clear
plastic
module.
(insulation not shown)
9
• Repeat steps 2 through 7 for all
remaining heating cable entries.
11A
• Using glass cloth tape,
attach heating cable to pipe.
• Apply insulation, cladding, warning
labels and yellow splice identification label.
11C
CROSS
(insulation not shown)
• Using glass cloth tape,
attach heating cable to pipe.
• Apply insulation, cladding, warning
labels and yellow splice identification label.
SPLICE
